HERO SPLENDOR iSMART+ - Brake Wear Indicators; Front Brake Wear Indication

43

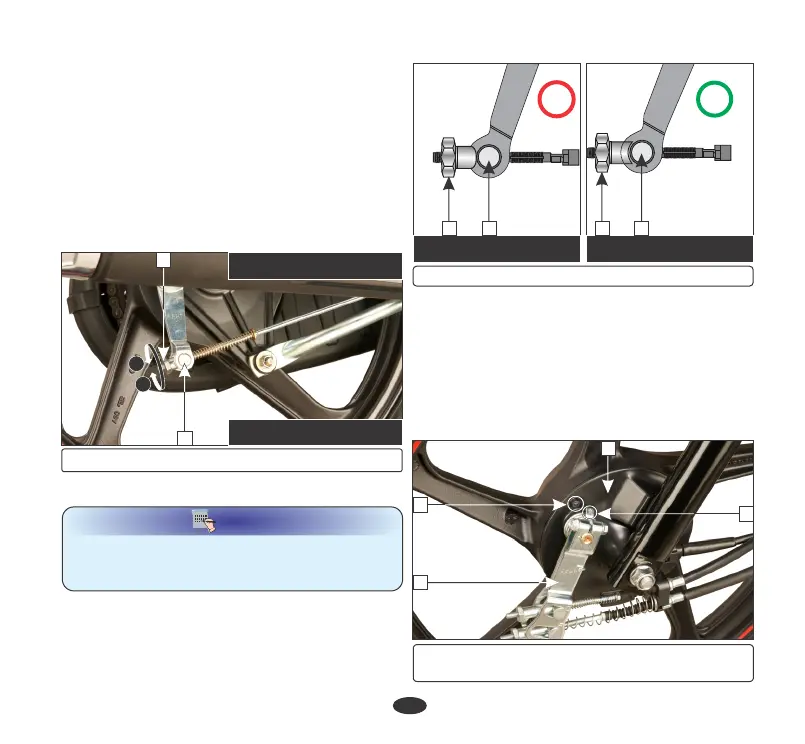

(3) Adjusting nut (4) Brake joint pin
ü
X
(A) Cut-out not seated (B) Cut-out seated
3
44
3
CW- Clockwise, ACW- Anticlockwise
(3) Adjusting nut (4) Brake joint pin
3
4
A
B
(A) Decrease free play (CW)
(B) Increase free play (ACW)
•
Make sure that the cut-out on the adjusting
nut is seated on the brake joint pin (4) after
the final adjustment has been made.
Free play (2) should be 20-30 mm.
•
Apply the brake several times and check for
free wheel rotation when released.
•
Measure the brake pedal (1) free play
before the brake starts to take hold.
Ÿ If adjustment is necessary, turn the rear
brake adjusting nut (3).
NOTE
If proper adjustment cannot be obtained by
this method, visit your Authorised Hero
MotoCorp workshop.
Front brake wear indication
When the brake is applied, an arrow (1),
(e) Brake wear indicators
fixed to the brake arm (2), moves towards a
reference mark (3) on the brake panel (4). If
the arrow aligns with the reference mark on
full application of the brake, the brake shoes
must be replaced.
3
4
(1) Arrow (2) Brake arm
(3) Reference mark (4) Brake panel
1
2
