HERO Super Splendor - Parts Function; Ignition Switch

10
The engine can be started, Turn signal lamps,
Horn, Tail/Stoplamp and Passing Switch can be
operated. Fuel Gauge and Pass lamp will be
functional.
Key cannot be removed
Engine cannot be started and no electrical
system will be functional.
Key can be removed
Key can be removed
Key Removal
Steering can be locked
FunctionKey Position
2
1
3
(1) Ignition switch
(2) Ignition key
(3) Steering lock position

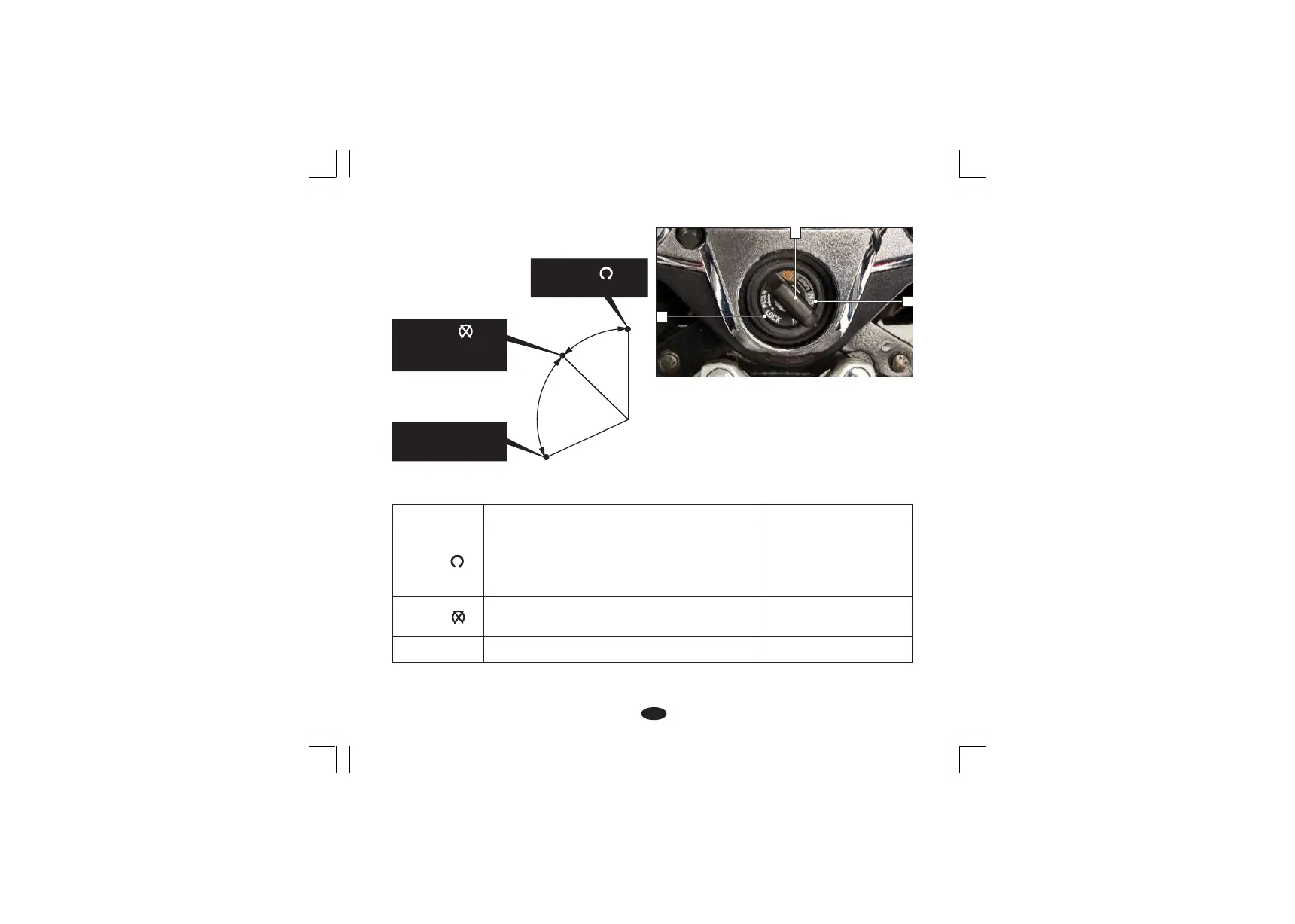

PARTS FUNCTION
Ignition switch
“LOCK”
“LOCK” Position
“ON” ( )
Position
“OFF”( )
Position/
Lock Open
“ON” ( )
“OFF”( )
