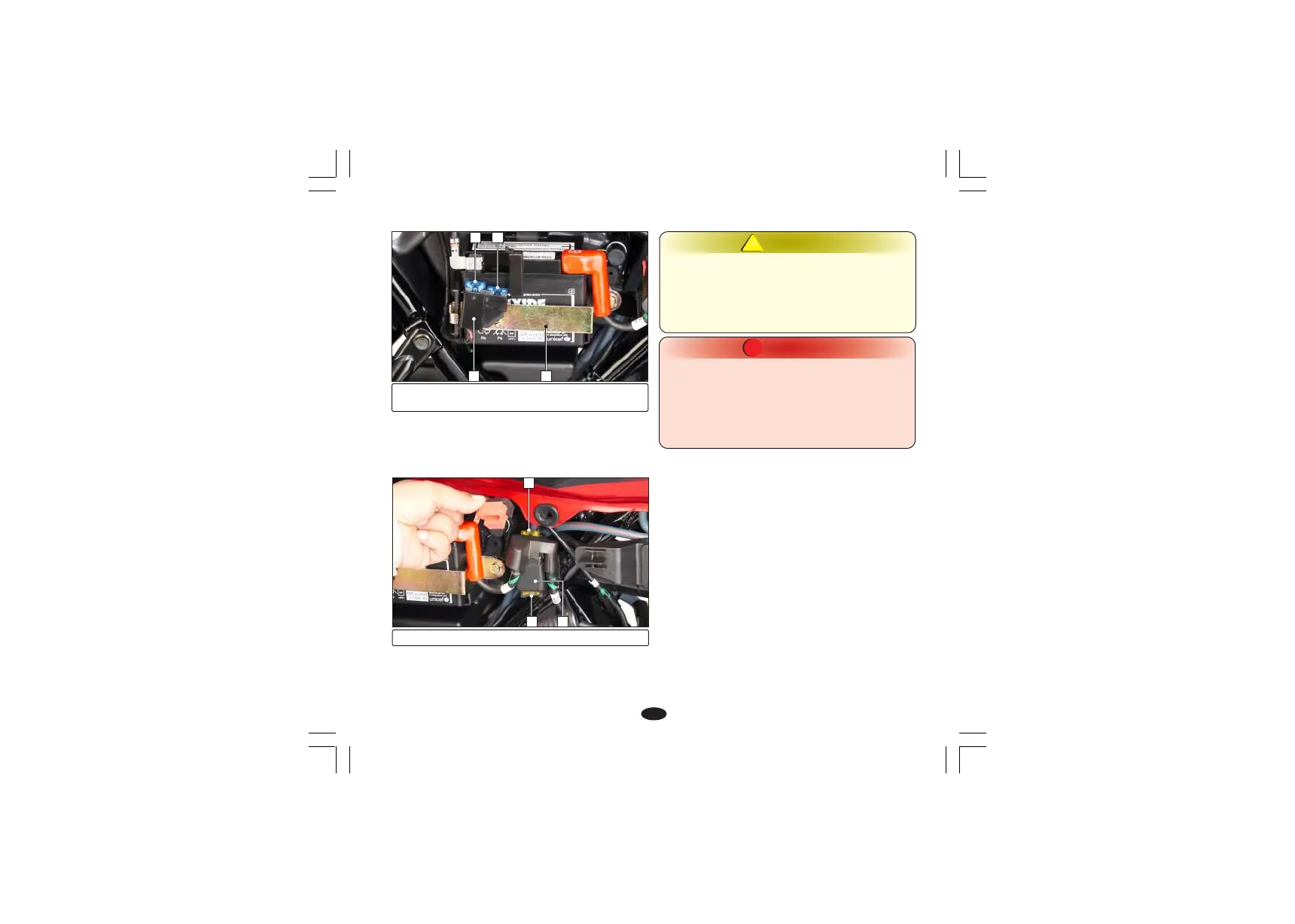

(1) Fuse box (3) In circuit fuse: 15A
(2) Battery clamp (4) Spare fuse: 15A
1
Starter Magnetic Switch (B)
Location: Inside right side cover
Fuse Type: Blade fuse
Location: Below starter magnetic switch.
CAUTION
!!
Ÿ Do not attempt to start or ride the vehicle
without a charged battery, it can cause
fusing of the bulbs and permanent damage
to certain electrical components.
Ÿ Turn the ignition switch "OFF" before
checking or replacing the fuse to prevent
accidental short-circuiting.
(1) In circuit fuse: 20A (2) Spare fuse: 20A
2 B
WARNING
!!
Ÿ Never use a fuse with a different rating from
that specified. It may lead to serious damage
to the electrical system or a fire due to short
circuit.
Ÿ Battery gives off explosive gases. Keep
sparks, flames & cigarettes away.
Stop lamp switch
The stop lamp switch (1) must be adjusted so
that stop lamp will glow when rear brake is
applied. Rear brake free play (page 42)
should be adjusted before performing stop
lamp switch adjustment. The procedure for
adjusting stop lamp switch is as follows :
Ÿ Turn the ignition switch to the “ON”
position.
Ÿ Turn the adjusting nut (2) to position stop
lamp switch at a point where the stop lamp
will glow just before the brake pedal is
depressed to the limit of its free play.
3 4
2
1
