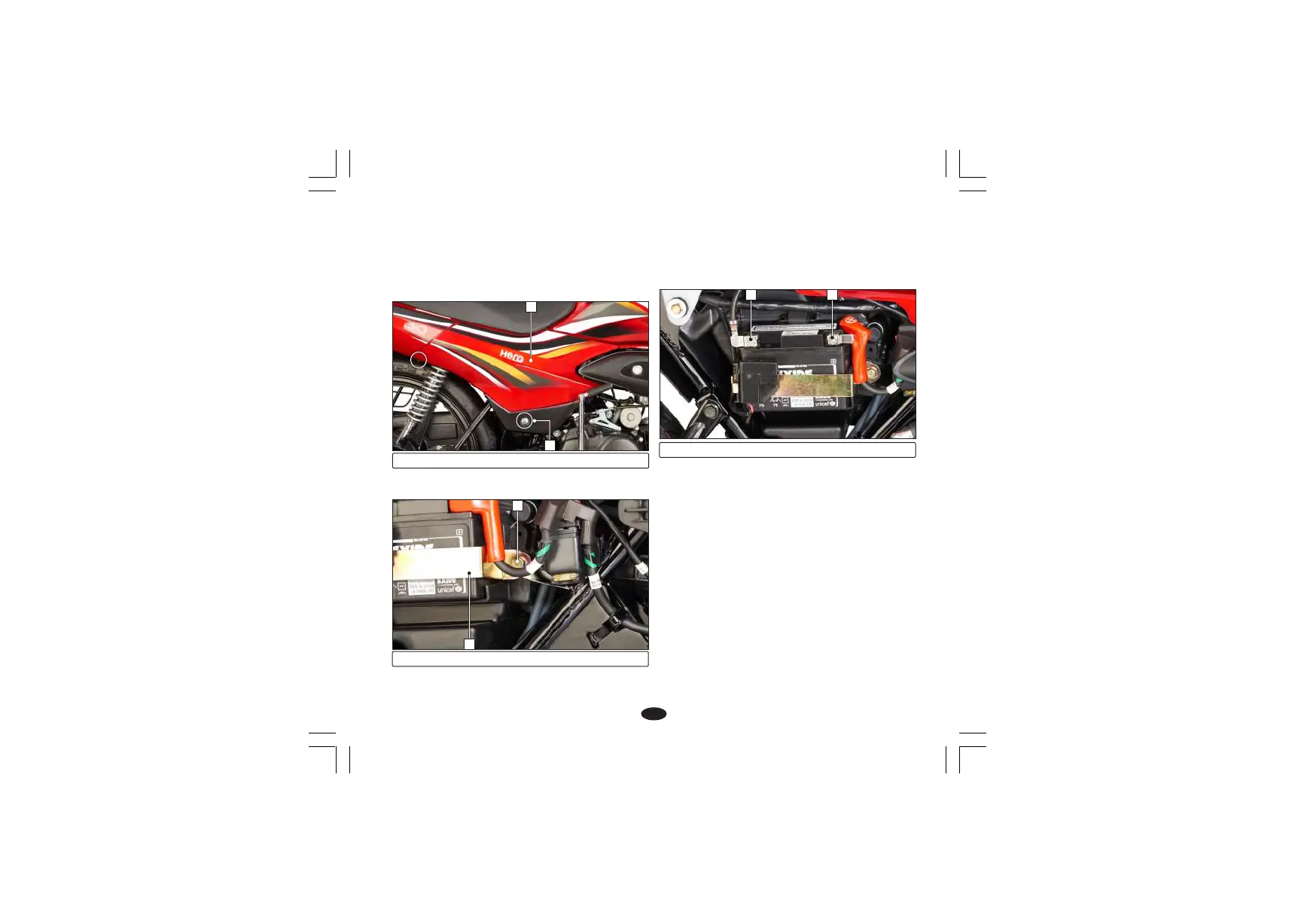

(5) (-)ve terminal (6) (+)ve terminal
(1) Right side cover screws (2) Side cover
Battery removal
Ÿ Make sure the ignition switch is "OFF"
Ÿ Remove the seat (page 18).
Ÿ Remove the right side cover screws (1) and
remove the side cover (2).
Ÿ Remove the battery clamp bolt (3) and the
battery clamp (4).
Ÿ Disconnect the negative (-)ve terminal lead
(5) from the battery first, then disconnect
the positive (+)ve terminal lead (6).
Ÿ Pullout the battery from the battery box.
2
(3) Battery clamp bolt (4) Battery clamp
4
3
5 6
Battery installation
Ÿ Reinstall in the reverse order of removal. Be
sure to connect the positive (+)ve terminal
first, then the negative (-)ve terminal.
Ÿ Check all bolts and other fasteners are
secured.
48
Fuse replacement
Fuse Box (1) : Location : Mounted on the
battery clamp (2).
The specified fuse is 15A (3) with a spare
fuse 15A (4).
Fuse Holder (5) Location : Over the
solenoid switch adjacent to battery.
The specified fuse is 20A (6) with a spare
fuse 20A (7).
1
