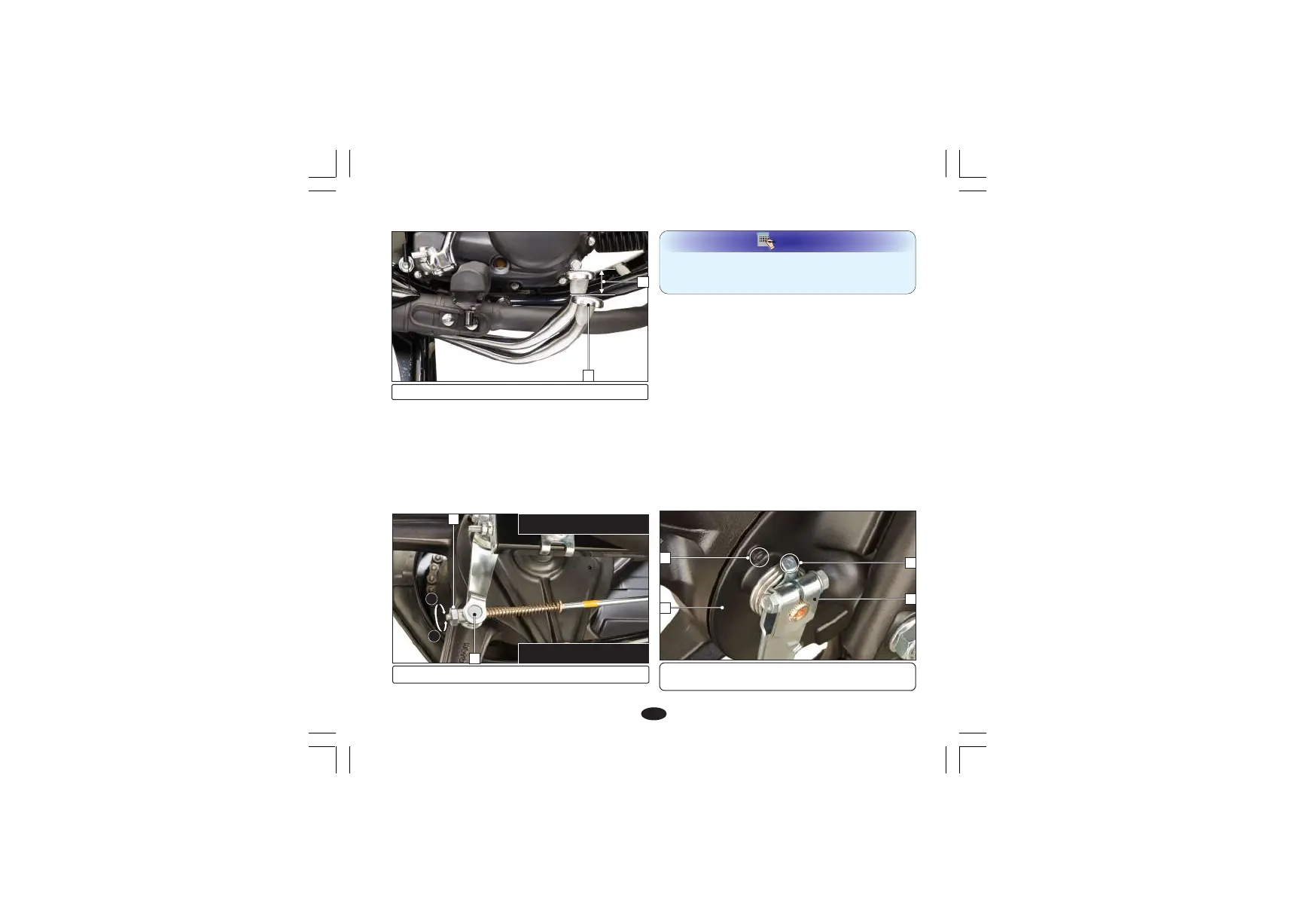

(1) Rear brake pedal (2) Free play 20-30 mm
1
Ÿ If adjustment is necessary, turn the rear
brake adjusting nut (3).
Ÿ Make sure that the cut-out on the adjusting
nut is seated on the brake joint pin (4) after
the final adjustment has been made.
Ÿ Apply the brake several times and check for
free wheel rotation when released.
(3) Adjusting nut (4) Brake joint pin
4
A
B
3
(A) Decrease free play (CW)
(B) Increase free play (ACW)
CW- Clockwise, ACW- Anticlockwise
NOTE
If proper adjustment cannot be obtained by
this method, visit your Authorised Hero
MotoCorp workshop.
Brake wear indicator inspection
When the brake is applied, an arrow (1), fixed
to the brake arm (2), moves towards a
reference mark (3) on the brake panel (4). If the
arrow aligns with the reference mark on full
application of the brake, the brake shoes
must be replaced.
Brake wear indicator inspection
When the brake is applied, an arrow (1), fixed
to the brake arm (2), moves towards a
reference mark (3) on the brake panel (4). If the
arrow aligns with the reference mark on full
application of the brake, the brake shoes must
be replaced.
(1) Arrow (2) Brake arm
(3) Reference mark (4) Brake panel
2
1
4
3
2
