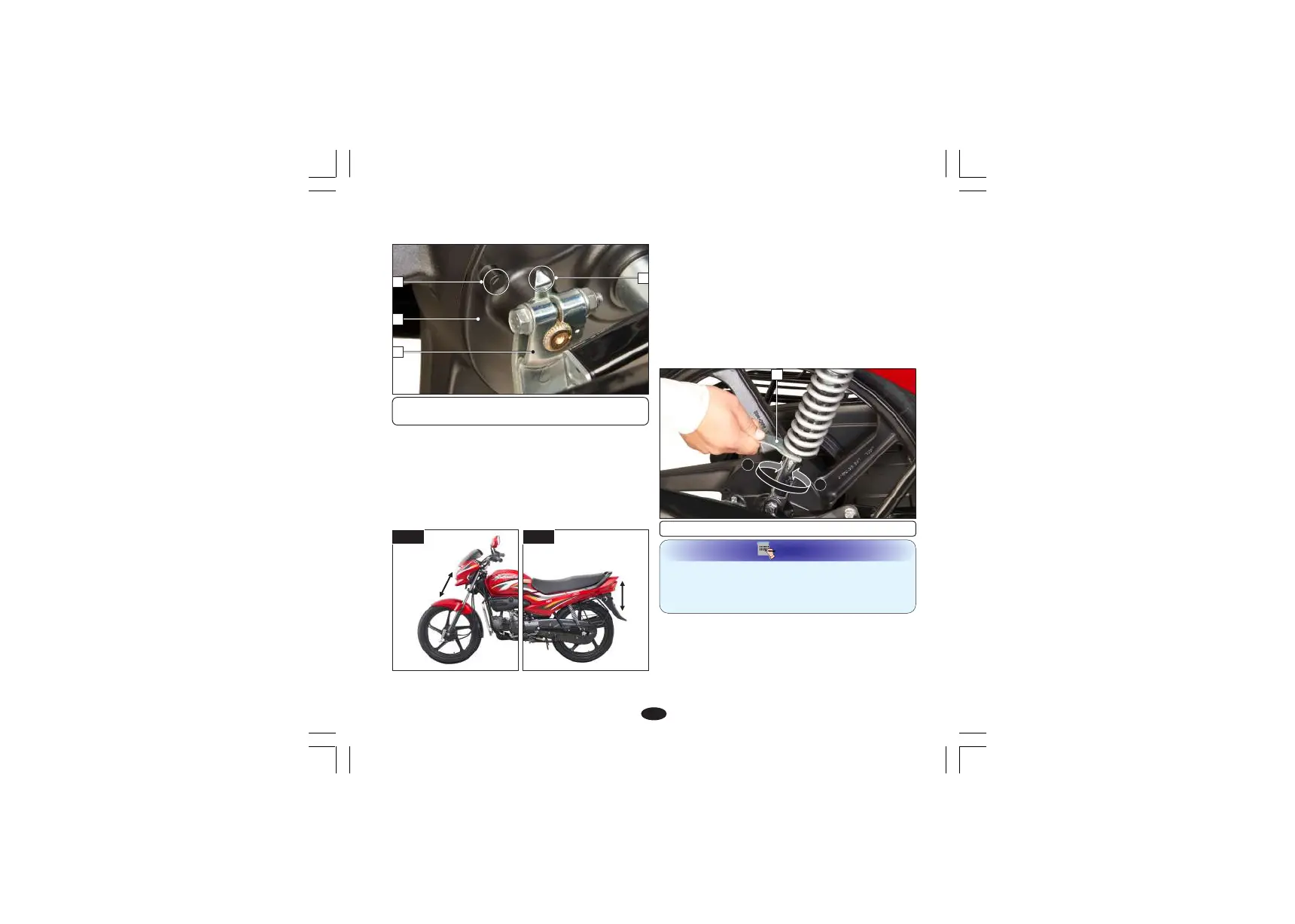

Rear brake wear indication
(1) Arrow (2) Brake arm
(3) Reference mark (4) Brake panel
3
4
2
40
Ÿ Check the rear shock absorber by pushing
hard downwards on rear grip while the
vehicle is not parked on stand. The
suspension action should be smooth and
their should be no oil leakage.
(b) Rear shock absorber adjustment
Rear shock absorber adjustment can be
made according to the load/road conditions.
Ÿ In direction A: Stiffer
Ÿ In direction B: Softer
Suspension
(a) Front and rear suspension inspection
Ÿ Check the front forks by locking the
front brake and pumping the front fork up
and down vigorously. The suspension action
should be smooth and there should be no oil
leakage.
Front Rear
B
A
1
(1) Pin spanner
NOTE
Always adjust both the rear shock absorber to
the same position. Use the rear shock absorber
adjustment tool (pin spanner) (1) available in
the tool kit.
FRONT WHEEL REMOVAL
Ÿ Raise the front wheel off the ground.
Ÿ Remove the speedometer cable (1) by
pressing the tab (2) & pulling cable out.
1
