Ÿ Rotate the front wheel & see if the
speedometer needle is working.
Ÿ Tighten the axle nut.
Axle nut torque : 5.4 kgf- m
Ÿ Adjust the brake (page 38).
Ÿ After installing wheel, apply the brake
several times and check for free wheel
rotation when released.
(10) Lug (11) Slot
45
Ÿ Disconnect the brake cable (3) from the
brake arm (4) and brake panel (5) by
removing the front brake adjusting nut (6).
Ÿ Remove the axle nut (7).
Ÿ Remove the axle (8) and side collar (9).
Ÿ Remove the wheel.
5
4
7
3
12
8
9

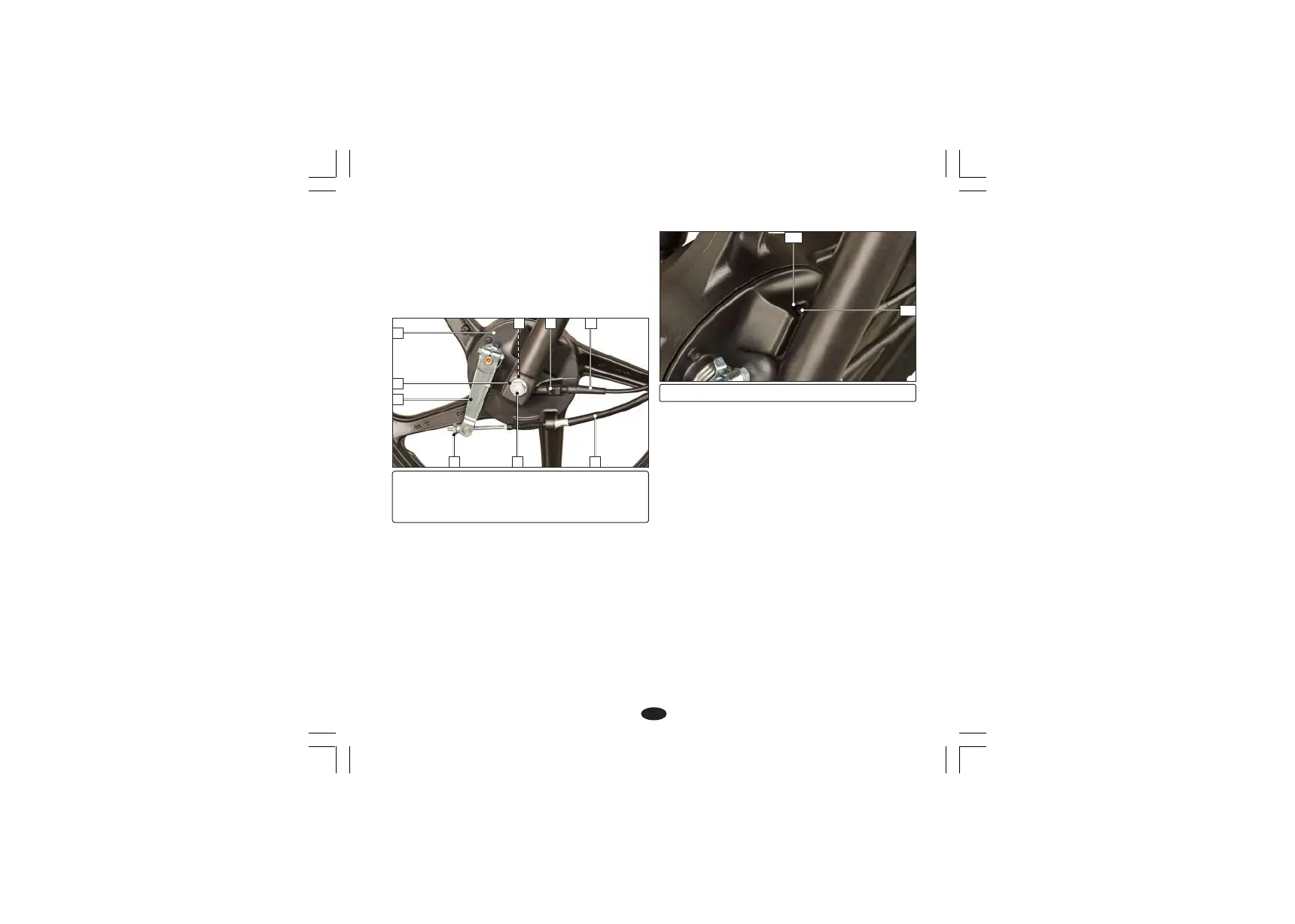

(1) Speedometer cable (2) Tab (3) Brake cable
(4) Brake Arm (5) Brake panel
(6) Front brake adjusting nut (7) Axel nut
(8) Axle (9) Side collar
Ÿ Installation
Ÿ Reverse the removal procedure.
Ÿ Install the front wheel by ensuring that the
lug (10) on the left fork is located in the slot
(11) in the brake panel.
11
10
(b) Rear wheel removal
Ÿ Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
Ÿ Remove the rear brake adjusting nut (1)
and disconnect the brake rod (2) from the
brake arm (3) by pushing down the brake
pedal. Disconnect the brake stopper arm
(4) from the brake panel (5) by removing
split pin (6) and lock nut (7).
