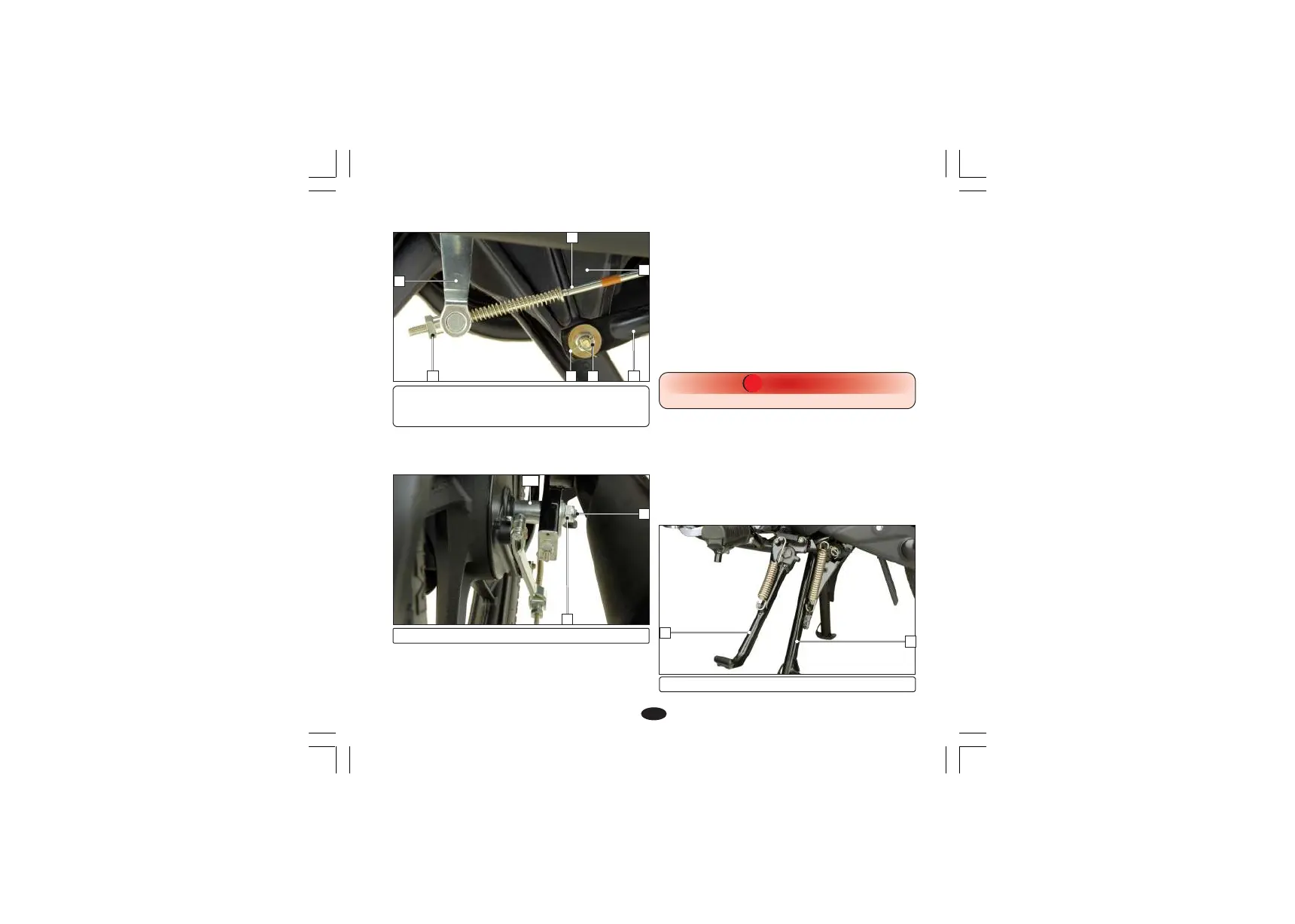

(8) Axle nut (9) Rear axle (10) Collar
8
9
46
(1) Rear brake adjusting nut (2) Rear brake
rod (3) Brake arm (4) Brake stopper arm
(5) Brake panel (6) Split pin (7) Lock nut
2
5
4761
3
Ÿ Remove the rear axle nut (8).
Ÿ Pull out the axle (9) and collar (10).
Ÿ Remove the wheel.
Installation
Ÿ Reverse the removal procedure
Axle nut torque: 5.4 kgf-m.
Brake stopper arm nut torque:
2.2 kgf-m
CAUTION
!!
Always replace used split pins with new ones.
Ÿ Adjust the brake (page 42) and drive chain
(page 37).
Ÿ After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
Main/Side stand lubrication
Ÿ Park the vehicle on the level surface.
Ÿ Check the main/side stand return spring for
damage or loss of tension.
Ÿ Check the main stand (1)/side stand (2)
for freedom of movement.
Ÿ Lubricate the side stand pivot if necessary.
Ÿ Make sure the side stand is not bent.
(1) Main stand (2) Side stand
1
10
2
