Device overview
Fig. 3: ‘Lid unlocked’ indicator
Fig. 4: ‘Lid locked’ indicator
Fig. 5: ‘Rotation’ indicator
Fig. 6: [Mains switch]
Fig. 7: [RPM/RCF] button
Symbol for the separate collection of electrical and electronic equipment, in accordance with
Directive 2012/19/EU (WEEE).
Use in European Union countries, Norway and Switzerland.

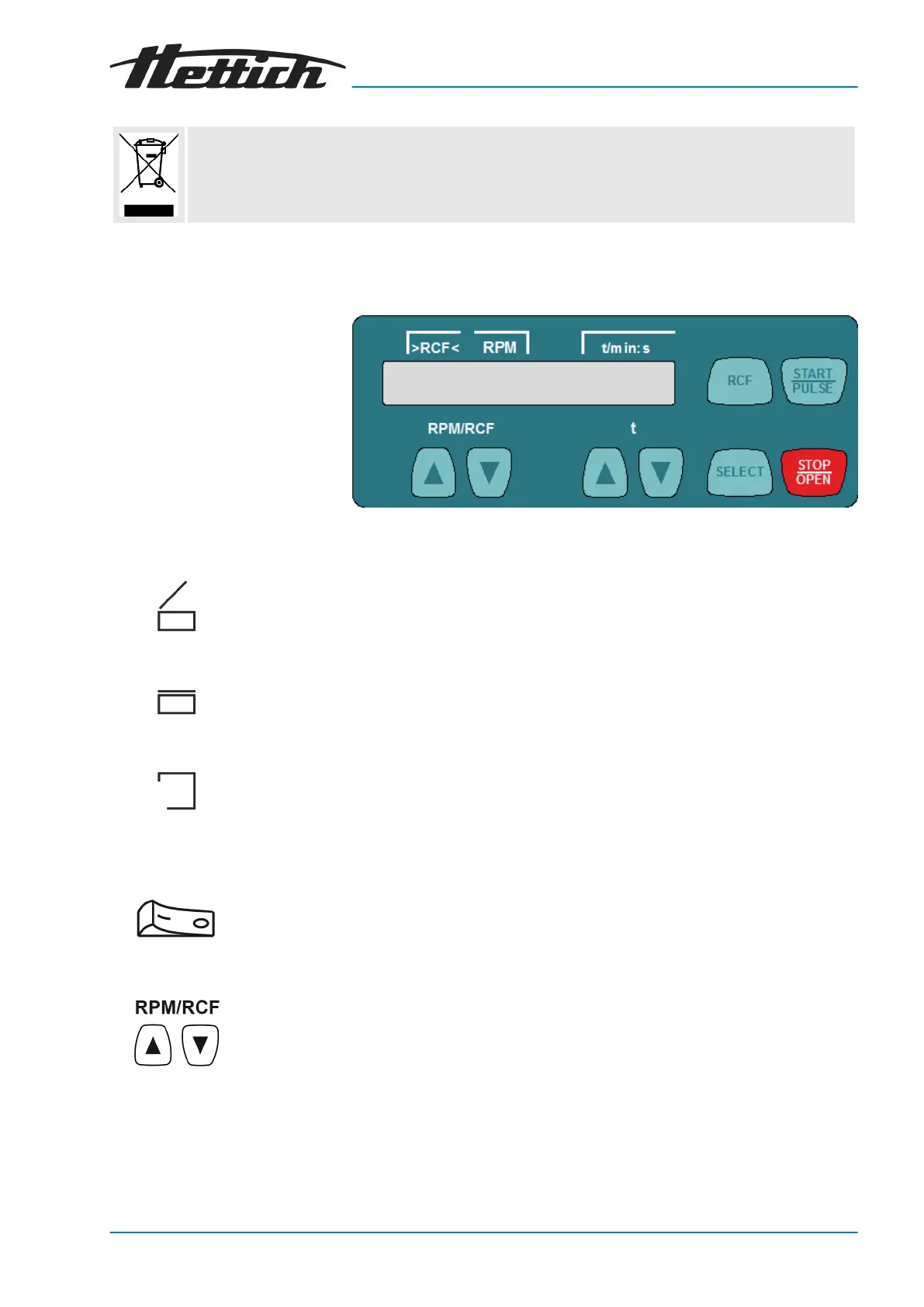

3.5 Operating and indicator elements
3.5.1 Control
Fig. 2: Control
3.5.2
Indicator elements
■
The indicator appears when the lid is unlocked.
■
The indicator appears when the lid is locked.
■
The indicator light rotates when the rotor is turning.
3.5.3 Controls
■
Switch the device on and off.
■ Enter speed.
■ The value changes at an increasing rate if the button is held down.
