Heuresis Pb200i - Extended Reading Mode

31

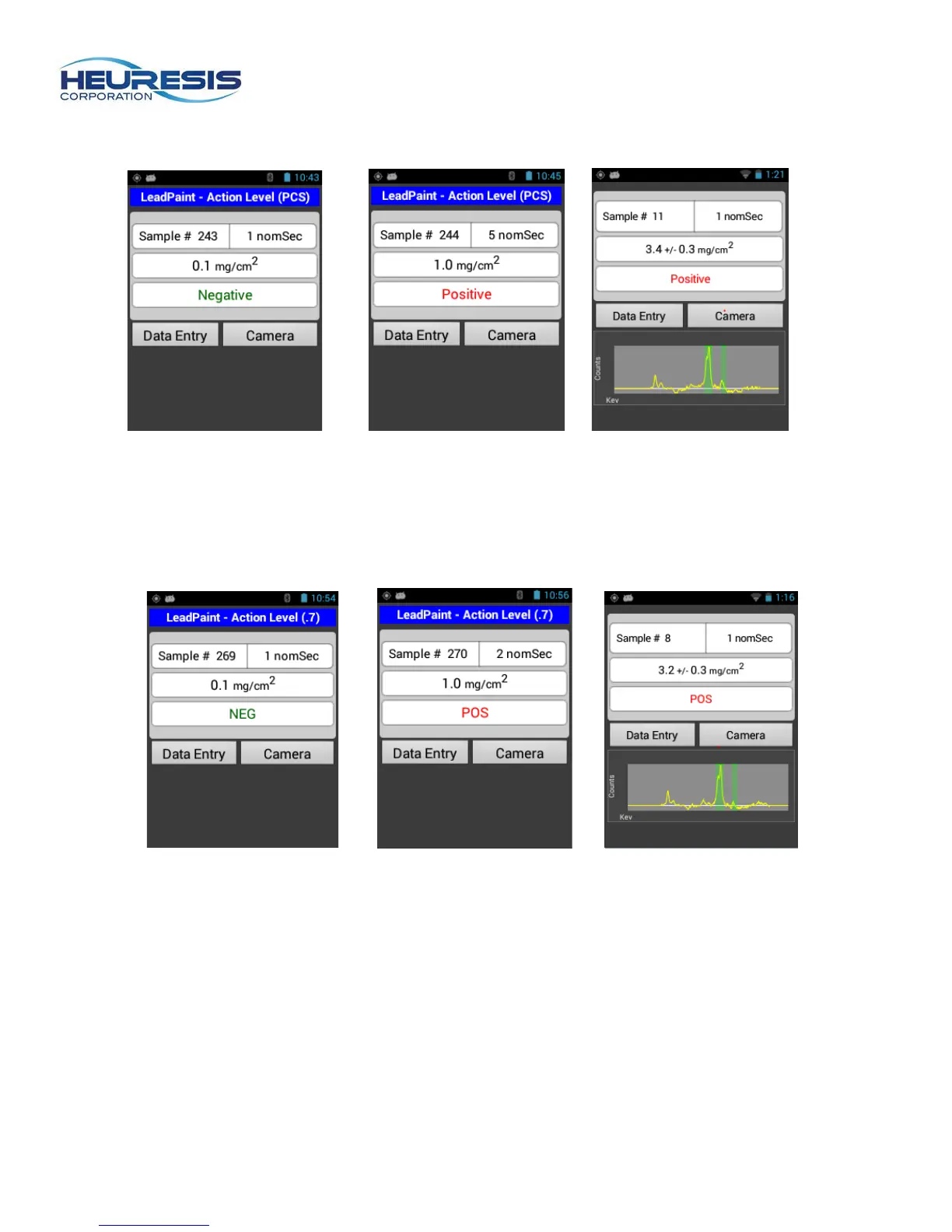

When the action level is set to 1.0 mg/cm2, the instrument will display results as shown in Figures 96 to
98.
Figure 96 Figure 97 Figure 98
When the action level is set to anything but 1.0 mg/cm2, the instrument will display as “NEG” (for
negative) and “POS” for positive. In this example, the action level has been set to .7 mg/cm2 (Figure 99 to
101):
Figure 99 Figure 100 Figure 101
Extended Reading Mode
Extended reading mode is used for occupational inspection work where the quantification of lower levels
of lead may be required. This usually entails longer reading times for the instrument. Extended Reading
Mode is broken down into four “sub” modes for the user: Stop at Set Level, Fixed Time, Unlimited Time,
and Stop at Statistics.
