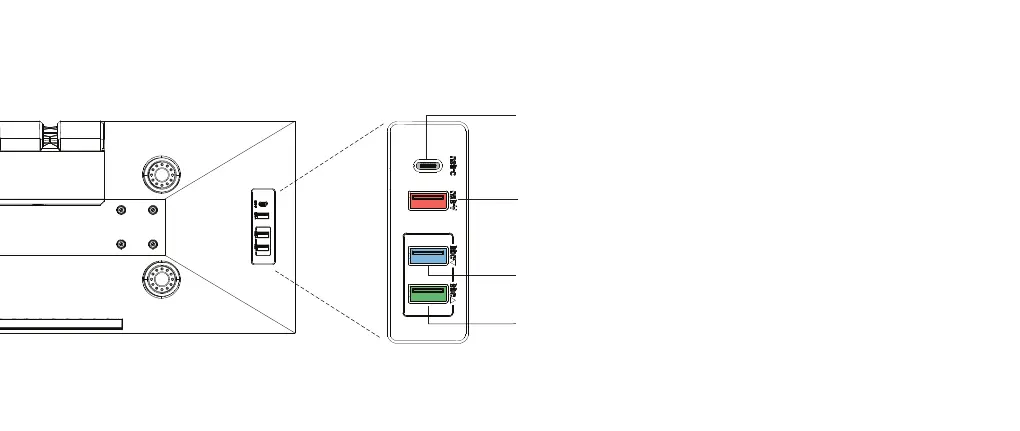

DC Power Ports
Standard USB-A Power Port / Lower Bridging Port
Output: 5V/1A. For the bridging function please see the next page for details.
Standard USB-A Power Port / Upper Bridging Port
Output: 5V/1A. For the bridging function please see the next page for details.
Quick Charge (QC) Standard USB-A Power Port
When used individually: 5V/3A ~ 9V/3A. Follow the Quick Charge power protocol.
When working together with the PD USB-C port, the max output of both ports will be
limited to 5V/2.5A.
Power Delivery (PD) Standard Type-C Power Port
When used individually: 5V/3A ~ 9V/3A. Follow the Power Delivery protocol.
When working together with the PD USB-C port, the max output of both ports will be
limited to 5V/2.5A.
