22
Data Bridging
The Studio’s data bridging function allows
you to quickly access your devices in the
chamber from the outside, such as USB
transceiver, flash storage, portable hard drive,
etc.
Bridging requires a strong anti-EMI
(Electromagnetic interference) environment
to ensure data transmission stability. Please
use Studio’s dedicated bridging cable that
comes with the box (please see p.6 for more
details).
Bridging may not work when the EMI
environment near the chamber is too
complex. Please put your bridging devices
close to the port and keep other cords away
from the bridging route.

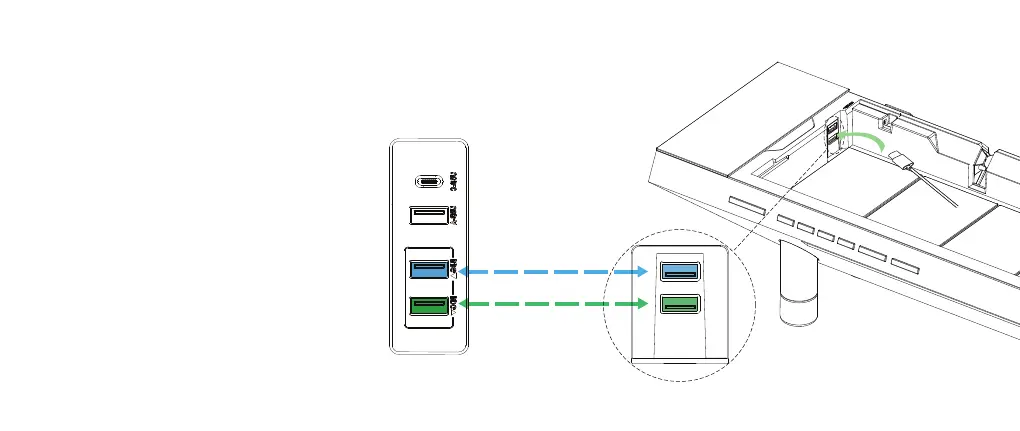

Upper USB 2.0
Bridging Ports (Blue)
Lower USB 2.0 Bridging
Ports (Green)
