2.2 Communication port
2.2.1 Optical communication

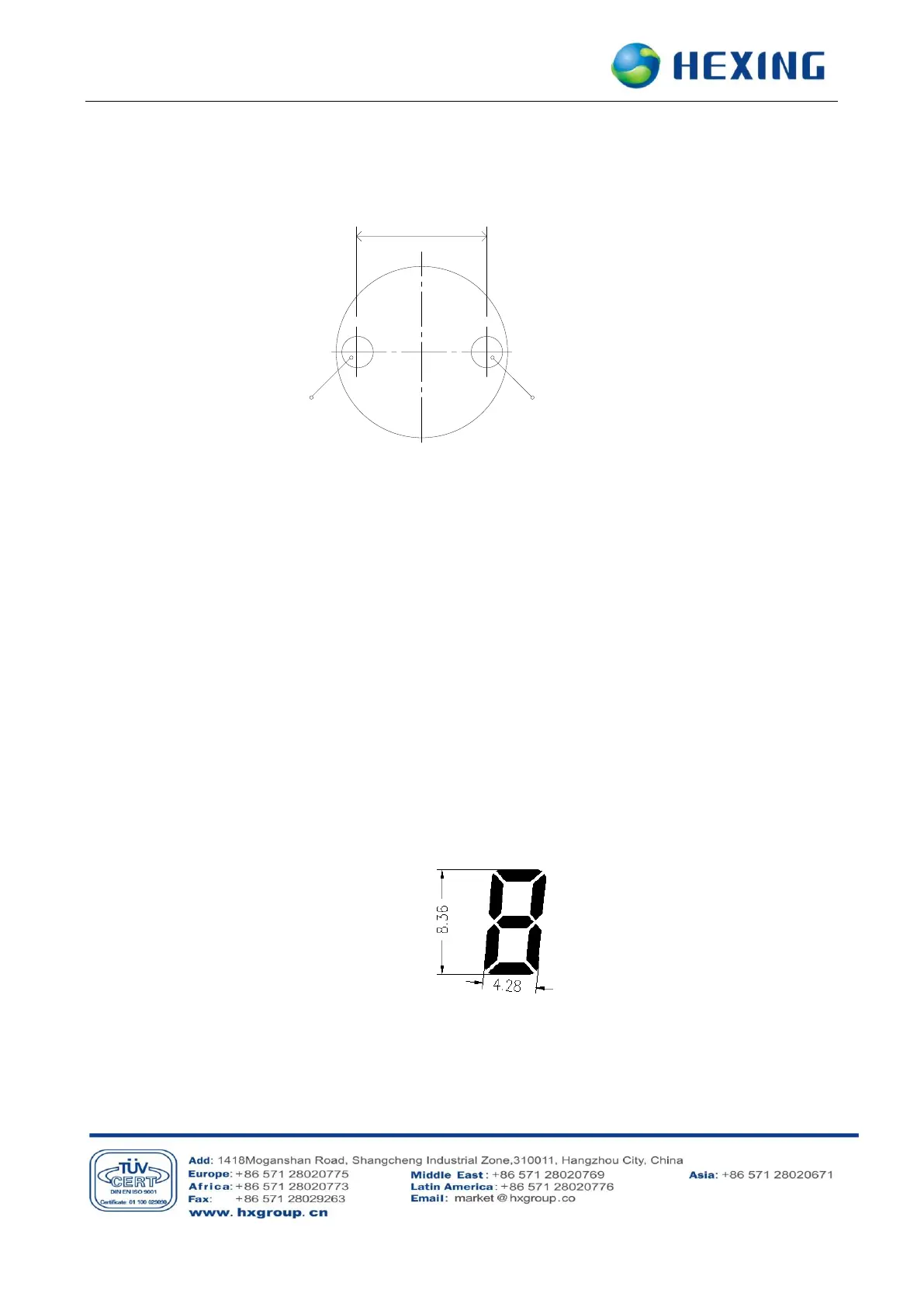

Optical port drawing
 The Optical port is in accordance with the IEC62056-21 standard
 In addition it complies with the DLMS standard (Mode E)
 The initiate baud rate is 300bps, 7 data bits, and 1 parity bit; once successful handshake is
completed the meter will then communicate at the baud rate of 9600bps, 8 data bits and
one parity bit.
 The utility is able to read meter information and configure the meters parameters via PC
software or a Hand Held Unit (HHU)
2.3 LCD display
2.3.1 Physical feature
 Size of the screen: 67.5mm x 21mm; Size of the characters: 4.3mm x8.4mm
 The LCD display consists of HTN material and provides a usable working temperature
range of between -30℃ to + 80℃.
 High contrast display
 Wide view angle
6.5±0.5mm
Infra-red emitter
Infra-red receiver
Symmetric
