User manual- HXE310-KP
37

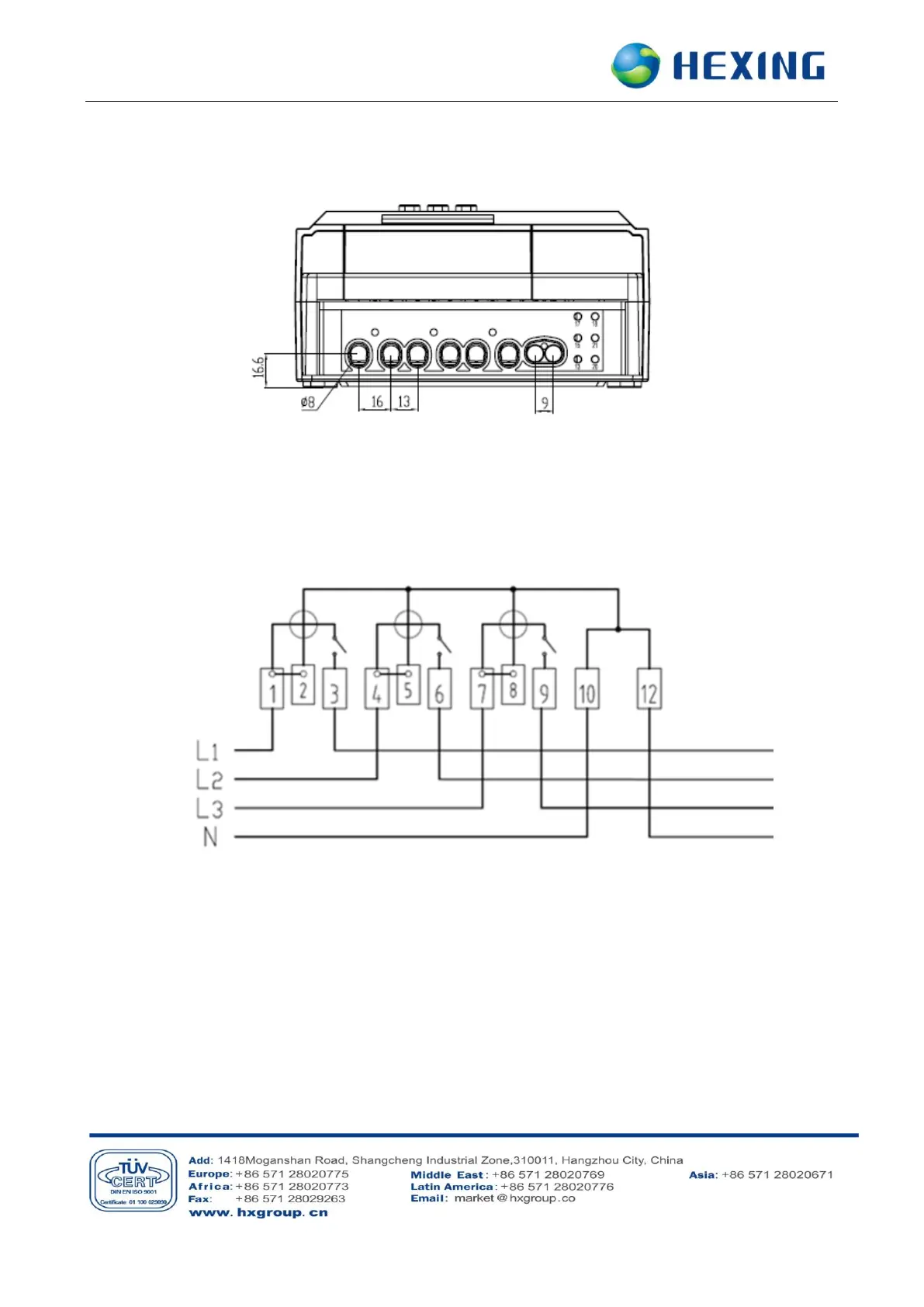

3.2 Terminal block
3.3 Connection diagram
3.4 Meter installation
The meter should be connected correctly according to connection diagram and the
terminal screws should be tightened correctly to avoid poor connections that might
otherwise damage the meter.
The Meter must be installed in a dry and secure location. It is suggested that the meter be
installed inside of an enclosure.
The meter should be installed as per the installation dimension drawing and should be
