User manual- HXE310-KP
35

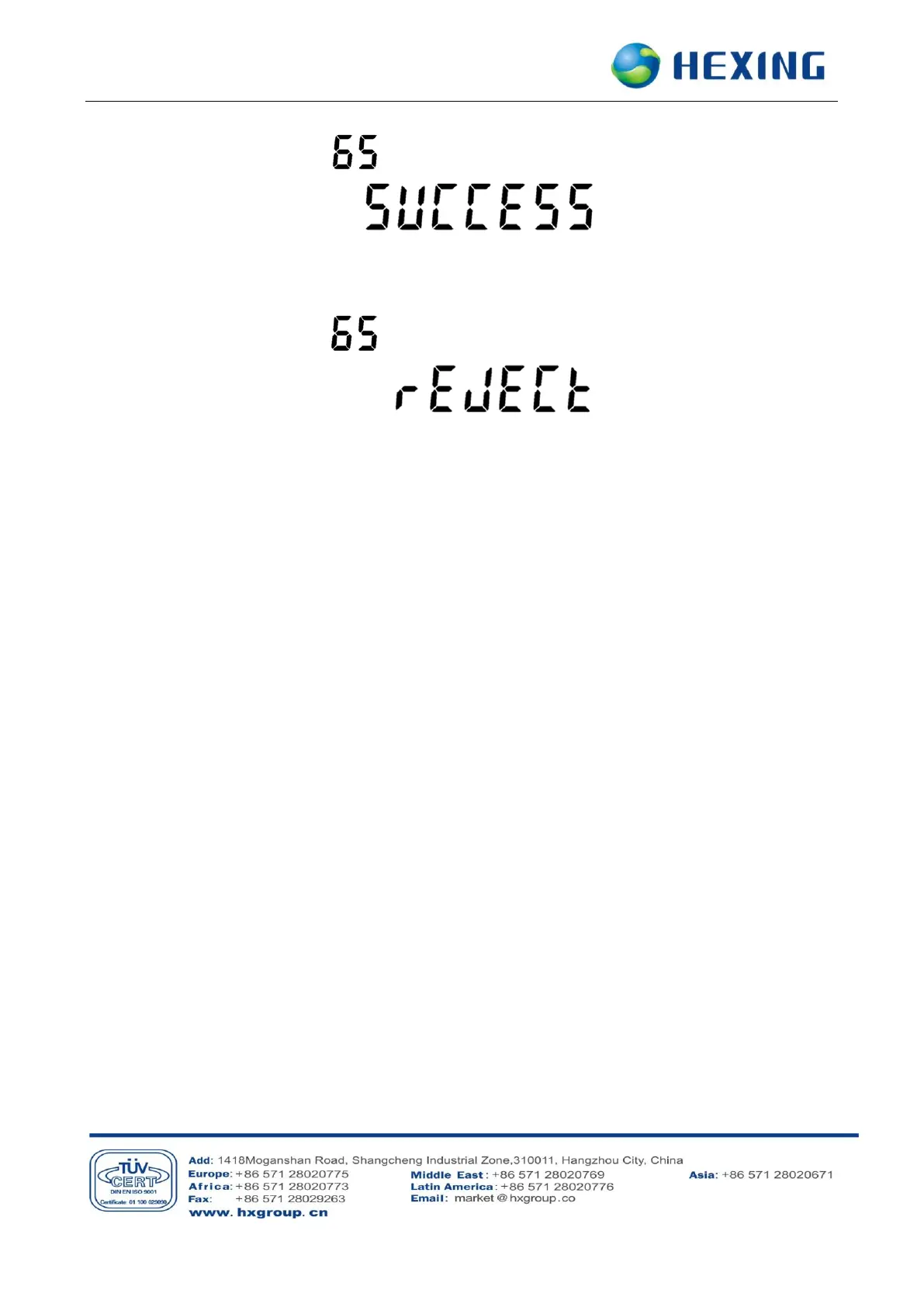

Already at the normal working mode
Note: When the meter is under installation mode, the relay is close as default. Some
clients will require setting the relay open as default. In this situation, when the meter
switches to normal working mode, the relay will close automatically.
2.14 Fault alarm LED
When the meter is in fault, the alarm LED will turn on. The customer can configure the alarm
events in terms of specific requirements, e.g. the configuration word set as 0x00000003, then
the LED will turn on when the meter cover or terminal cover open; The default configuration
word sets is 0x10000000, the alarm LED indicate the Relay fault event. This function can be
configurable.
3. Overall dimension and installation
3.1 Overall dimension
Length × Width × Height ＝ 277mm×175mm×89mm
