Hifonics Atlas Series User Manual

23
FUNCTIONAL INSTRUCTIONS

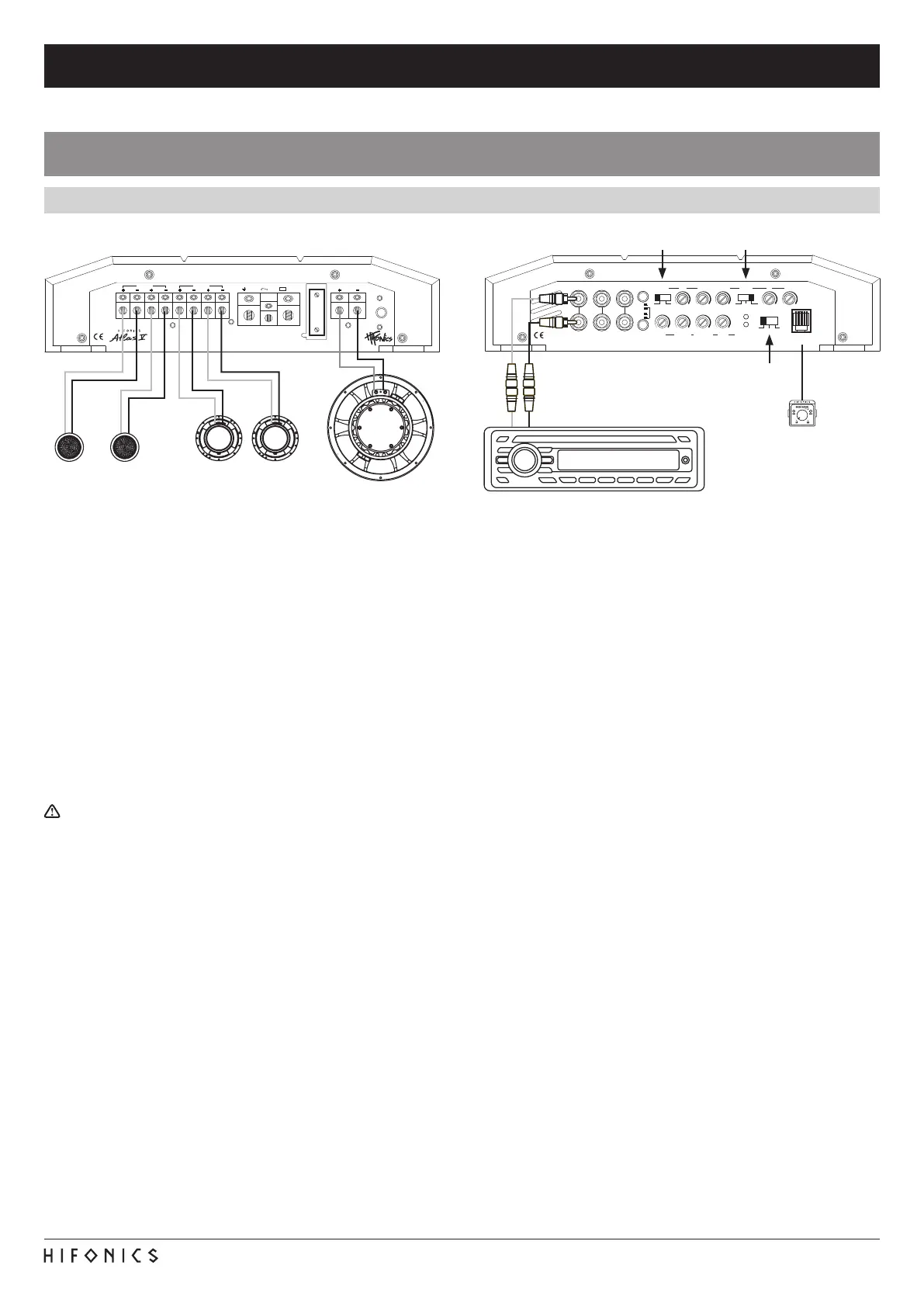

INTERCONNECTION EXAMPLE
3-channel-mode: 2-Way-Active-System + 1 x Subwoofer
INTERCONNECTION
• Connect the RCA lineouts of the head unit with the RCA jacks LINE IN CH1/2 of the amplier with appropriate high-value RCA cables.
• Connect the tweeters with SPEAKER OUTPUT + CH1 - / + CH2 -.
Ensure that the total impedance load of each speaker is not lower than 2 ohms.
• Connect the low-/mid-speakers with SPEAKER OUTPUT + CH3 - / + CH4 -.
Ensure that the total impedance load of each speaker is not lower than 2 ohms.
• Connect the subwoofer with SUB OUTPUT + CH5 -. Ensure that the total impedance load of the subwoofer is not lower than 1 ohm.
Too low impedance cause high temperature and will shut down the amplier operation.
INPUT MODE SWITCH
• Select the 2CH position on the INPUT MODE switch.
CROSSOVER SETTINGS CH1/2 (Tweeter)
• You must set the X-OVER switch to the HP Position (Highpass Mode) to avoid any damage by lower frequencies on the speakers.
The cut-off frequency is adjustable with the HP controller and should be set between 2500Hz to 4000Hz, depending on the size of
the speakers.
IMPORTANT NOTE: Do not operate the tweeter in any circumstances in full range mode (FULL), or do not play music without
checking the correct settings before. Turn before the LEVEL controller to the 6V position, then select on the X-OVER switch of CH1 / 2
position HP and turn the HP controller to the right on 4 kHz position. The tweeter can be irreparably damaged by already very low volume
levels without a properly adjusted crossover setting .
CROSSOVER SETTINGS CH3/4 (Low-/Mid-Speaker)
• You must set the X-OVER switch to the BP Position (Bandpass Mode) to avoid any damage by lower frequencies on the speakers.
The lower cut-off frequency is adjustable with the HP controller and should be set between 60Hz to 150Hz. The higher cut-off
frequency is adjustable with the LP controller and should be set between 1800Hz to 3800Hz, depending on the size of the speakers.
LEVEL CONTROLLER CH1/2 & CH3/4 & CH5
• Please check page 22.
BASS BOOST CONTROLLER CH5
• Please check page 22.
LP CONTROLLER CH5
• The LP (low pass) controller is for the adjustment of the Cut-Off-Frequency, which should be between 60Hz and 100Hz, depending
on the size of the subwoofer.
SUB SONIC CONTROLLER CH5
• Please check page 22.
BASS REMOTE CH5
• The enclosed BASS REMOTE Controller adjusts if required the bass-level on the subwoofer channel CH5 e.g. from the driver’s seat.
Please use only the enclosed bass remote controller and cable.
Connect the stereo RCA output (L/R) of the head unit with
LINE IN CH1/2 of the amplier.
HP LP/BP
2CH
Tweeters
L & R
each 2 – 8 Ohms
Low-/Midspeaker
L & R
each 2 – 8 Ohms
100A
POWER INPUT
FUSE
SPEAKER OUTPUT
BRIDGED
PROTECT
POWER
LP/BPFULLHP
HP/BP LP
CH2CH1
LEVEL
INPUT
X-OVER
CH3/CH4
50Hz 250Hz 150Hz 4kHz
GND +12VREM
5CH
2CH
INPUT MODE
BRIDGED
CH4CH3
ARX5005
LEVEL
MIN MAX
FULLHP
X-OVER
CH1/CH2
HP
50Hz 4kHz
LEVEL
MIN MAX
MIN MAX15Hz 55Hz 0dB 18dB
SUB OUTPUT
4CH
35Hz 150Hz
HI
LOW
OFF
ON
CH3
CH4
CH1
CH2
CH5
BASS LEVEL
CONTROLLER
CH5
LEVELSUB SONIC BASS BOOST CH5LP
AUTO TURN ON
(ONLY IN HI LEVEL INPUT MODE)
LINE IN SUB IN
BLUE / WHITE
LOG0
POWER INPUT
FUSE
SPEAKER OUTPUT
BRIDGED
PROTECT
POWER
LP/BPFULLHP
HP/BP LP
CH2CH1
LEVEL
INPUT
X-OVER
CH3/CH4
50Hz 250Hz 150Hz 4kHz
GND +12VREM
5CH
2CH
INPUT MODE
BRIDGED
CH4CH3
ARX5005
LEVEL
MIN MAX
FULLHP
X-OVER
CH1/CH2
HP
50Hz 4kHz
LEVEL
MIN MAX
MIN MAX15Hz 55Hz 0dB 18dB
SUB OUTPUT
4CH
35Hz 150Hz
HI
LOW
OFF
ON
CH3
CH4
CH1
CH2
CH5
BASS LEVEL
CONTROLLER
CH5
LEVELSUB SONIC BASS BOOST CH5LP
AUTO TURN ON
(ONLY IN HI LEVEL INPUT MODE)
LINE IN SUB IN
BLUE / WHITE
LOG0
Subwoofer
1 – 8 Ohms
Connect Bass Level
Controller with the
enclosed cable
