Section 1: Hardware Installation
Hardware Overview

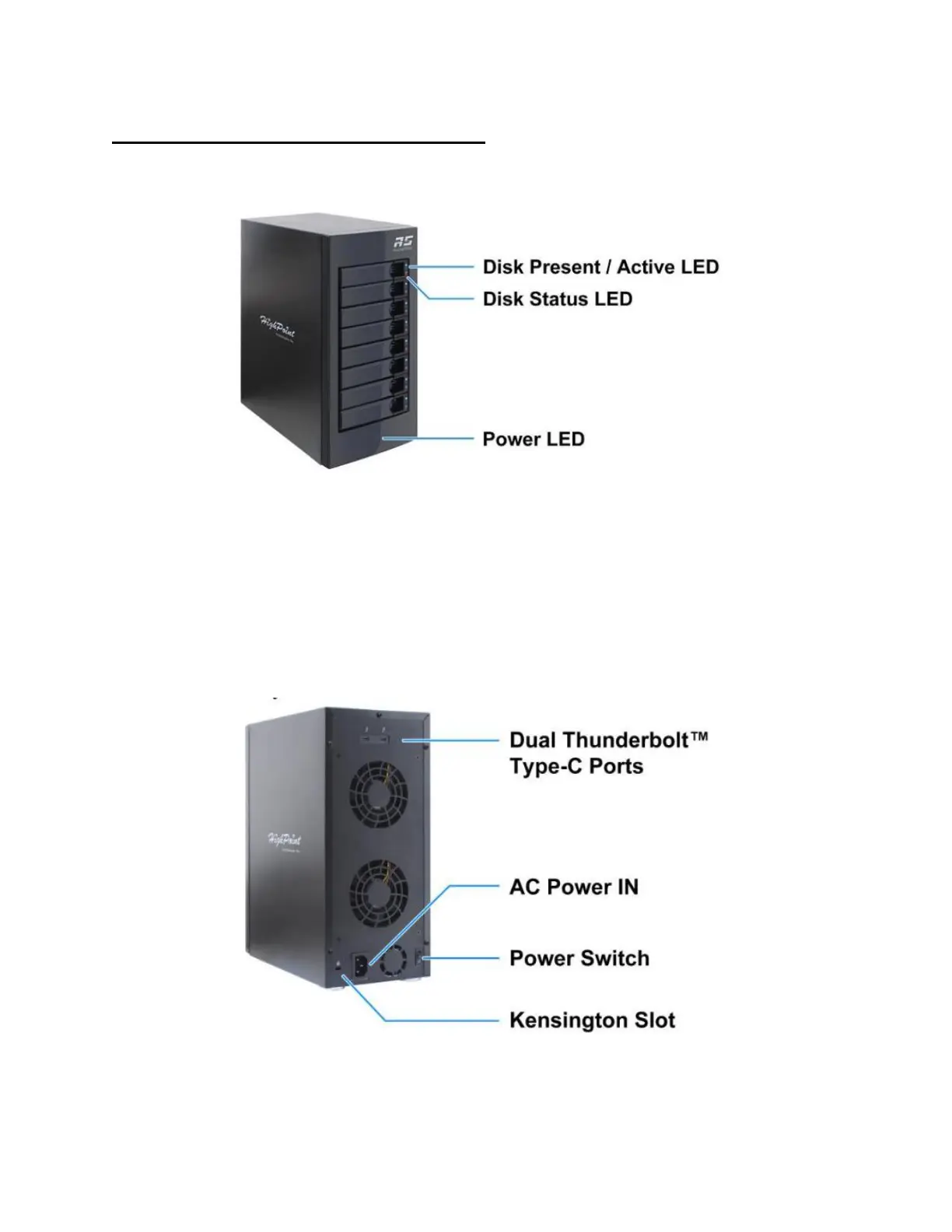

Panel Layout-Front View
LED Indicators
Disk Present: Solid blue
Disk Active LED: Flashing blue
Disk Failure LED: Solid red
Disk rebuilding/identifying LED: Flashing red
Power LED: Solid blue
Panel Layout-Rear View
