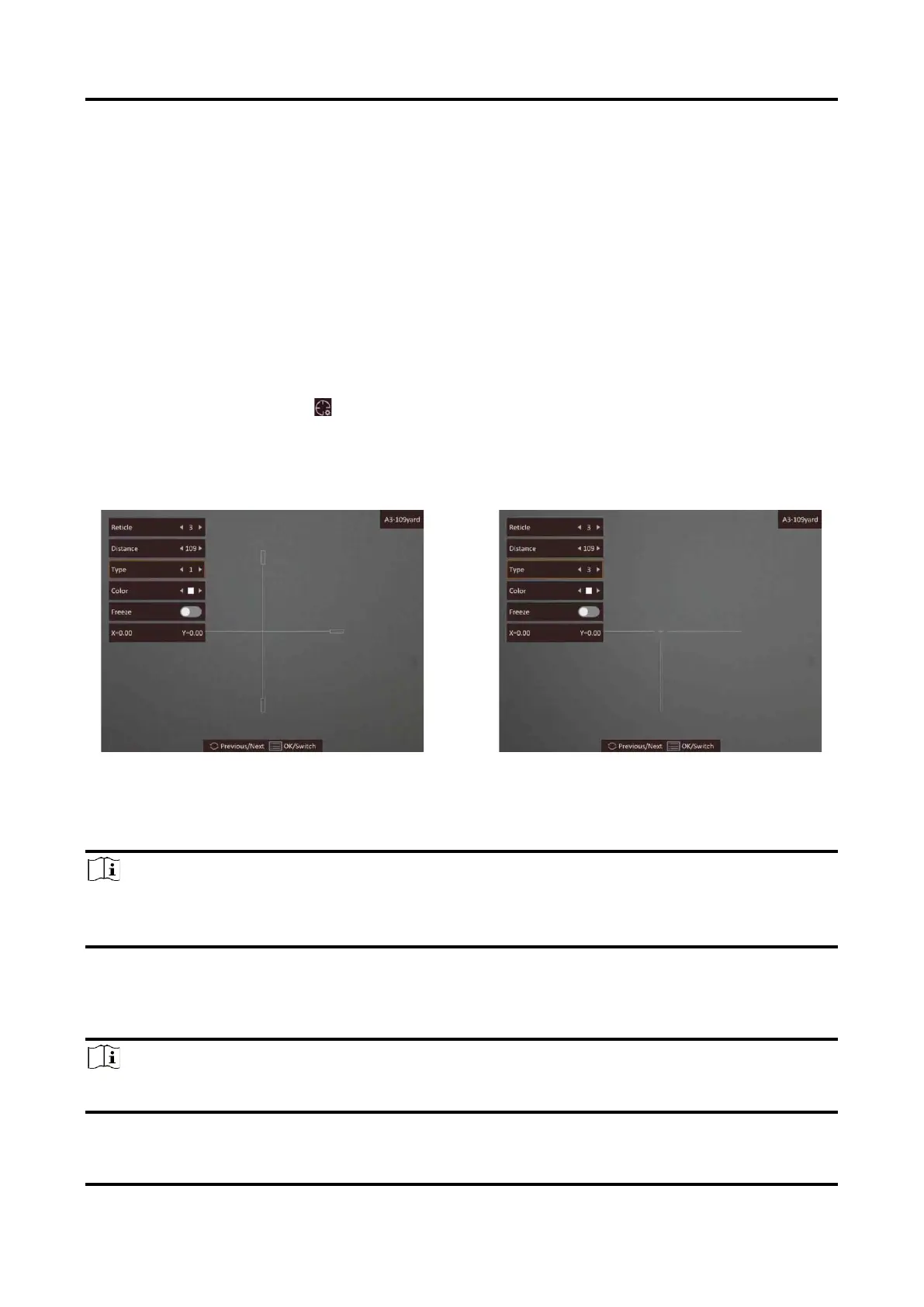

Chapter 4 Zeroing
4.1 Set Reticle
You can select a reticle in the current reticle group, and set parameters such as type, color, and
position for the reticle.
Steps
1. In the view mode, hold the wheel to show the menu.
2. Rotate the wheel to select , and press the wheel to enter the reticle setting interface.
3. Press the wheel to select a reticle No. You can select OFF to disable the reticle.
4. Set reticle type.
1) In the reticle setting interface, rotate the wheel to select Type.
2) Press the wheel to select a reticle type. 5 types of reticles can be selected.
5. Set reticle color.
1) Rotate the wheel to select Color.
2) Press the wheel to switch the color of the reticle.
6. (Optional) Repeat 3 to 6 to set color for other reticles.
Note
When you switch the reticle No., a prompt will appear on the interface. Select OK to save the
parameters for the current reticle.
7. Hold the wheel to exit the interface according to the prompt.
– OK: Save the parameter and exit.
– Cancel: Exit and not save the parameter.
Note
There are 5 reticles can be configured.

Hikmicro CHEETAH LRF Series Specifications

General

Sensor Resolution	384 × 288
Display Resolution	1024 × 768
Detection Range	1800 m
Laser Rangefinder	Yes
Waterproof Rating	IP67
Frame Rate	50 Hz
Pixel Interval	12 μm
Laser Rangefinder Accuracy	± 1 m
Protection Level	IP67
Eye Relief	15 mm
Display	OLED
