Chapter 5 Measure Distance
The device can detect the distance between the target and the observation position with laser.
Before You Start
When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy
may be affected.
Steps
1. Hold the wheel to show the menu.
2. Rotate the wheel to select , and press the wheel to enter the laser ranging setting interface.
3. Press the wheel to enable Laser Ranging.
4. Rotate the wheel to select a laser ranging mode and press the wheel to confirm. Once and
continuous modes are selectable.
– means measuring the distance continuously, and the measurement duration can be
selected. The measurement result will be refreshed every 1 s.
– means measuring the distance once.
5. Hold the wheel to return to the live view interface.
6. Aim the cursor at the target and press to measure the target distance.
Result
The distance measurement result is displayed at the lower center of the image.

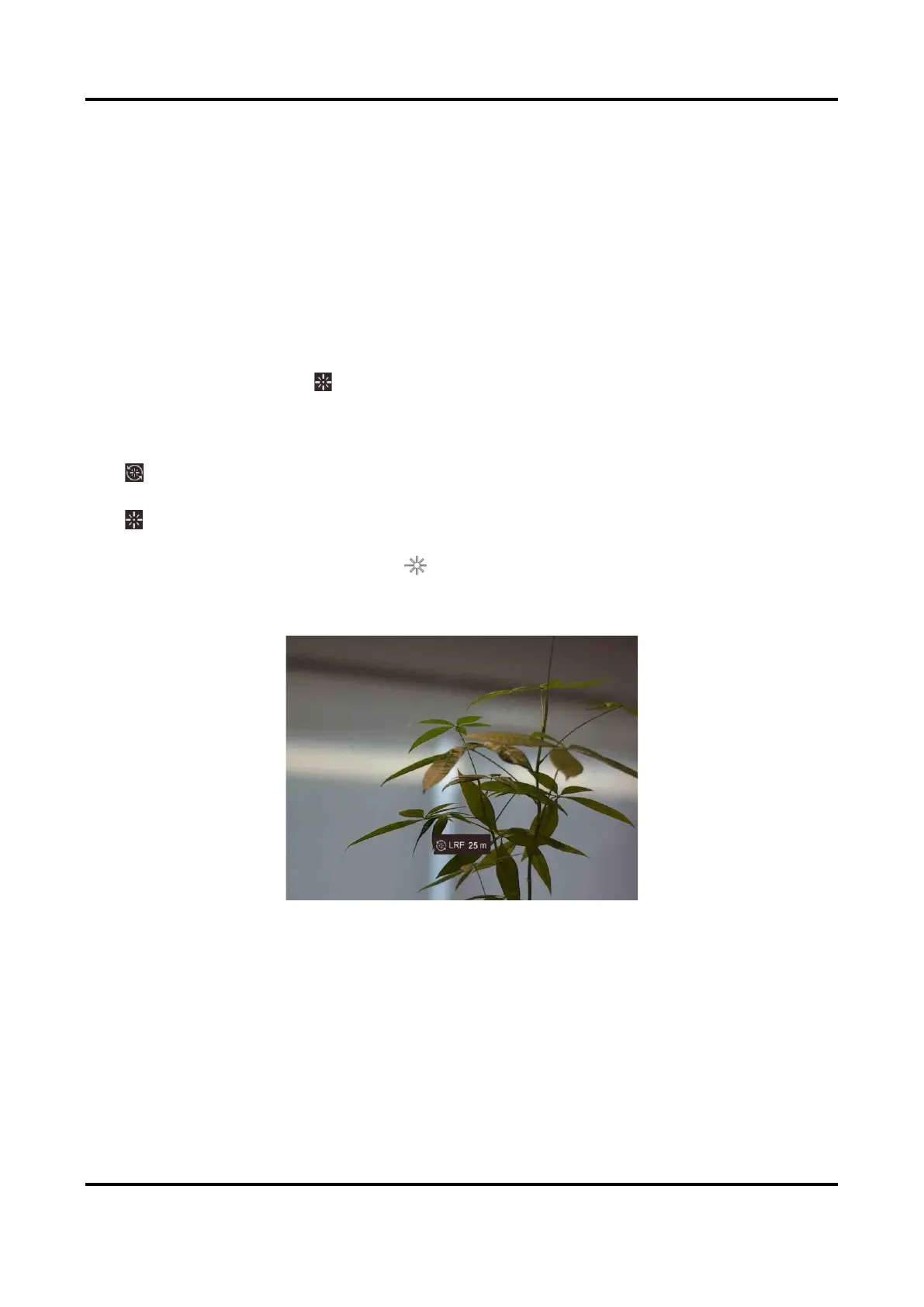

Figure 5-1 Distance Measurement Result

Hikmicro CHEETAH LRF Series Specifications

General

Sensor Resolution	384 × 288
Display Resolution	1024 × 768
Detection Range	1800 m
Laser Rangefinder	Yes
Waterproof Rating	IP67
Frame Rate	50 Hz
Pixel Interval	12 μm
Laser Rangefinder Accuracy	± 1 m
Protection Level	IP67
Eye Relief	15 mm
Display	OLED
