Chapter 5 Measure Distance
The device can detect the distance between the target and the observation position.
Before You Start
When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy
may be affected.
Steps
1. Hold the wheel to show the menu.
2. Rotate the wheel to select and press the wheel to go to the setting interface.
3. Set the parameters for the target.
1) Rotate the wheel to select the target from Deer, Grey Wolf, Brown Bear, and Custom.
2) Press and rotate the wheel to set target height.
Note
The available height ranges from 0.1 m to 9.0 m.
3) Press the wheel to confirm.
4) Hold the wheel to save the settings and return to the distance measurement interface.
4. Align the center of top mark with the edge of target top, and press the wheel to confirm.
5. Align the center of bottom mark with the edge of target bottom, and press the wheel to
confirm.
Result
The left top of the image displays the distance measurement result and the height of the target.

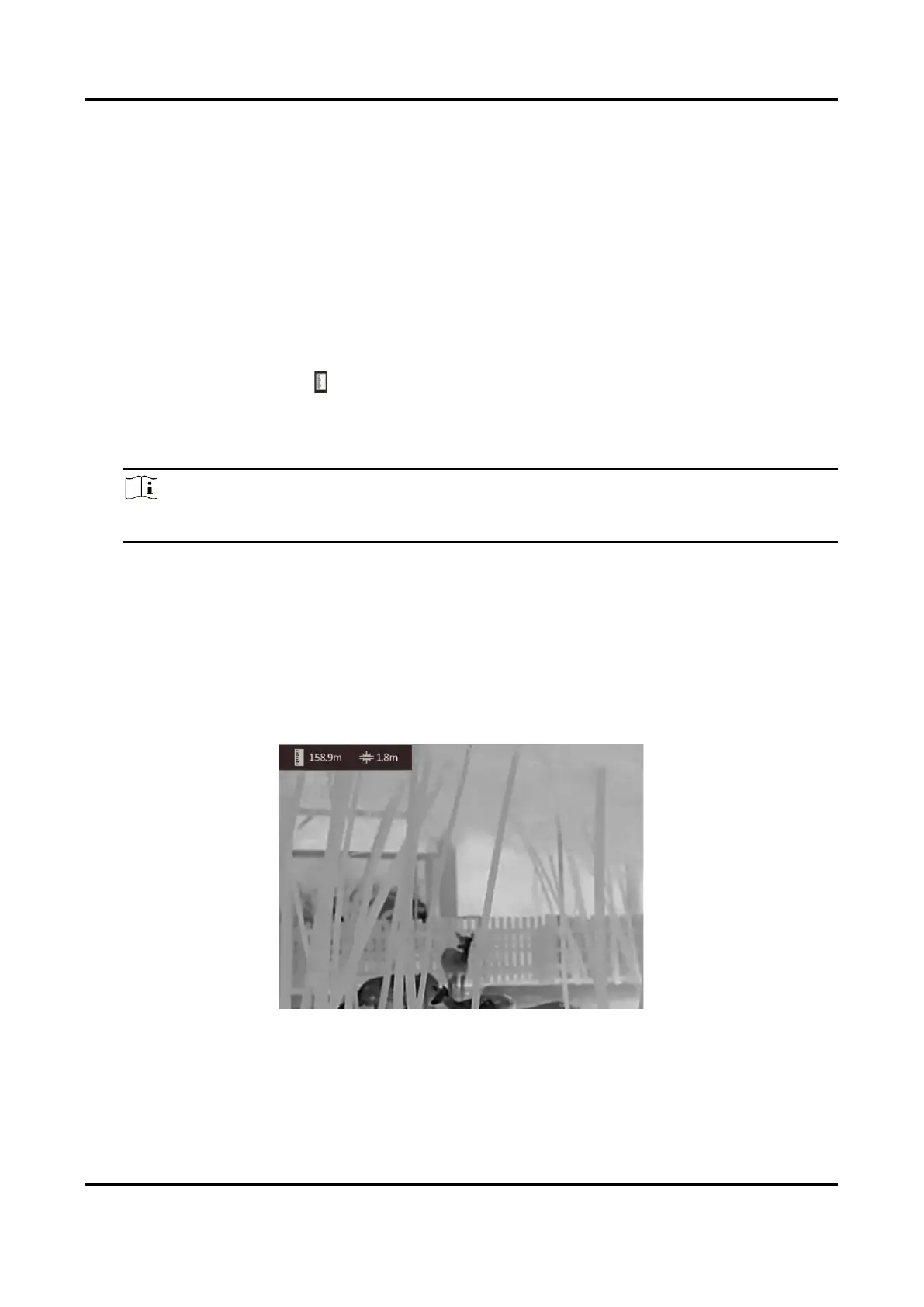

Figure 5-1 Measurement Result

Hikmicro STELLAR Series Specifications

General

Pixel Size	12 μm
Frame Rate	50 Hz
Wi-Fi	Yes
Video Recording	Yes
Photo Capture	Yes
Resolution	384x288, 640x512
Display	AMOLED
Battery Type	Rechargeable Li-ion
Operating Temperature	-20°C to +50°C
Lens Options	19mm, 25mm, 35mm, 50mm
Focus	Manual
Color Palettes	Black Hot, White Hot, Red Hot, Fusion
