Chapter 2 Preparation
2.1 Cable Connection
Connect the device and power adaptor with a type-C cable to charge the device. Alternatively,
connect the device and PC to export files.

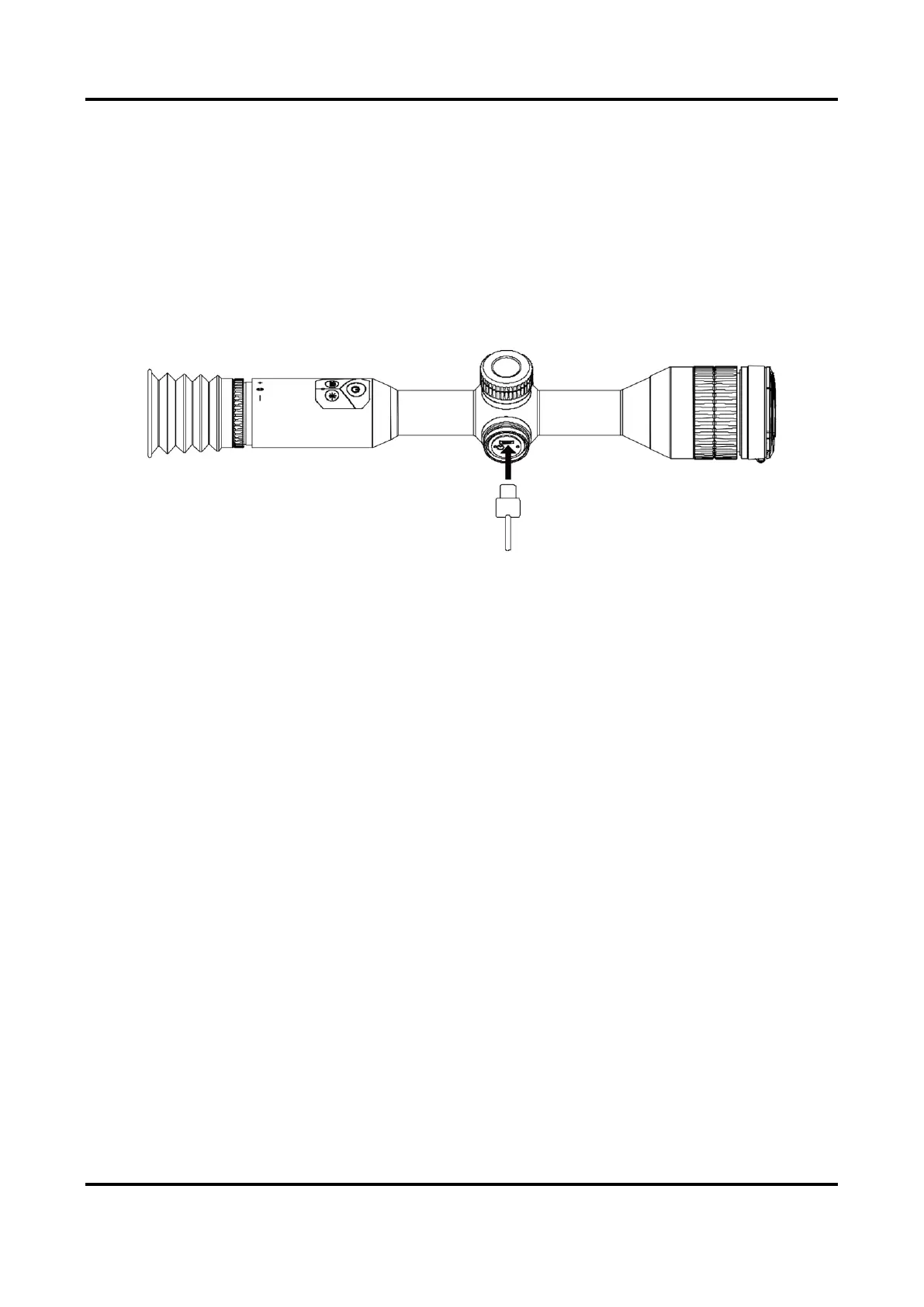

Figure 2-1 Cable Connection
2.2 Install Battery
2.2.1 Battery Instruction
● Charge the device for more than 4 hours before first use.
● The built-in battery type is 18650 with the protection board, and the battery size should be 23
mm × 67 mm. The rated voltage and capacity are 3.6 VDC/3350 mAh (12.18 Wh).
● The external removable battery type is CR123A. The max. rated voltage is 3 VDC/2 A, and the
battery capacity is 1600 mAh.
● Do not charge the removable battery in the package.
● Install the external battery before the built-in battery runs out, or the device cannot be turned
on.
2.2.2 Battery Installation
Insert the batteries into the battery compartment.
Steps
1. Turn the battery cover anticlockwise to loosen it.
