HD-TVI Speed Dome DS-2AE7232TI-A User Manual
UM THD DS-2AE7232T-x 020519NA 31
that the speed dome stays at a certain preset; the patrol speed (level 1 to 40 is selectable)
is the scanning speed the speed dome switches between the presets.
D. Follow the above steps to define the other presets for the selected patrol. You can configure up to
32 presets in sequence for a patrol. Press IRIS+ to save the new settings or press IRIS- to cancel
and return to the previous menu.
4. Preview the patrol. Move the cursor to PREVIEW and click IRIS+ to preview the current patrol. Click IRS+
again to stop the preview.
5. Call the defined patrol. You can call the special presets to call the defined patrol. E.g. call preset 35 to
call patrol 1. Please refer to
Section 2.3
to find the corresponding preset number for each patrol.
6. Delete a patrol. You can move the cursor to CLEAR PATH and click IRIS+ to delete the current patrol.
7. Define the dwell time when running the fast patrol. If you call the No.46 preset to enable the fast
patrol, the speed dome will run the patrol automatically according to the route consists of the
configured preset 1 to preset 32. And you can set the Patrol-D time switches from one preset to the
other. 5 s, 10 s, 20 s, 30 s, and 60 s are selectable.
Configuring Patterns
Purpose:
A pattern is a memorized, repeatable series of pan, tilt, zoom, and preset movements that can be recalled
by a command or automatically by a configured function (alarm, park, time task, and power-up).
1. Move the cursor to enter the PATTERNS submenu: MAIN MENU > DOME SETTINGS > PATTERNS.

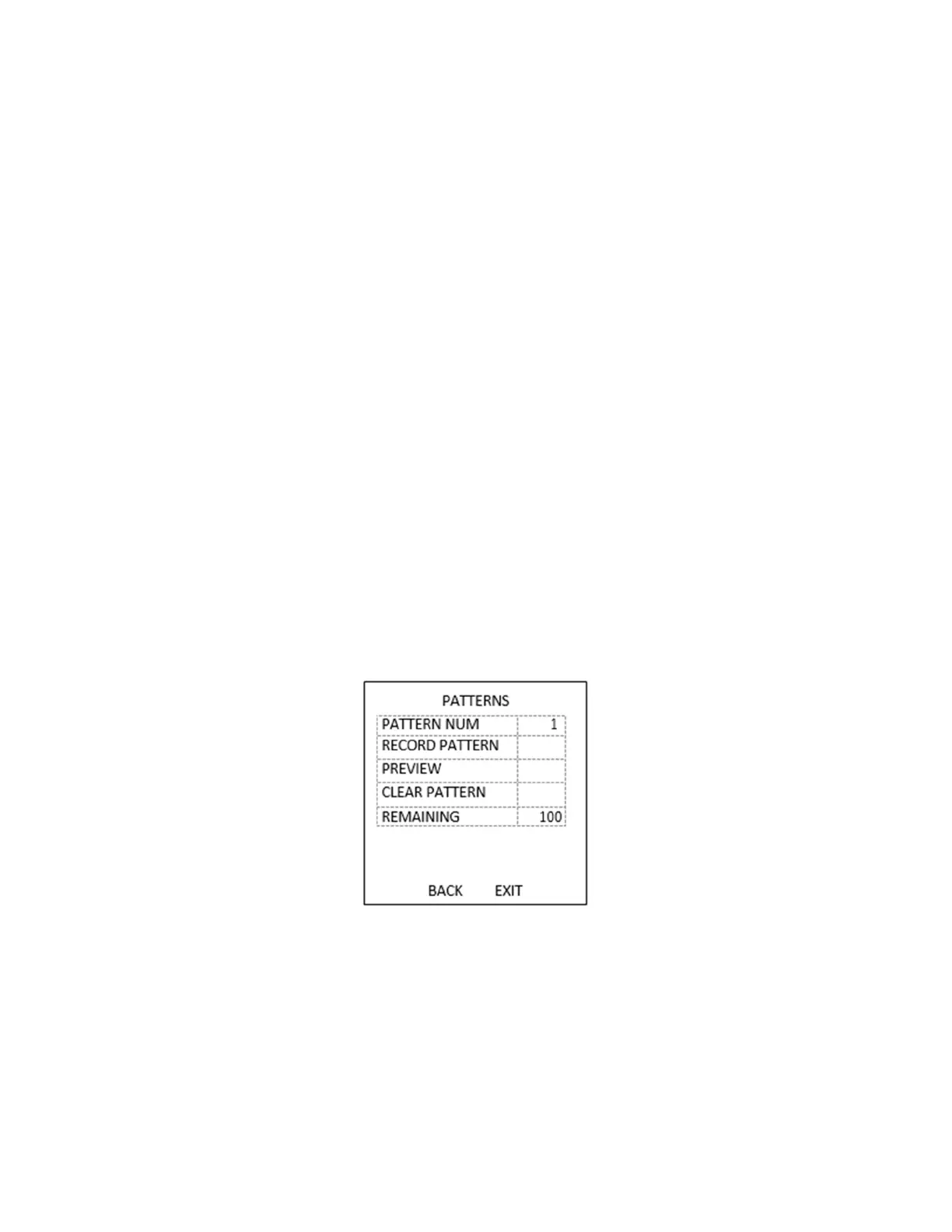

Figure 16, Pattern Configuration Menu
2. Choose the pattern number.
A. Move the cursor to PATTERN NUM and click IRIS+ to enter the editing mode.
B. Click the up/down direction buttons to select the number of the pattern to be configured.
C. Click IRIS+ again to confirm the settings.
NOTE: Up to five patterns can be configured.
