HIKVISION DS-2AE7232TI-A User Manual

HD-TVI Speed Dome DS-2AE7232TI-A User Manual
UM THD DS-2AE7232T-x 020519NA 30

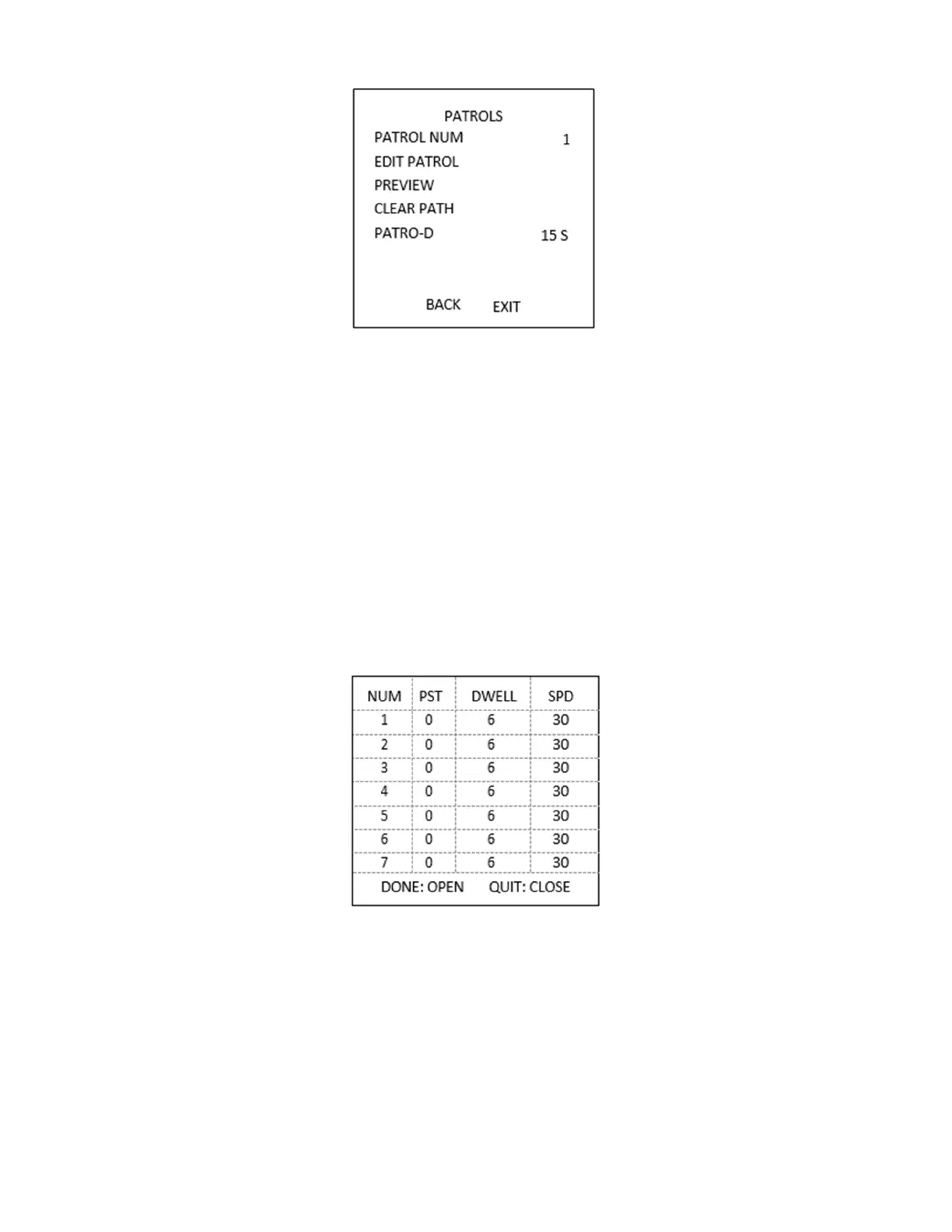

Figure 14, Patrol Configuration Menu
2. Choose the patrol number.
A. Move the cursor to PATROL NUM and click IRIS+ to enter editing mode.
B. Click the up and down direction buttons to select the patrol number to be configured.
C. Click IRIS+ again to confirm the settings and exit editing mode of this column.
NOTE: Up to 10 patrols can be configured.
3. Edit the patrol.
A. Move the cursor to EDIT PATROL, and click IRIS+ to enter editing mode.
Figure 15, Edit the Patrol
B. Click up/down direction buttons to choose the number and locate the preset to be edited.
C. Click left/right direction buttons to position the cursor to the column of PRESET, DWELL, and
SPEED. You can click the up/down direction buttons to set the value of preset number, dwell time,
and patrol speed.
NOTE: The presets you set for a patrol should be the ones that have been pre-defined by users.
The dwell time (15 to 800 seconds is selectable, which are divided into 30 levels) is the time

HIKVISION DS-2AE7232TI-A Specifications

General

Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/2.8 \
Total megapixels	2 MP
Gain control type	Auto/Manual
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Analog signal format system	NTSC, PAL
Form factor	Dome
Mounting type	Ceiling/wall
Product color	White
International Protection (IP) code	IP66
Type	CCTV security camera
PTZ modes	5 Pattern
PTZ protocols	Pelco-P/D
Languages support	English
Number of languages	1
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Digital zoom	16 x
Optical zoom	32 x
Focal length range	4.8 - 153 mm
Maximum aperture number	4.6
Minimum aperture number	1.6
Built-in HDD	No
LED type	IR
Night vision distance	150 m
AC input voltage	24 V
Power source type	AC
Power consumption (max)	40 W
Pan range	0 - 360 °
Pan speed	160 °/sec
Tilt angle range	-15 - 90 °
Camera shutter speed	1/10000 - 1 s
Minimum illumination	0 lx
Interface	BNC
Operating temperature (T-T)	-30 - 65 °C

Weight and Dimensions

Height	353.4 mm
Weight	4500 g
Diameter	220 mm
