Network Dome Camera·Quick Start Guide
1
1
1
A

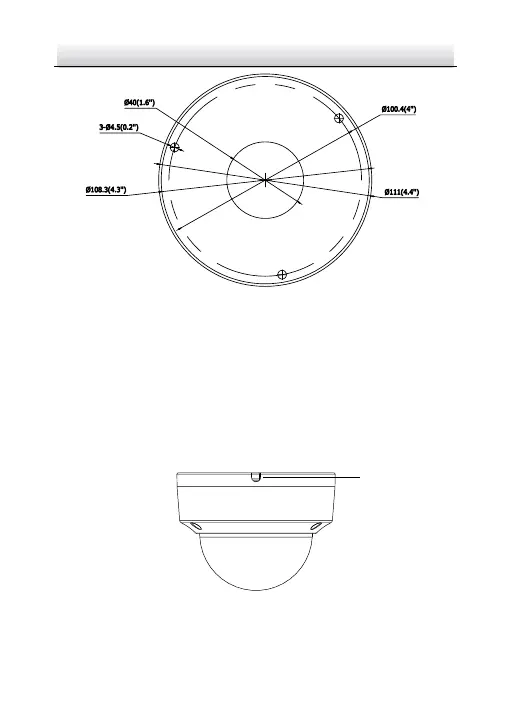

Drill Template
Hole A: for cables routed through the ceiling
Screw hole 1: for Mounting Base
Drill Template Figure 2-3
Notes:
● If you choose to route cable through the ceiling, cut a cable
hole according to Hole A on drill template.
● You can also route cable from the side outlet.
● If you install the camera in outdoor, install the waterproof
jacket to the network cable. See Section 2.4.
Side Outlet Figure 2-4
To Next Page
