HIKVISION DS-2CD2452F-IW User Manual

User Manual of Network Camera
60

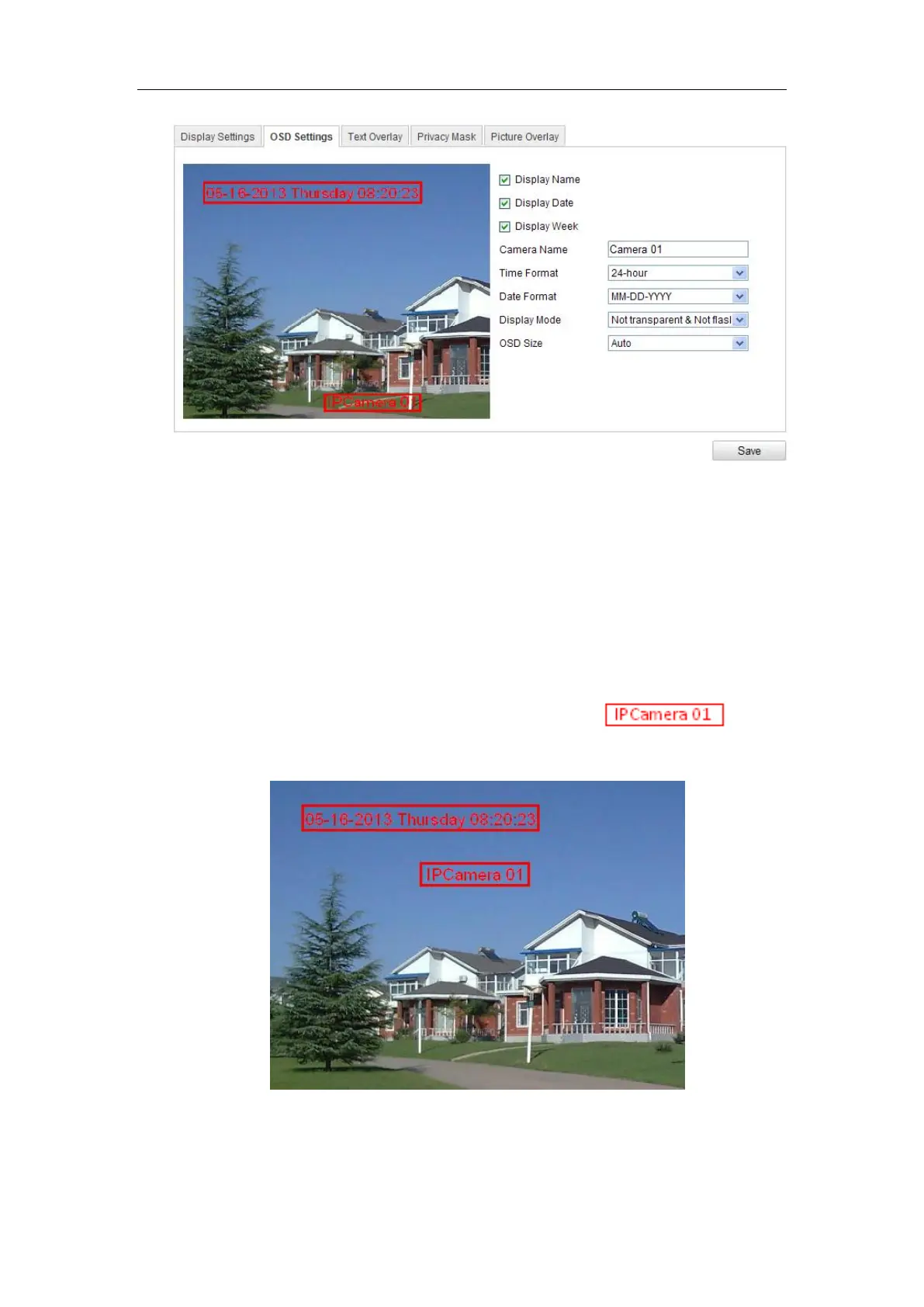

Figure 6-29 OSD Settings
2. Check the corresponding checkbox to select the display of camera name, date or
week if required.
3. Edit the camera name in the text field of Camera Name.
4. Select from the drop-down list to set the time format, date format, display mode
and the OSD font size.
5. You can use the mouse to click and drag the text frame in the
live view window to adjust the OSD position.
Figure 6-30 Adjust OSD Location
6. Click Save to activate above settings.

HIKVISION DS-2CD2452F-IW Specifications

General

Brand	HIKVISION
Model	DS-2CD2452F-IW
Category	Security Camera
Language	English
