User Manual of Network Camera
66
(2)Choose the day you want to set the arming schedule.
(3)Click to set the time period for the arming schedule.
(4)(Optional) After you set the arming schedule, you can copy the schedule to
other days.
(5)Click OK to save the settings.
Note: The time of each period can’t be overlapped. Up to 4 periods can be
configured for each day.

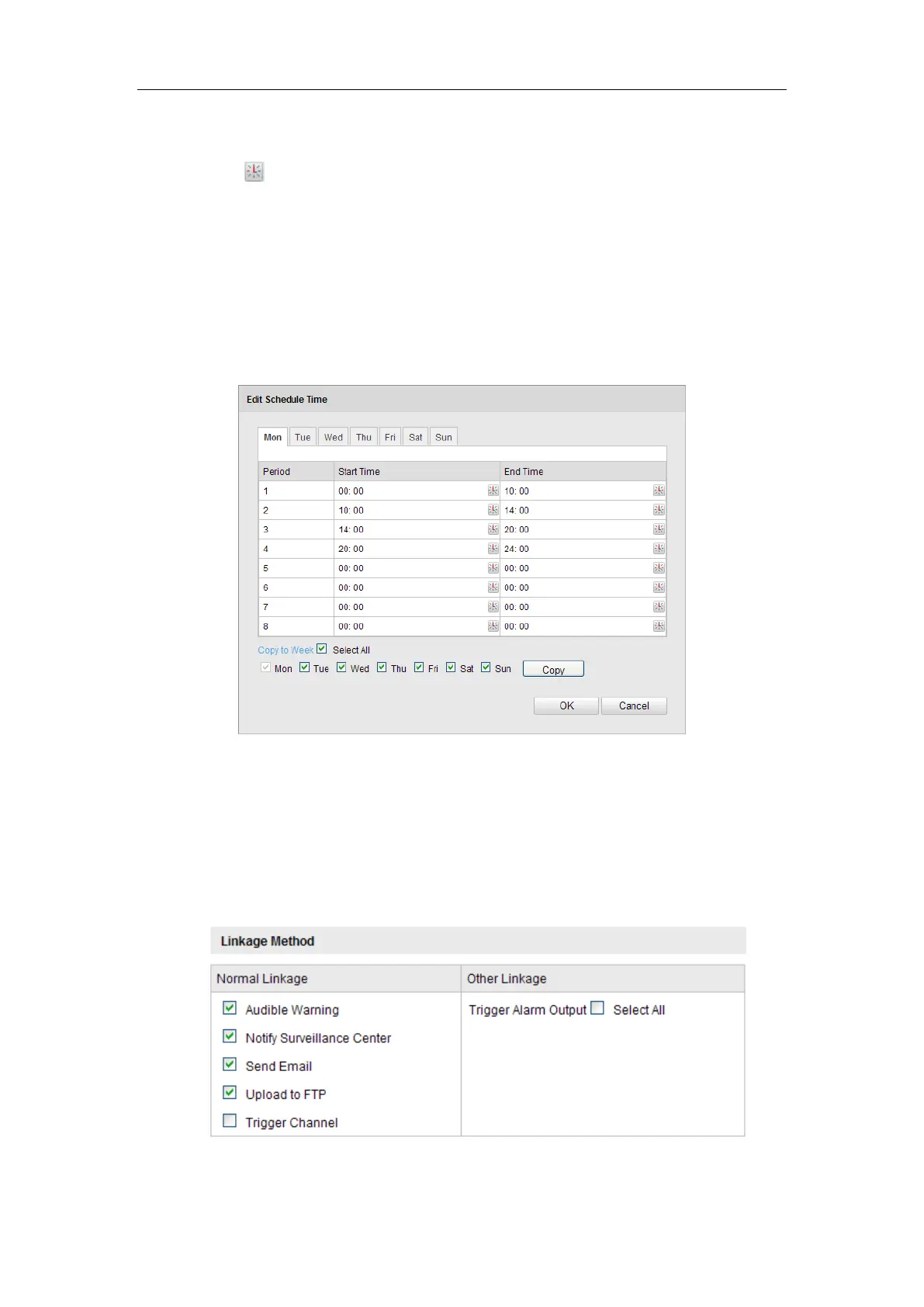

Figure 6-36 Arming Time Schedule
3. Set the Alarm Actions for Motion Detection.
Check the checkbox to select the linkage method. Notify surveillance center,
send email, upload to FTP, trigger channel and trigger alarm output are selectable.
You can specify the linkage method when an event occurs.
Figure 6-37 Linkage Method
