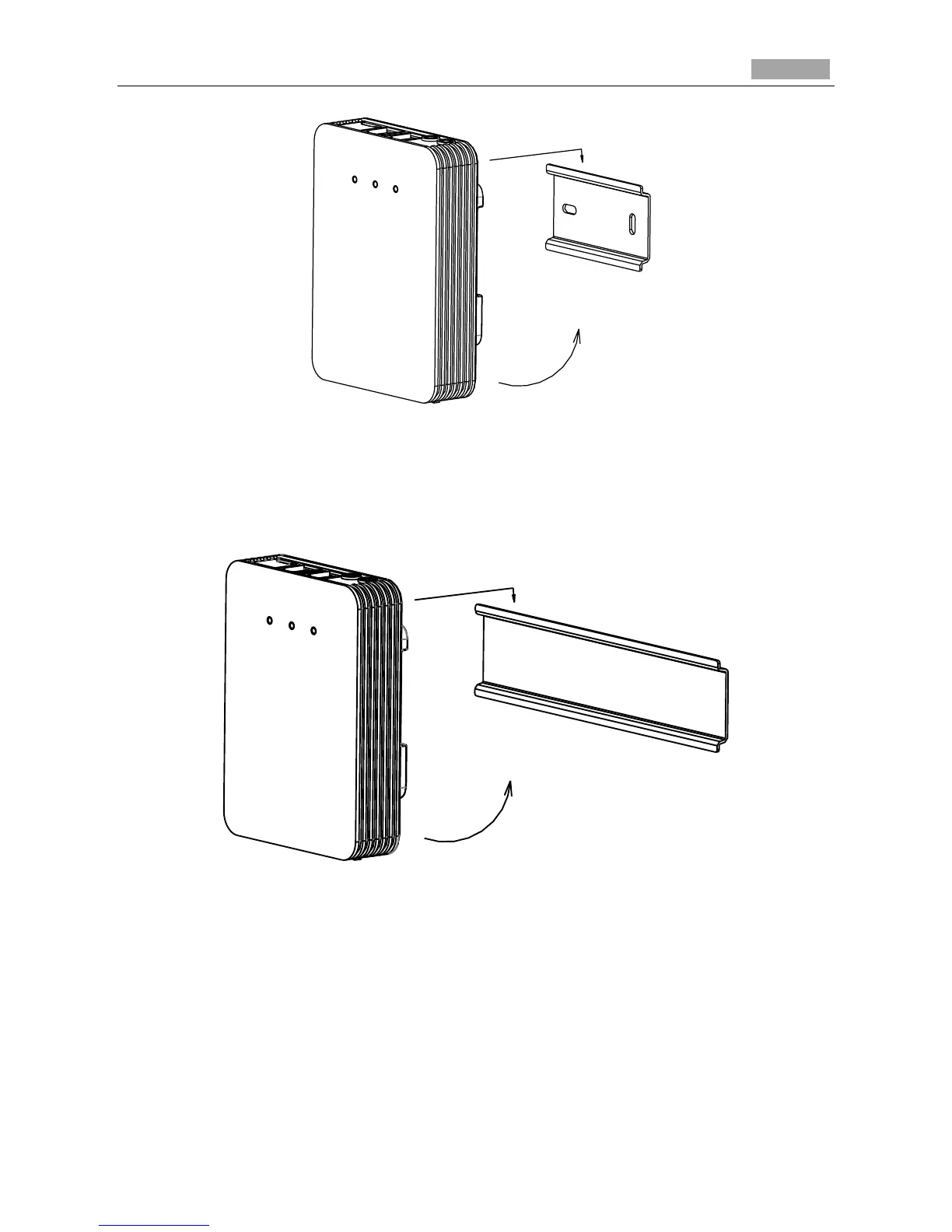

Figure 4-44 Buckle the Main Unit
If you already had a standard rail to be installed, you can buckle the main unit onto the installed rail
directly.
Figure 4-45 Buckle the Main Unit onto Standard Rail
Installation of Block-Shaped Sensor Unit
This series of camera support concealed mounting and exposed mounting with a decorative cover.
Concealed Mounting
Please make sure that the mounting surface is suitable for adhesive pasting.
Steps:
1. Drill on the mounting surface. As shown in Figure 4-46.
