Installation Manual of Network Camera
117
Chapter 6 Cube Camera Installation
6.1 Type I Cube Camera
6.1.1 Camera Description

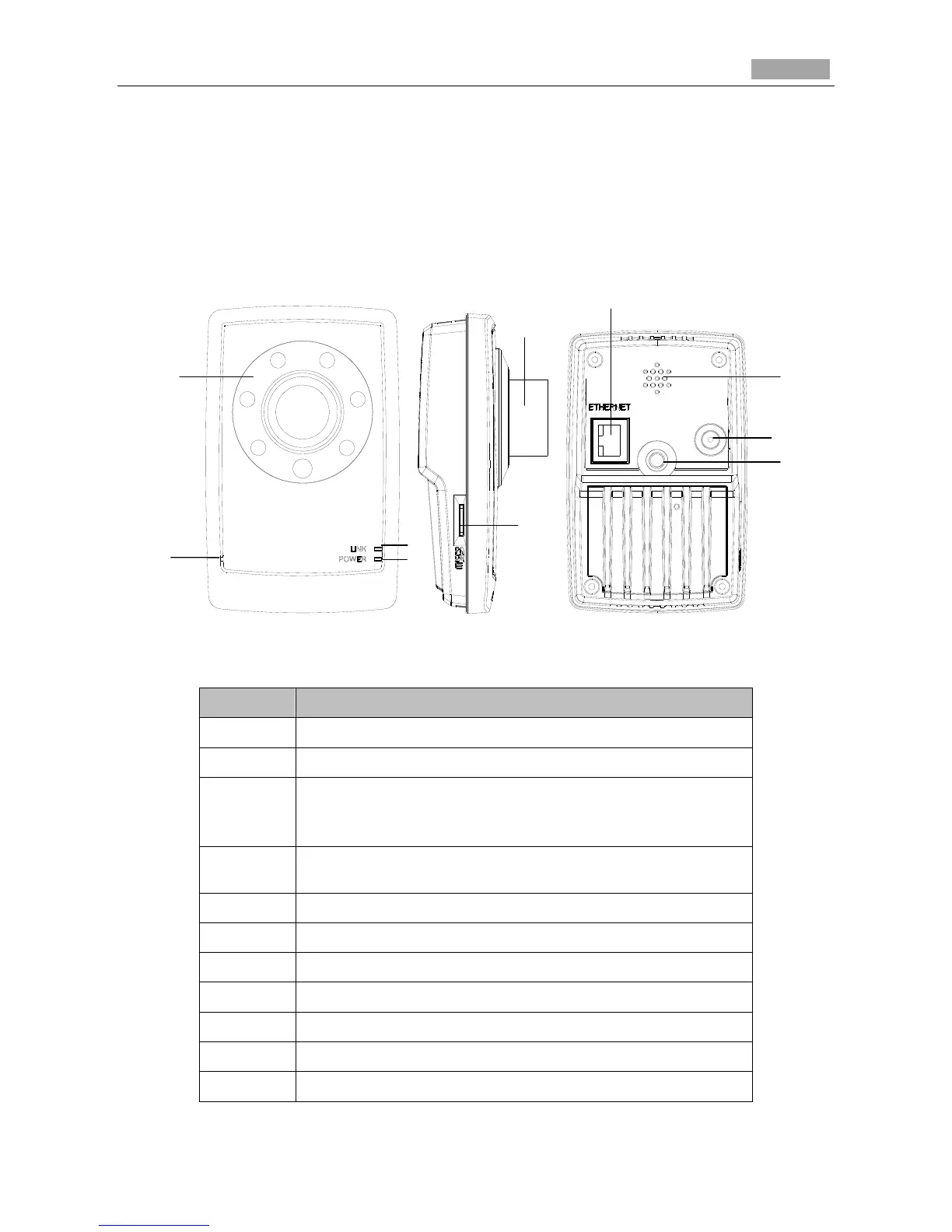

Figure 6-1 Overview
Table 6-1 Description
No.
Description
1
IR LED
2
Microphone
3
LINK: Network Status LED Indicator.
LED indicator is solid yellow when network connection is
functioning properly.
4
Power LED Indicator. It is solid red when power is applied to
the unit.
5
Lens
6
Micro SD Card Slot
7
Ethernet: 10M / 100M self-adaptive Ethernet Interface
8
Speaker
9
Power Supply Interface
10
Screw hole, used to fix the camera to the bracket
11
Reset Button
1
2
3
4
6
8
9
5
0
10
7
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

Table of Contents

Other manuals for HIKVISION DS-2CD7164-E

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-2CD7164-E and is the answer not in the manual?

HIKVISION DS-2CD7164-E Specifications

General IconGeneral
TypeIP security camera
PTZ controlYes
Placement supportedOutdoor
Connectivity technologyWired
Form factorDome
Product colorWhite
Protection featuresVandal proof
International Protection (IP) codeIP66
Total megapixels1.3 MP
Maximum resolution1280 x 960 pixels
Supported video modes720p
Video formats supportedH.264, M-JPEG, MPEG4
Supported graphics resolutions1280 x 960, 1280 x 720 (HD 720)
Pan range-15 - 15 °
Tilt angle range0 - 90 °
Angle of rotation15 °
Minimum illumination0.01 lx
Field of view (FOV) angle73 °
Sensor typeCMOS
Optical sensor size1/3 \
Optical zoom- x
Zoom capability-
Focus adjustment2.0
Fixed focal length8 mm
Password protection typeUser
Wi-FiNo
Cabling technology10/100Base-T(X)
Supported network protocolsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, QoS
Ethernet LAN (RJ-45) ports1
DC output voltage+12V
Power source typePoE
Power consumption (max)4 W
Operating temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth97.5 mm
Width99.9 mm
Height46.5 mm
Weight250 g
