Installation Manual of Network Camera
86
Table 4-2 Physical Description
No.
Description
1
10M/100M Self-adaptive Ethernet Interface
2
Power Supply Interface
3
IN, G: Alarm input interface
1A, 1B: Alarm output interface
4
D+, D-: RS-485 interface
5
AUDIO IN, G: Audio input interface
AUDIO OUT, G: Audio output interface
4.2.2 Installation
Steps:
1. Fix the mounting base to the wall.

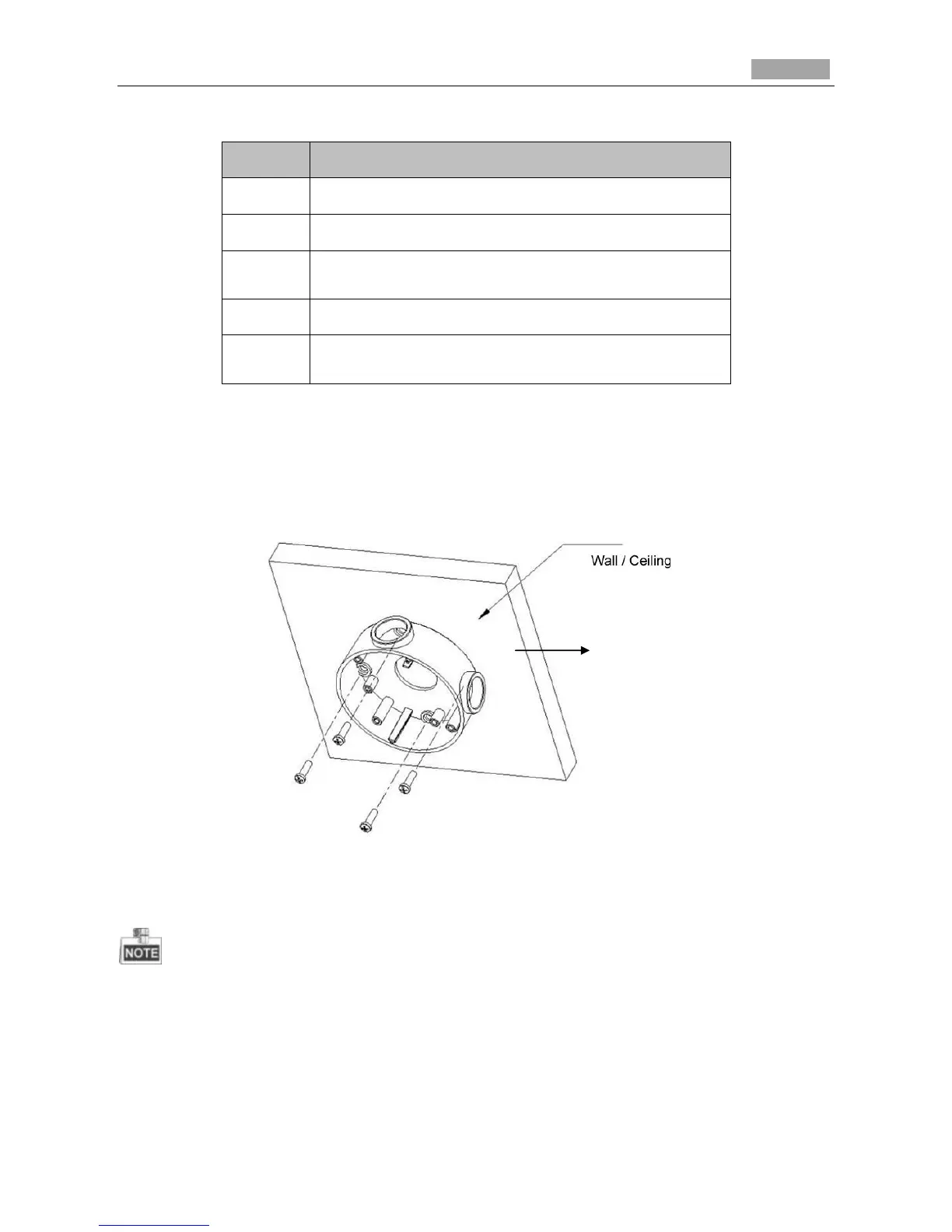

Figure 4-9 Fix the Mounting Base
2. Fix the mounting bracket with the camera to the mounting base.
The “bottom” mark on the mounting base should align with the “bottom” mark on the mounting
bracket.
Mounting Base
