HIKVISION DS-2CD7164-E Installation Manual

Installation Manual of Network Camera
27
3.2.4 Installation
Steps:
1. (Optional) Use a plier to remove the clip (marked in dotted line in 0) on the side of the back box
and then route the cables through the opening instead of the cable hole.

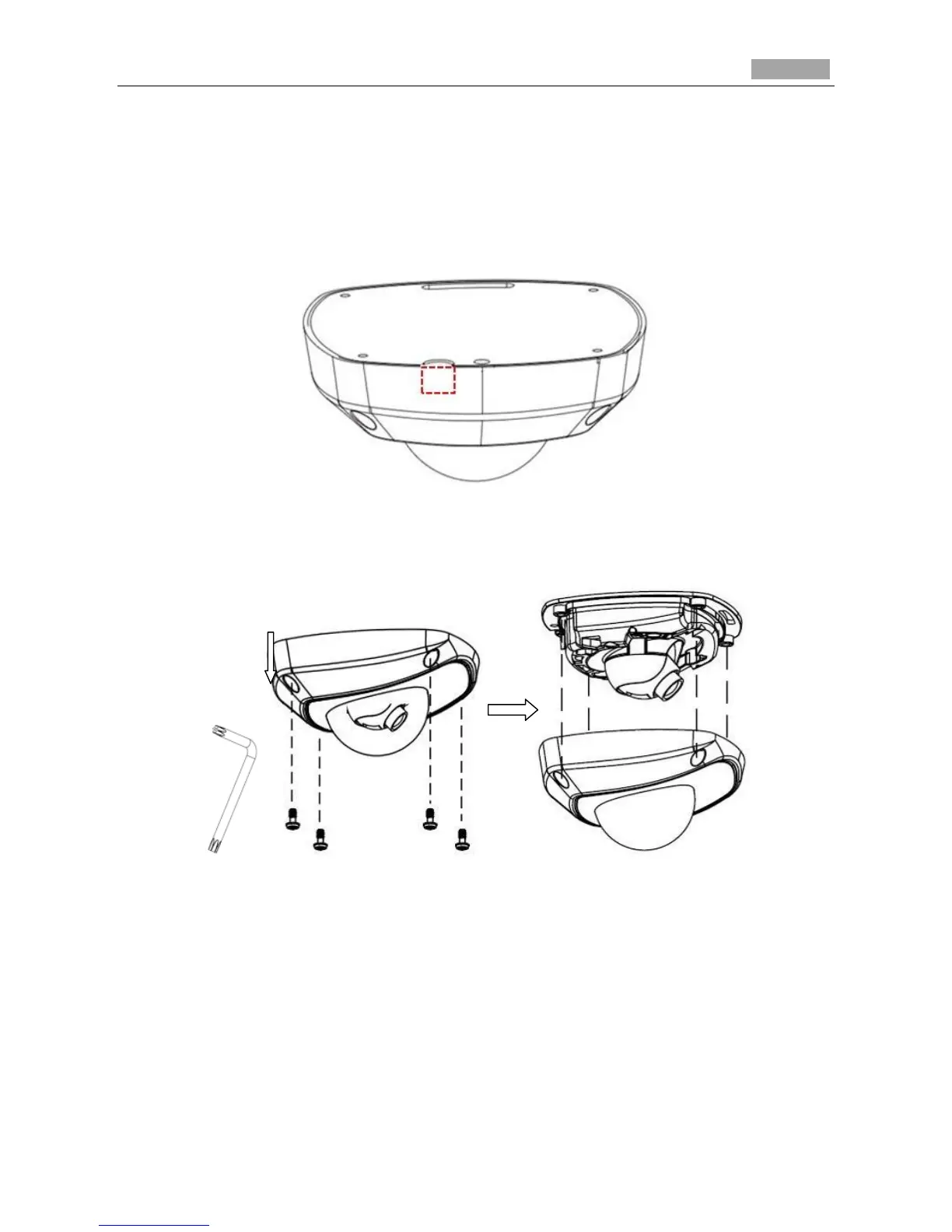

Figure 3-17 Side Clip
2. Loosen the set screws with a hex key (supplied) to remove the cover.
Figure 3-18 Remove the Cover
3. Fix the camera to the ceiling with the supplied screws.
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD7164-E Specifications

General

Type	IP security camera
PTZ control	Yes
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Dome
Product color	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 960, 1280 x 720 (HD 720)
Pan range	-15 - 15 °
Tilt angle range	0 - 90 °
Angle of rotation	15 °
Minimum illumination	0.01 lx
Field of view (FOV) angle	73 °
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focus adjustment	2.0
Fixed focal length	8 mm
Password protection type	User
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, QoS
Ethernet LAN (RJ-45) ports	1
DC output voltage	+12V
Power source type	PoE
Power consumption (max)	4 W
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	97.5 mm
Width	99.9 mm
Height	46.5 mm
Weight	250 g
