Installation Manual of Network Camera
61
Name
Description
LAN（PoE）
10M/100M Self-adaptive Ethernet Port(PoE
Supported)
AUDIO OUT/IN
Audio Out/In
CVBS，GND
Auxiliary video output
1A，1B
Alarm Out
D+，D-
RS-485 Interface
IN，GND
ALARM IN
DC12V
Power Supply Interface（12 VDC ）
Press RESET about 10s when the camera is powering on or rebooting to restore the default settings,
including the user name, password, IP address, port No., etc.
3.7.2 Installation
Steps:
1. Drill the screw holes and the cable hole according to the supplied drill template.
BOTTOM
Hole
2
2
1
1
1
1

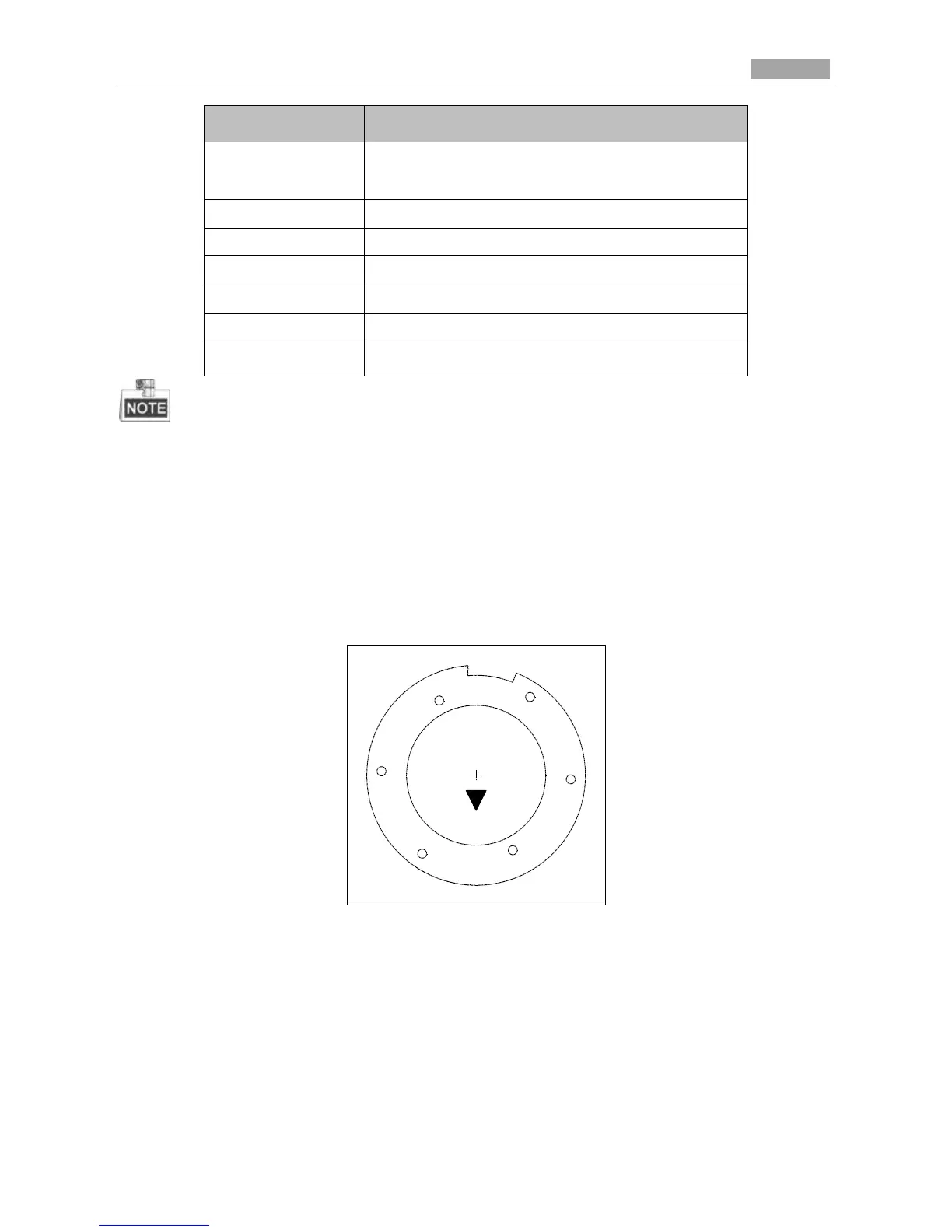

Figure 3-81 Drill Template
(Optional)Routing the cable from the side outlet instead of the cable hole drilled on the ceiling is
supported. Use a plier to remove the part shown in the figure below, and you can route the cables
from the side outlet.
