Installation Manual of Network Camera
124
6.3 Type III Cube Camera
6.3.1 Camera Description
1
2
3
4
5
6
7
8
9
10
11
12

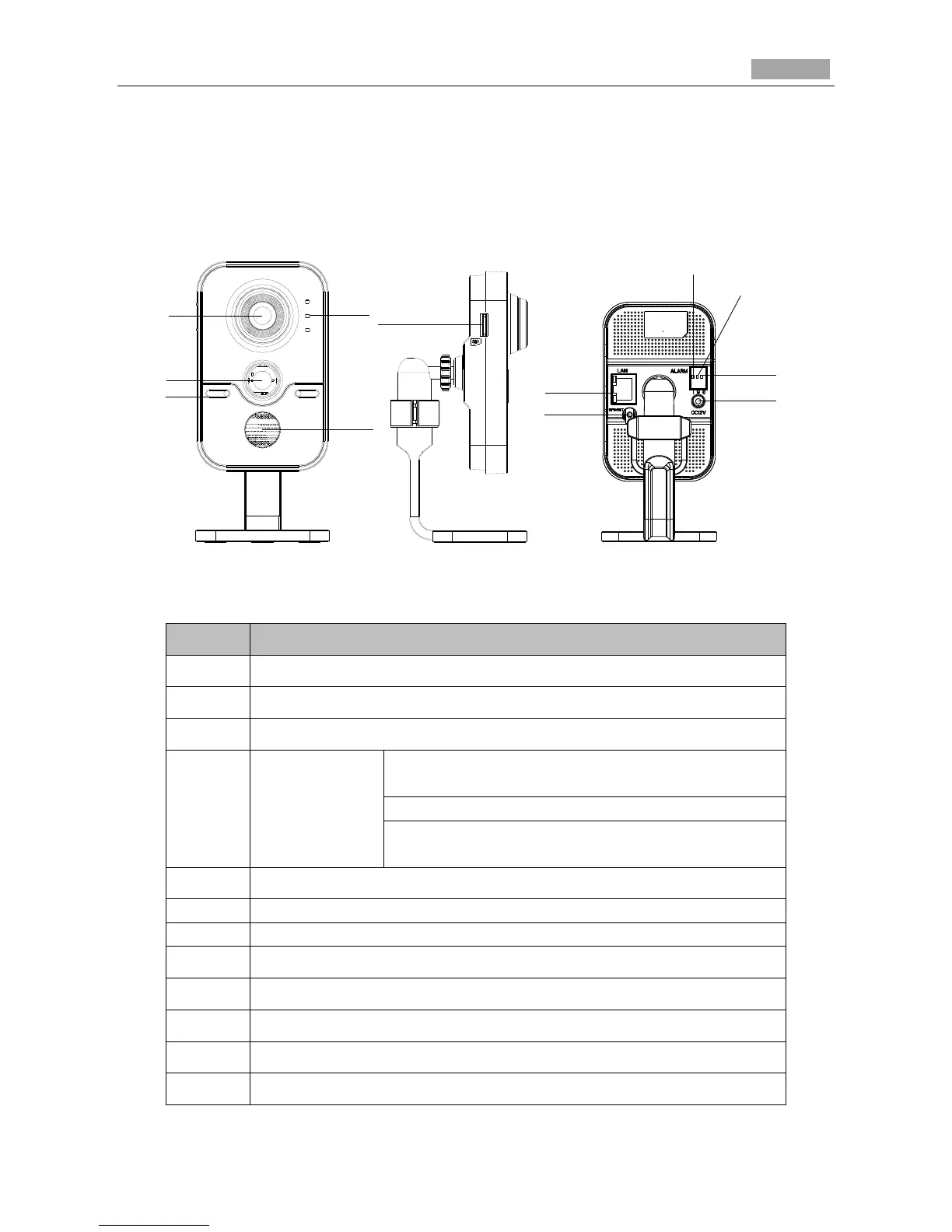

Figure 6-11 Overview
Table 6-4 Description
No.
Description
1
Lens
2
PIR(Passive Infrared) sensor
3
Microphone
4
Indicators
Alarm: Solid red when the camera is armed; Solid blue
when the camera is unarmed.
Status: Reserved
Link: Flashing amber when network is connected;
Unlit when network is disconnected
5
IR LED
6
SD Card Slot
7
10M / 100M self-adaptive Ethernet interface & PoE
8
WPS (Wi-Fi Protected Setup)/Reset Button
9
Alarm Input Interface
10
Grounding
11
Alarm Output Interface
12
Power Supply Interface (12 VDC)
