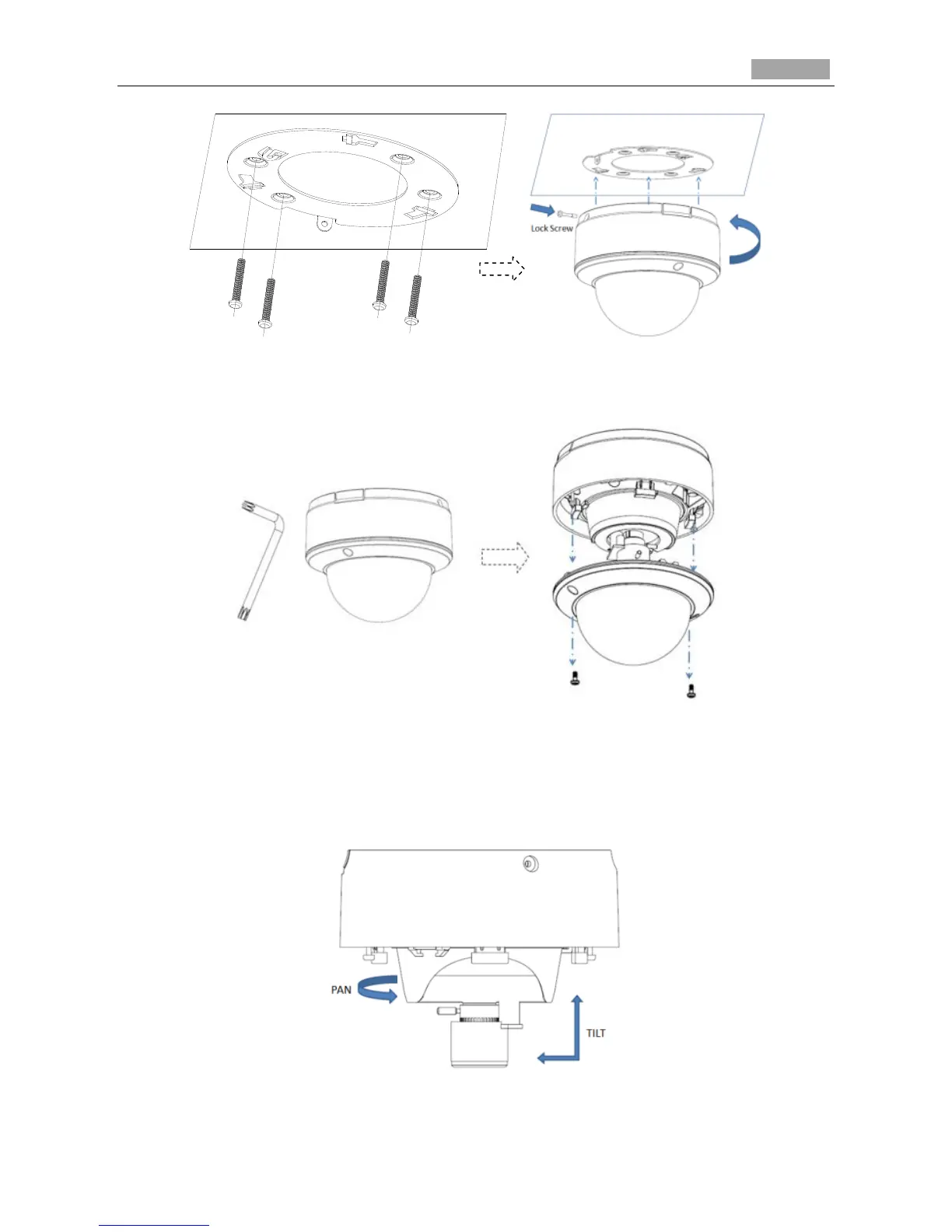

Figure 3-4 Mounting
4. Loosen the set screws with the hex key (supplied) to remove the bubble.
Figure 3-5 Disassembling
5. Connect the RCA analog video output with a monitor to view the image of the camera. Loosen the
lens set screw to adjust the angle of pan, tilt and rotation direction.
6. Adjust the focus to obtain a perfect image. Fasten the lens set screw.
Figure 3-6 Image Adjusting
