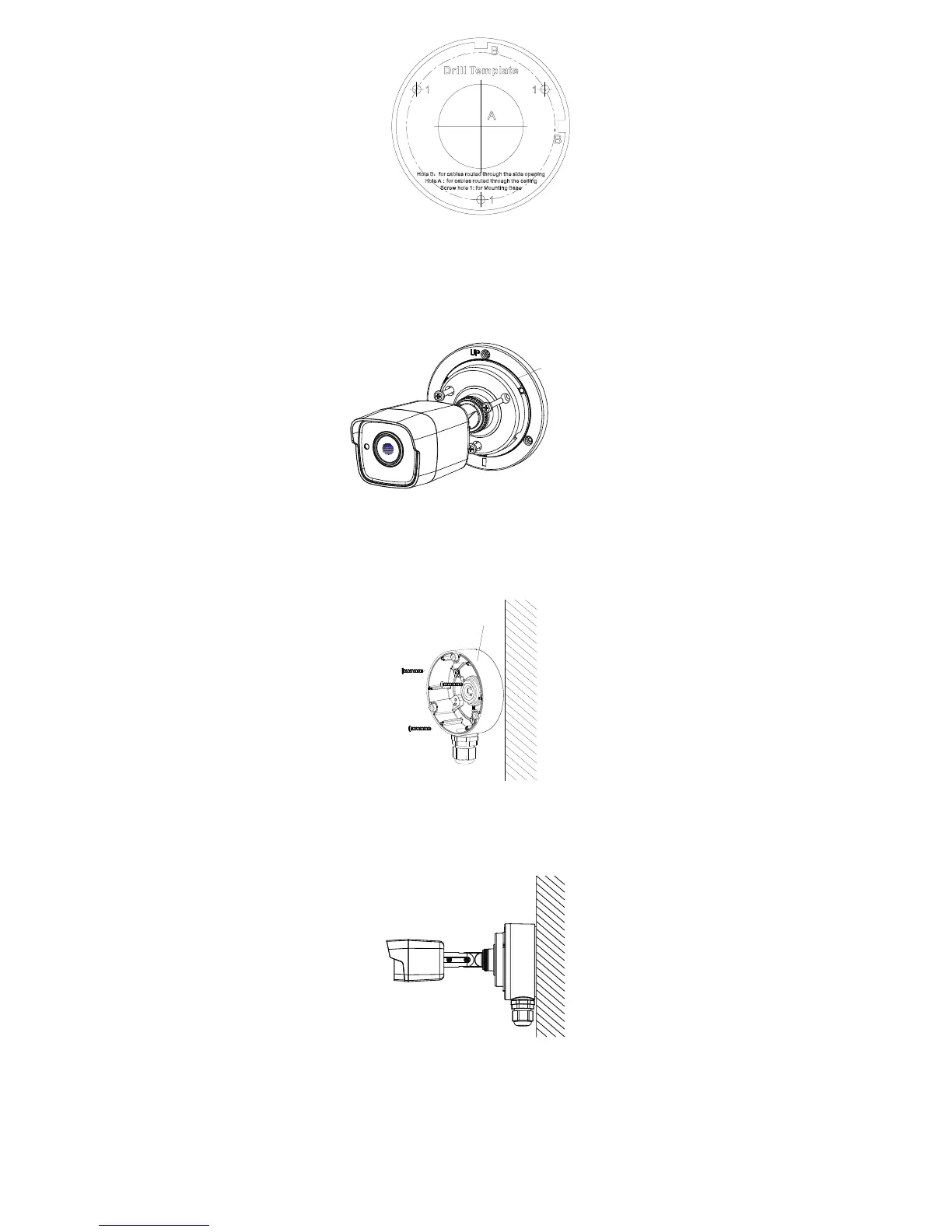

Figure 2-4 Drill Template of Junction Box
3. Take apart the junction box, and align the screw
holes of the bullet camera with those on the
Junction box’ cover.
4. Fix the camera on the junction box’s cover with
supplied screws.
Figure 2-5 Fix the Camera on the Junction Box’s Cover
5. Attach the junction box body to the ceiling/wall by
aligning the screw holes of the junction box.
6. Secure the junction box’s body with supplied screws
on the ceiling/wall.
Figure 2-6 Fix the Junction Box to the Wall/Ceiling
7. Route the cables through the bottom cable hole, or
the side cable hole of the junction box.
8. Combine the junction box cover with its body.
Figure 2-7 Fix the Junction Box Cover back to its
Body
9. Repeat the step 5 and 6 of 2.1.1 Ceiling/Wall
Mounting without Junction Box to complete the
installation.
To Next Page
