2.2 Installation of Type II Camera
2.2.1 Ceiling/Wall Mounting without Junction Box
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. Drill the screw holes according to the drill template,
and the cable hole (optional) on the ceiling.

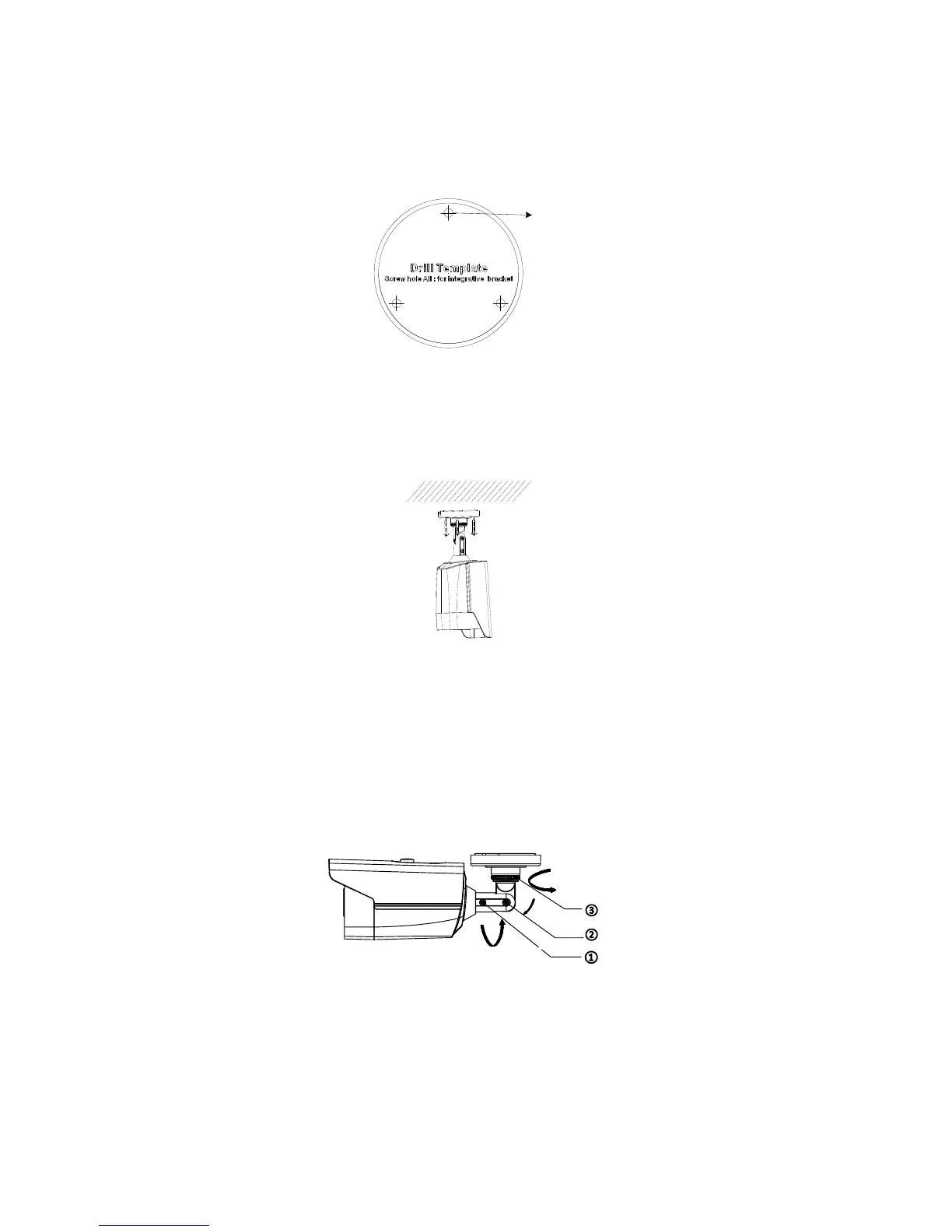

Figure 2-8 Drill Template
Note:
Drill the cable hole in the center of the drill template,
when adopting ceiling outlet to route the cable.
3. Route the cables through the cable hole (optional)
or the side opening.
4. Fix the camera to the ceiling with supplied screws.
Figure 2-9 Fix the Camera to the Ceiling
Note:
The supplied screw package contains self-tapping
screws, and expansion bolts.
For cement wall/ceiling, expansion bolts are
required to fix the camera. For wooden
wall/ceiling, self-tapping screws are required.
5. Connect the corresponding power cord, and video
cable.
6. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the surveillance angle.
Figure 2-10 3-Axis Adjustment
4). Loosen the No.1 adjusting screw to adjust the
pan position [0° to 360°]. Tighten the No.1
adjusting screw.
5). Loosen the No.2 adjusting screw to adjust the
tilting position [0° to 180°] . Tighten the No. 2
adjusting screw.
6). Loosen the No.3 adjusting screw to adjust the
rotation position [0° to 360°]. Tighten the No.3
adjusting screw.
