2.2.2 Ceiling/Wall Mounting with Junction Box
Before you start:
You need to purchase a junction box separately.
Steps:
1. Paste the drill template on the ceiling/wall.
2. Drill screw holes and the cable hole (optional) in the
ceiling/wall according to the holes of the drill
template.

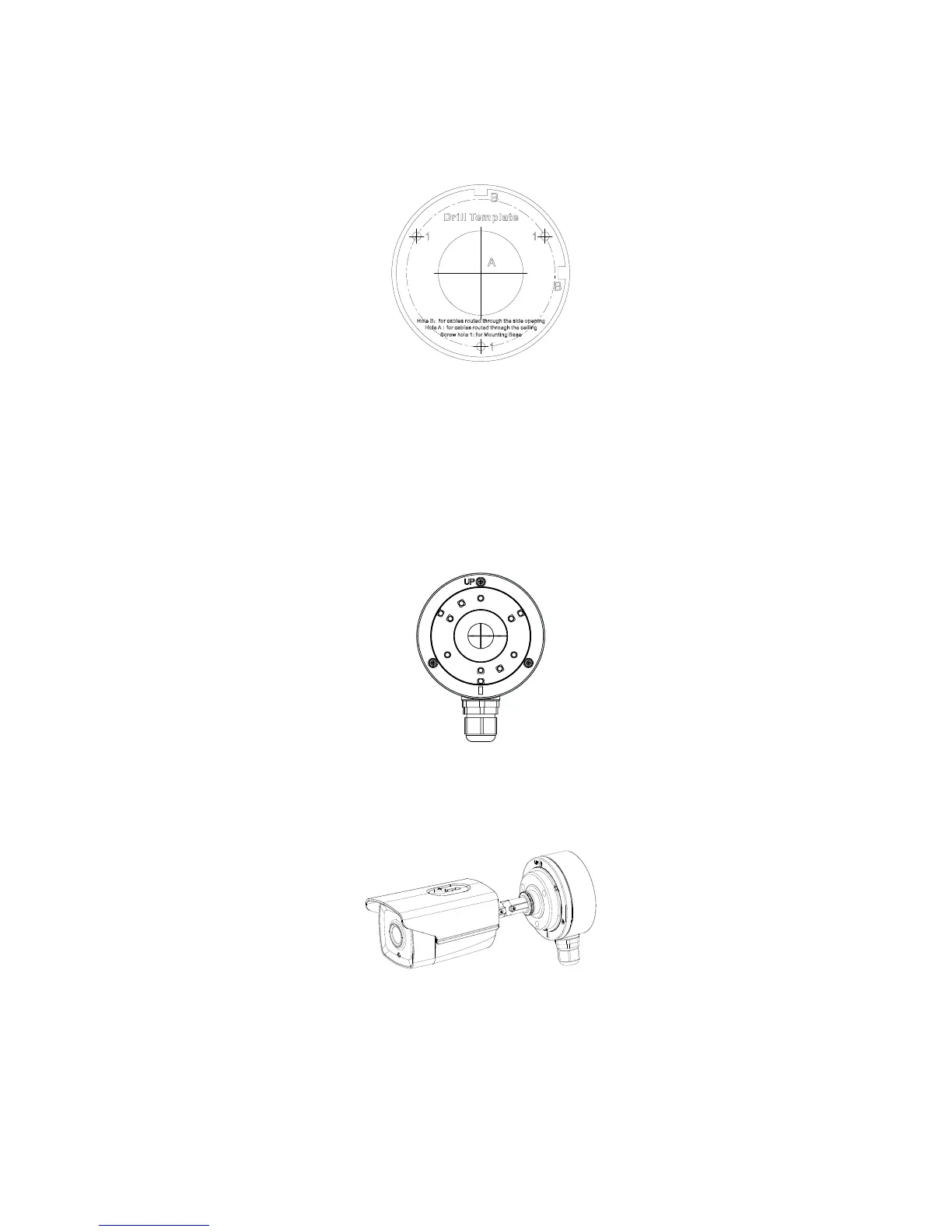

Figure 2-11 Drill Template
Note:
Drill the cable hole, when adopting ceiling outlet to
route the cable.
3. Take apart the junction box, and align the screw
holes of the bullet camera with those on the
Junction box’s cover.
4. Fix the camera on the junction boxs cover with
three supplied screws.
5. Secure the junction box’s body with supplied screws
on the ceiling/wall.
Figure 2-12 Install the Junction Box
6. Route the cables through the bottom cable hole, or
the side cable hole of the junction box.
7. Combine the junction box cover with its body with
supplied screws on the junction boxs cover.
Figure 2-13 Combine the Junction Boxs Cover with its
Body
8. Repeat the steps 5 to 6 of 2.2.1 Ceiling/Wall
Mounting without Junction Box to complete the
installation.
2.3 Ceiling Mounting of Type III Camera
Steps:
1. Paste the dill template to the ceiling.
2. Drill the screw holes and cable hole (optional) in the
ceiling according to the drill template.
