User Manual of E Series Network Mini PTZ camera
© Hikvision
24
 Hold down the left mouse button and drag the mouse to the upper left on the
live video. The corresponding position will be moved to the center of the live
video and zoomed out.
 One-touch Patrol
Click to call one-touch patrol. For detailed information of setting one-touch
patrol, refer to 4.4.5 One-touch Patrol.
 One-touch Park
Click to save the current view as the preset No. 32 and start park at the the
current position.
4.4.3 Setting / Calling a Preset
Purpose:
A preset is a predefined image position. For the defined preset, you can click the calling button to
quickly view the desired image position.
 Setting a Preset:
Steps:
1. In the PTZ control panel, select a preset number from the preset list.

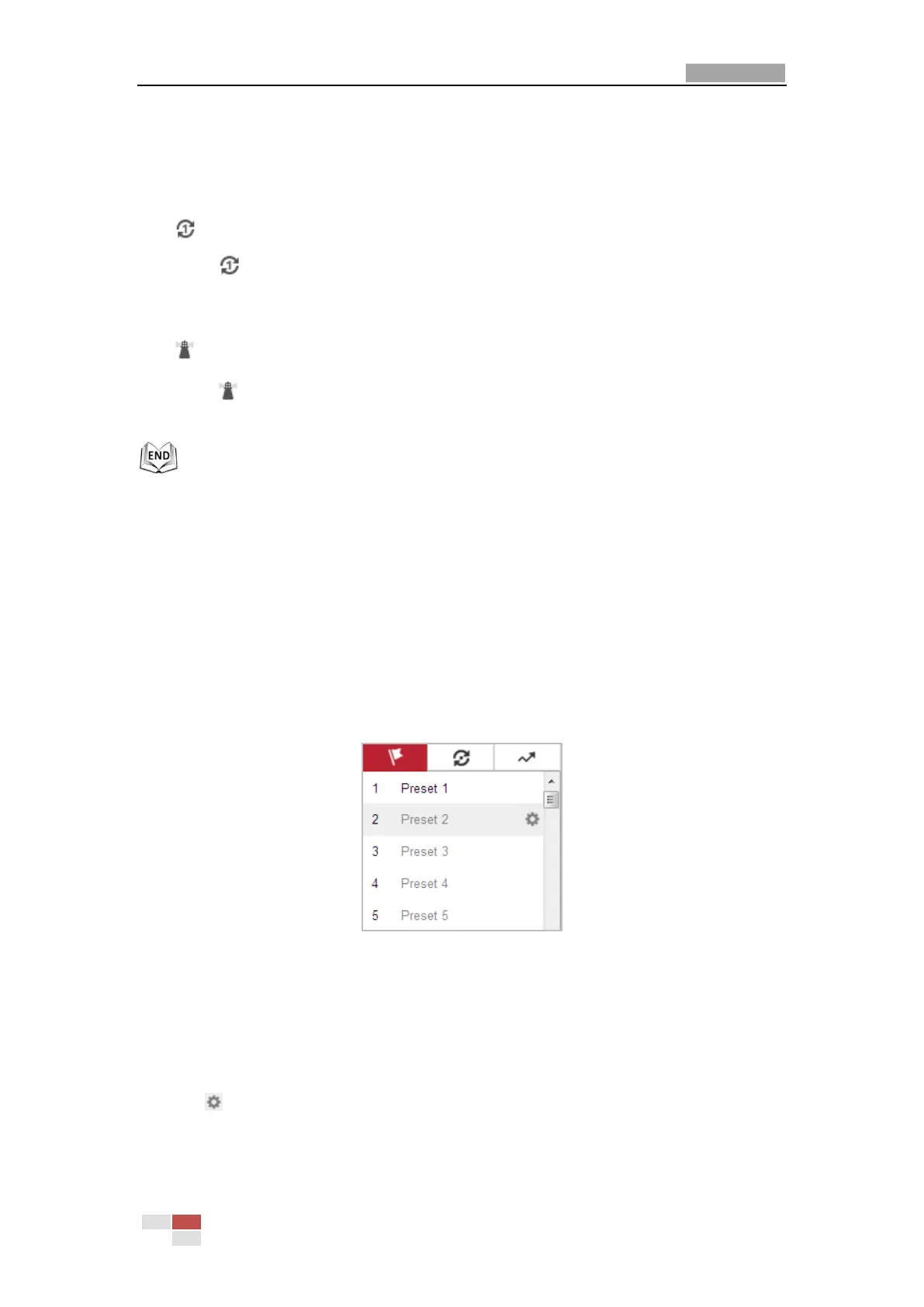

Figure 4-6 Setting a Preset
2. Use the PTZ control buttons to move the lens to the desired position.
• Pan the mini PTZ camera to the right or left.
• Tilt the mini PTZ camera up or down.
• Zoom in or out.
• Refocus the lens.
3. Click to finish the setting of the current preset.
4. Edit a preset name by double clicking on the default name such as preset 1. (The pre-defined
presets are named already and not configurable. Please refer to the user manual for detailed
function description.)
