Note
The front panel of DS-3E1309P switch is similar to that of DS-3E1105P, with dierences on 8
100Mbps PoE RJ45 ports, and that No.9 port is gigabit RJ45 port.

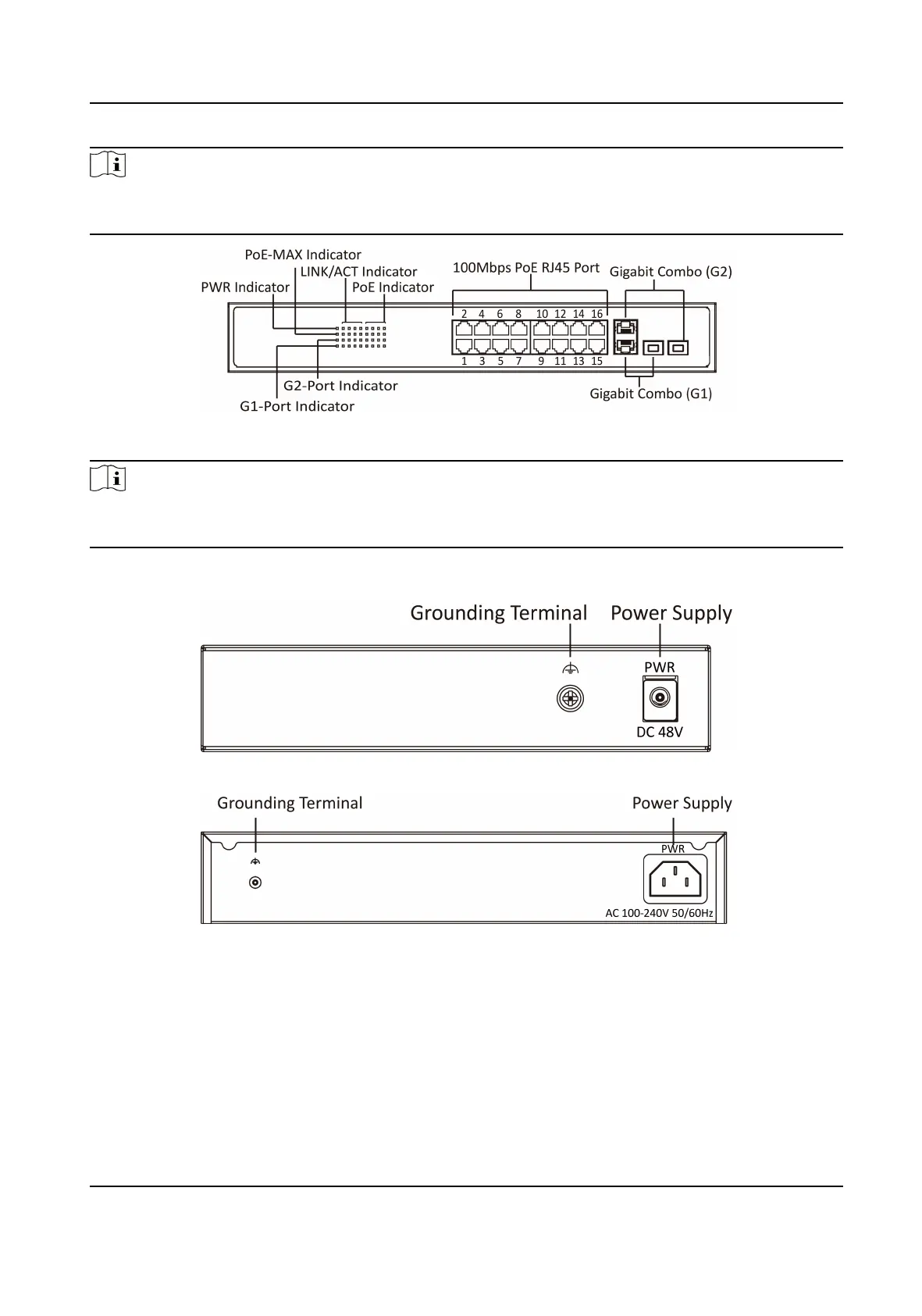

Figure 1-2 DS-3E1318P Series
Note
The front panel of DS-3E1326P switch is similar to that of DS-3E1318P, with dierences on 24
100Mbps PoE RJ45 ports, 24 LINK/ACT, and 24 PoE indicators.
Rear Panel
Figure 1-3 DS-3E1X05/09P Series
Figure 1-4 DS-3E1318/26P Series
100 Mbps PoE Switch Quick Start Guide
2
