HIKVISION DS-7100NI-Q1 Series Quick Start Guide

Network Video Recorder Quick Start Guide
13
No.
Name
Description
DS-7700NI-K4.
2
AUDIO OUT
RCA connector for audio output.
3
LINE IN
RCA connector for audio input.
4
HDMI
HDMI video output connector.
5
USB 3.0 interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
6
RS-232 Interface
Connector for RS-232 devices.
7
VGA
DB9 connector for VGA output. Display local video output and menu.
8
RS-485 Interface
Half-duplex connector for RS-485 devices.
9
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
10
GROUND
Ground (needs to be connected when NVR starts up).
11
AC 100V ~ 240V
100V to 240VAC power supply.
12
Power Switch
Switch for turning on/off the device.
13
Network Interfaces with
PoE function (supported
by DS-7700NI-I4/P and
DS-7700NI-K4/P)
Network interfaces for the cameras and to provide power over Ethernet.
1.2.3 DS-7600NI Series
DS-7600NI-I2(/P) and DS-7600NI-K2 (/P)

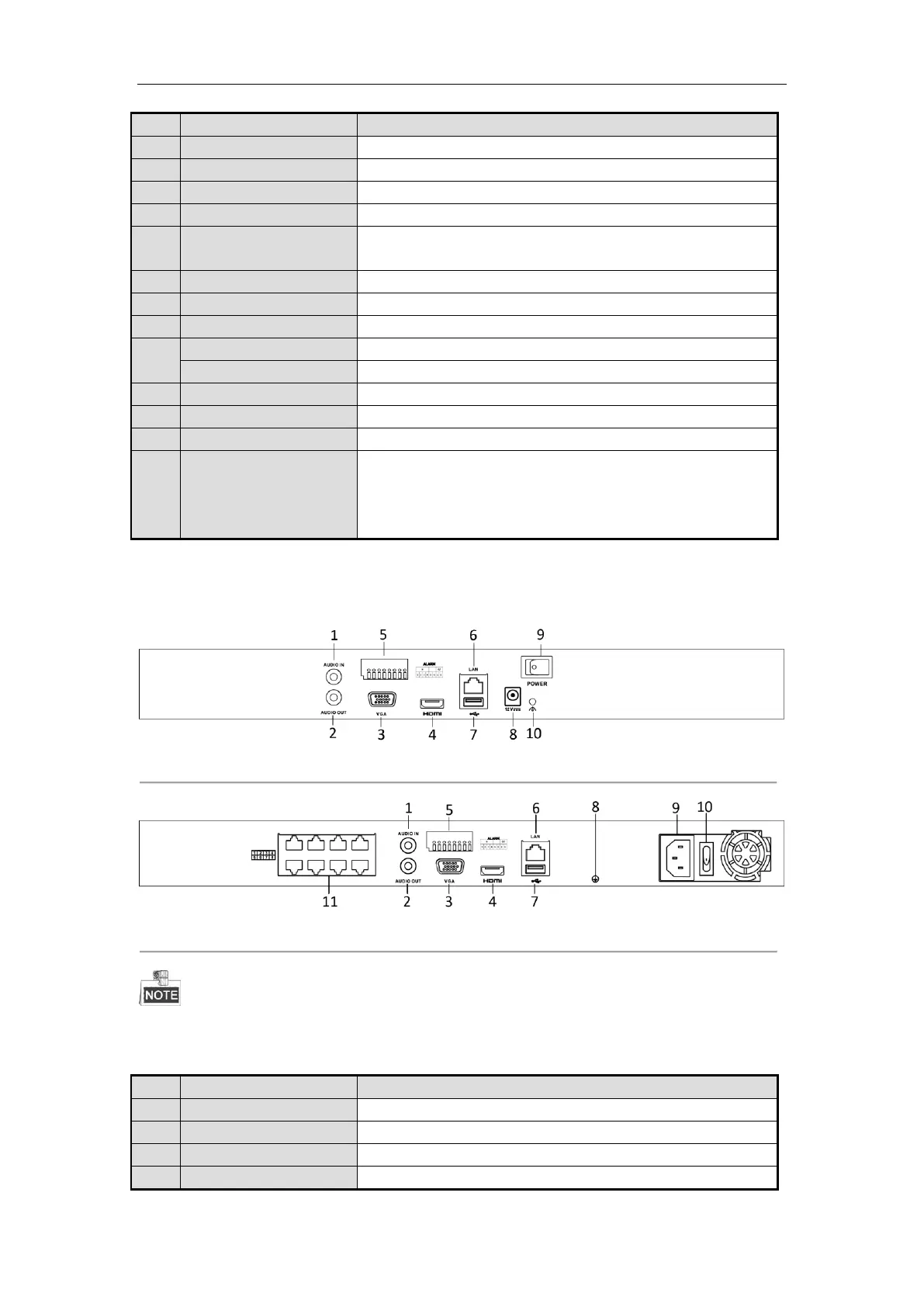

Figure 1. 10 DS-7600NI-I2 and DS-7600NI-K2 Series
Figure 1. 11 DS-7600NI-I2/8P and DS-7600NI-K2/8P Series
The DS-7616NI-I2/16P and DS-7632NI-I2/16P provide 16 network Interfaces with PoE function.
Table 1. 6 Panel Description
No.
Name
Description
1
Audio In
RCA connector for audio input.
2
Audio Out
RCA connector for audio output.
3
VGA Interface
DB9 connector for VGA output. Display local video output and menu.
4
HDMI Interface
HDMI video output connector.
