Redundant Record: Enabling redundant record means you save the record in the
redundant HDD. See Chapter 5.8 Configuring Redundant Recording.
Record Audio: Enable this feature to record the sound and disable it to record the video
without sound.
Video Stream: Main stream, Sub-stream and Dual-stream are selectable for recording.
When you select sub-stream, you can record for a longer time with the same storage
space.

The Redundant Record option is only available when the HDD mode is Group.

Redundant HDD is required for the redundant record function. For detailed information, see
Chapter 14.3.2 Setting HDD Property.

For network cameras, the parameters of Main Stream (Event) are not editable.
Step 5 Click Apply to save the settings.
Step 6 Optionally, you can click Copy to copy the settings to other analog channels if needed.

For -F series DVR, the analog signal inputs can be recognized automatically and mixed
randomly. So you can copy the same settings of the selected analog camera to any other
analog channel.

For other series, you can copy the same settings to the cameras with the same signal, e.g.,
the channel No. 1-3 connect to the HDTVI cameras, and the channel No.4 connects to an
analog camera, and then the settings of channel No. 1 can be only copied to channel 2 and
3.

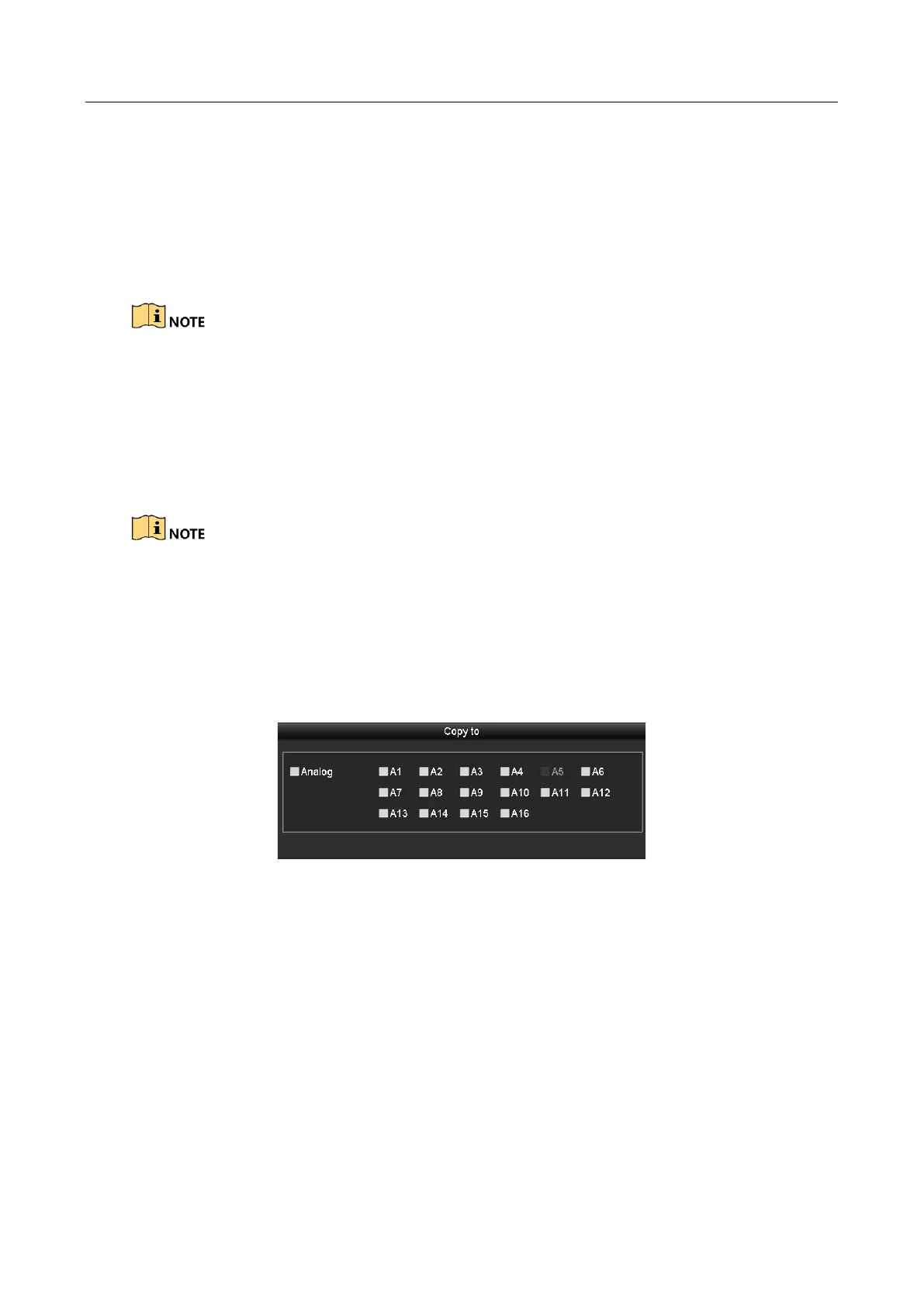

Figure 5-5 Copy Camera Settings
Step 7 Set encoding parameters for sub-stream.
1) Select the Sub-Stream tab.

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
