HIKVISION DS-7116HGHI-F1 User Manual

Digital Video Recorder User Manual
68

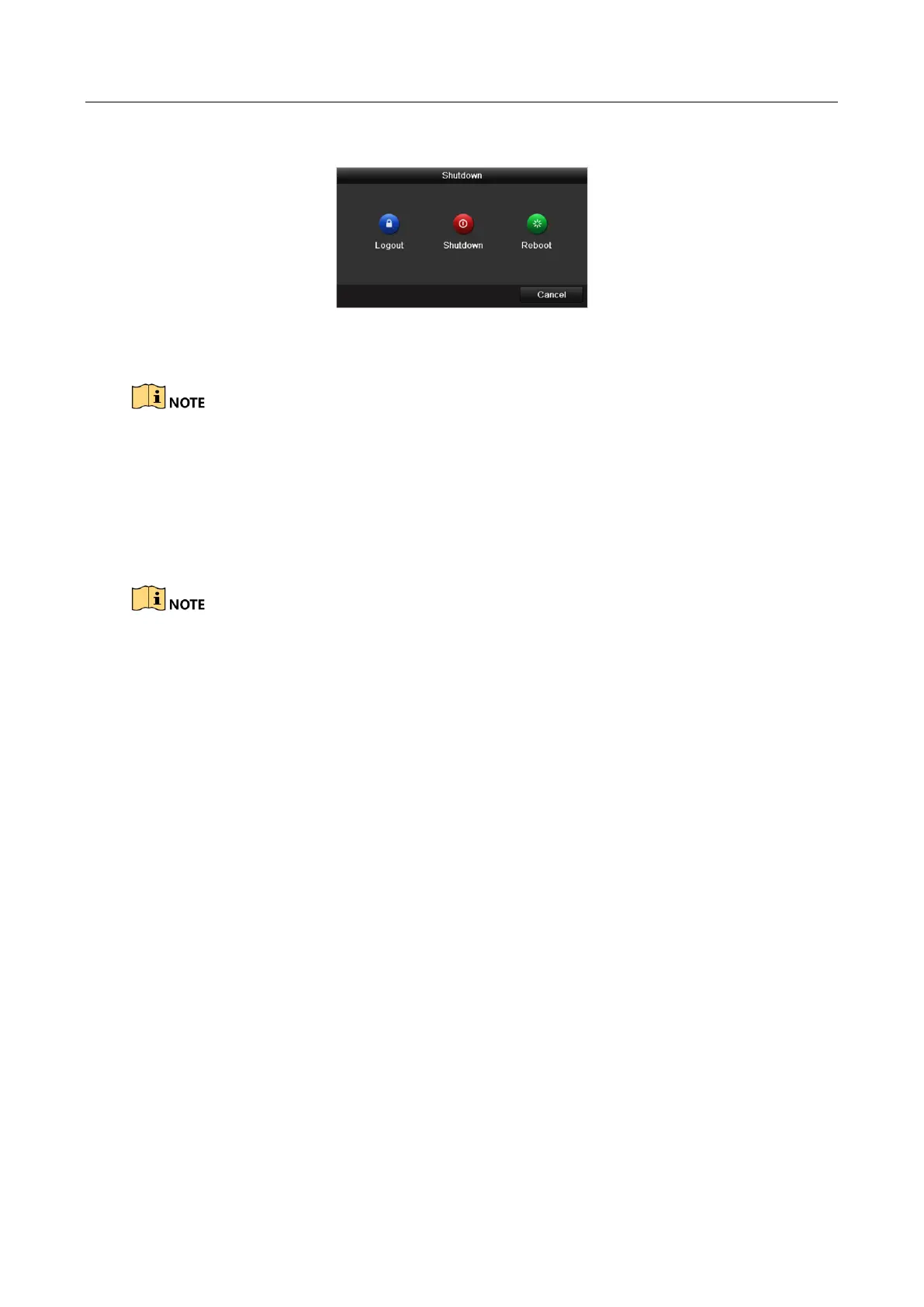

Menu > Shutdown
Figure 2-35 Logout
Step 2 Click Logout.
After you have logged out of the system, menu operation on the screen is invalid. It is required to
input a user name and password to unlock the system.
2.6 Adding and Connecting the IP Cameras
2.6.1 Activating the IP Camera
The IP camera connection is not supported by DS-7100 series DVR.
Purpose
Before adding the camera, make sure the IP camera to be added is in active status.
Step 1 Select the Add IP Camera option from the right-click menu in live view mode or click
Menu> Camera> IP Camera to enter the IP Camera Management interface.
For the IP camera detected online in the same network segment, the Security status shows
whether it is active or inactive.

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
