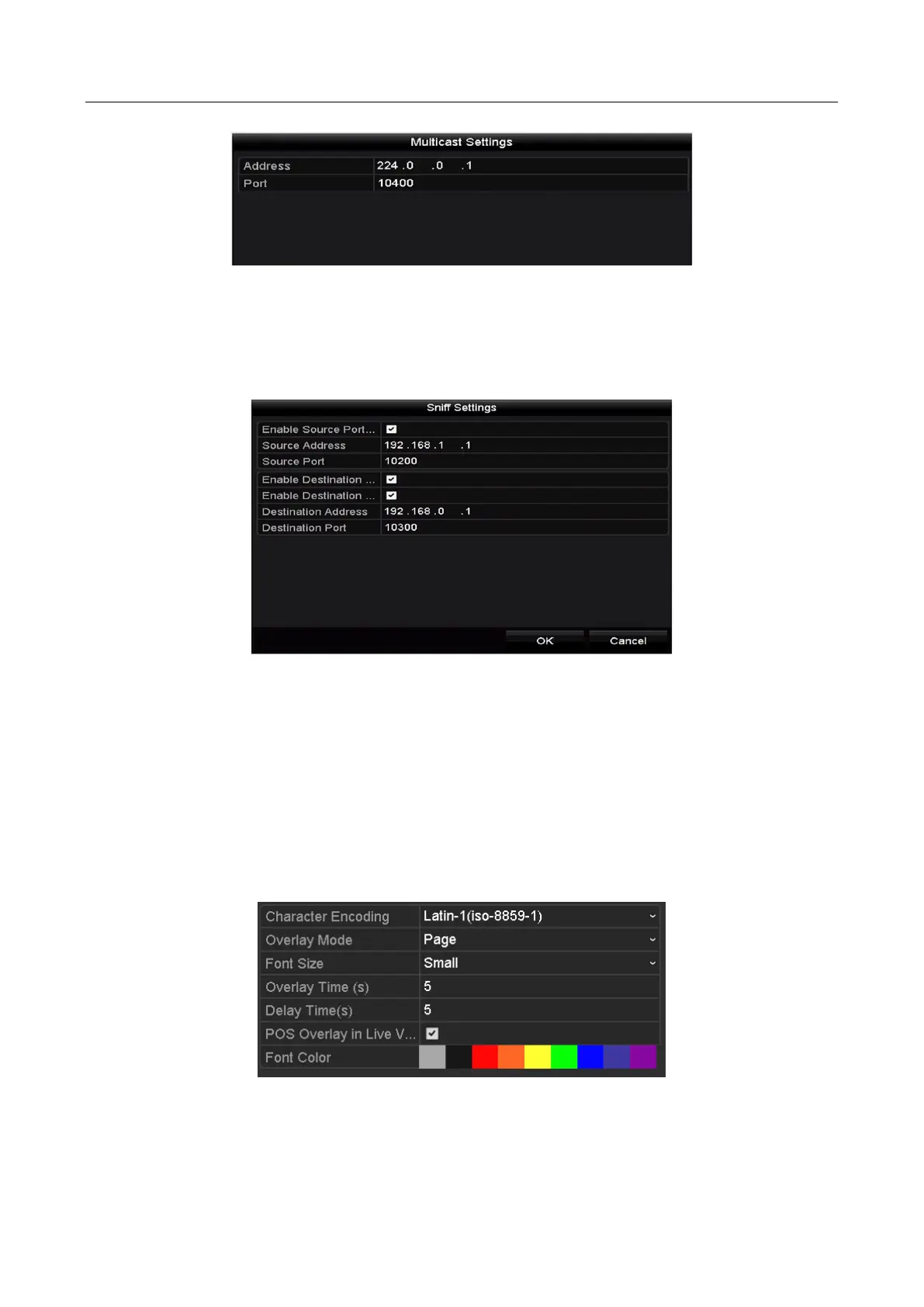

Figure 9-10 Multicast Settings
 Sniff Connection
Connect the DVR and the POS machine via Sniff. Configure the source address and
destination address settings.
Figure 9-11 Sniff Settings
Step 7 Set other parameters of characters overly.
4) Select the character encoding format from the drop-down list.
5) Select the overlay mode of the characters to display in scrolling or page mode.
6) Select the font size to small, medium or large.
7) Set the overlay time of the characters. The value ranges from 5 to 3600 sec.
8) Set the delay time of the characters. The value ranges from 5 to 3600 sec.
9) (Optional) Check the checkbox to enable the POS Overlay in Live View.
10) Select the font color for the characters.
Figure 9-12 Overlay Character Settings

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
