HIKVISION DS-7116HGHI-F1 User Manual

Digital Video Recorder User Manual
200
2) Select your Area/Country in the dropdown list.
3) Enter the Device Domain Name. You can use the alias you registered in the HiDDNS
server or define a new device domain name. If a new alias of the device domain name
is defined in the DVR, it will replace the old one registered on the server. You can
register the alias of the device domain name in the HiDDNS server first and then enter
the alias to the Device Domain Name in the DVR. You can also enter the domain name
directly on the DVR to create a new one.

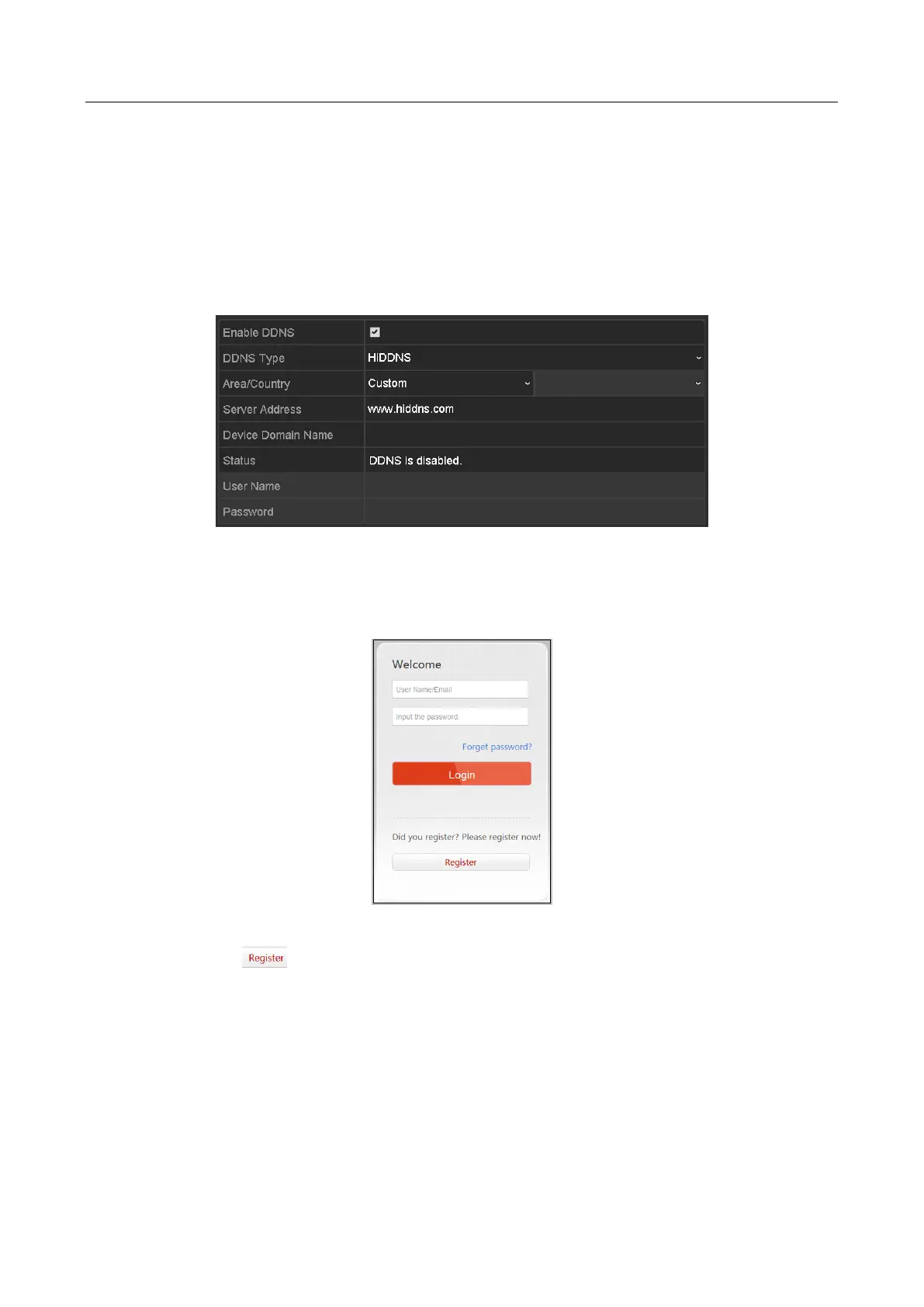

Figure 12-8 HiDDNS Settings Interface
 Register the device on the HiDDNS server.
1) Go to the HiDDNS website: www.hiddns.com.
Figure 12-9 Login Interface
2) Click to register an account if you do not have one and use the account to
log in.

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
