Digital Video Recorder User Manual
75
Step 2 Check the checkbox to select different signal input types: HD/CVBS and IP. If you select
HD/CVBS, four kinds of analog signal inputs including HDTVI, AHD, HDCVI and CVBS can be
connected randomly for the selected channel. If you select IP, IP camera can be connected
for the selected channel.

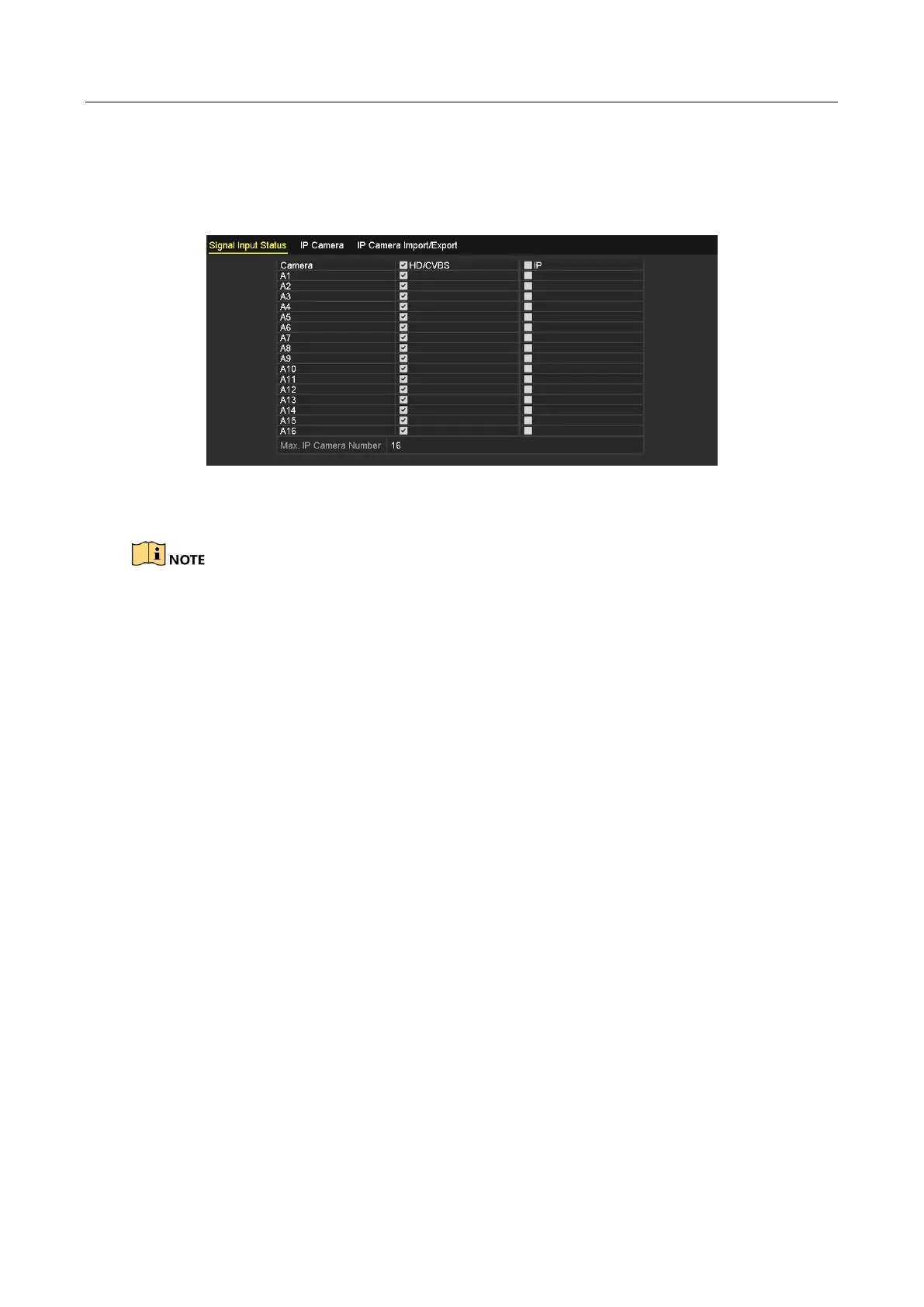

Figure 2-46 Configure Signal Input Type
Step 3 Click Apply to save the settings.
The AHD signal input is only supported by the -F series DVR.
For -E series DVR, there is no signal input configuration interface. Each two video channels
are grouped in sequence, e.g., CH01 and CH02, CH03 and CH04...; and each two channels in
the same group must be connected with the same type of video source (HDTVI or CVBS).
For all the F series DVR, four kinds of analog signal inputs including HDTVI (including 3 MP,
1080p and 720p signal), AHD, HDCVI and CVBS can be connected. The analog signal inputs
can be recognized automatically and can be mixed randomly.
For HQHI series DVR, the 3 MP signal can be accessed for the first channel of DVR with 4-ch
video inputs, the first 2 channels of DVR with 8-ch video inputs and the first 4 channels of
DVR with 16-ch video inputs.
For all the F series DVR, when HDTVI, AHD, or HDCVI input is connected, the information
including the resolution and frame rate (e.g., 720P25) will be overlaid on the bottom right
corner of the live view for 5 seconds. When CVBS input is connected, the information such
as NTSC or PAL will be overlaid on the bottom right corner of the live view for 5 seconds.
When there is no video signal for the channel, the connectable video signal type message
will not be displayed on the screen. When the unsupported signal input is connected, no
video message is displayed on the screen. You can refer to the specifications for the
supported resolution of the analog signal input types.
For F series DVR, you can view the max. IP camera accessible number in the Max. IP
Camera Number text field. For DS-7300/8100/9000HUHI-F/N and DS-7300/8100HQHI-F/N
series DVR, disabling one analog channel will add one IP channel. For
DS-7300/8100HUHI-F/N and DS-7300/8100HQHI-F/N series, the accessible IP channels are
X+2 (X refers to the disabled analog channel or channels of the DVR.). For
DS-9004HUHI-F8/N series, the accessible IP channels are X+6 (X refers to the disabled

Table of Contents

Other manuals for HIKVISION DS-7116HGHI-F1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7116HGHI-F1 and is the answer not in the manual?

HIKVISION DS-7116HGHI-F1 Specifications

General IconGeneral
Bit rate64 Kbit/s
CertificationCE
Product colorWhite
Channels quantity16 channels
Maximum frame rate30 fps
Audio output channels2.0 channels
Audio formats supportedG.711 μ-law
Multi-display supportedYes
Network connection typeRJ-45
Maximum video resolution1920 x 1080 pixels
Video compression formatsH.264, H.264+
Playback resolutions supported1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input1x RCA
BNC input ports16
USB 2.0 ports quantity2
Number of users128 user(s)
Ethernet interface typeFast Ethernet
Supported network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
DC voltage12 V
Power supply typeDC
Power consumption (typical)20 W
Weight and Dimensions IconWeight and Dimensions
Depth210 mm
Width285 mm
Height45 mm
Weight1200 g
