HIKVISION DS-7116NI-SN/P User Manual

User Manual of Network Video Recorder
99

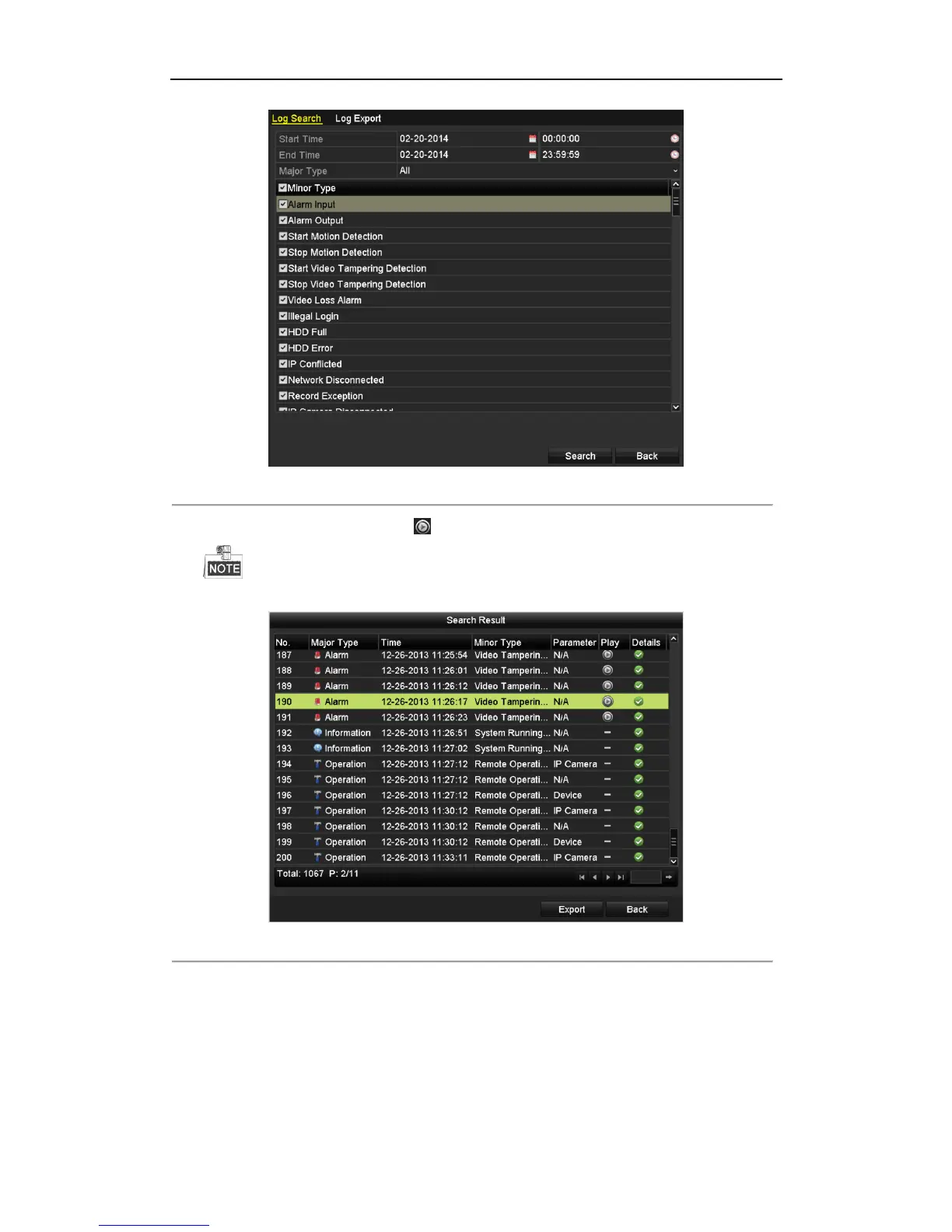

System Log Search Interface
3. Choose a log with record file and click button to enter Playback interface.
If there is no record file at the time point of the log, the message box “No result found” will pop up.
Result of System Log Search
4. Playback interface.
The toolbar in the bottom part of Playback interface can be used to control playing process.

HIKVISION DS-7116NI-SN/P Specifications

General

Number of users	128 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	48 V
Power consumption (max)	35 W
Power consumption (typical)	6 W
Product color	White
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	205 mm
Width	255 mm
Height	45 mm
Weight	1000 g
