User Manual of Network Video Recorder
44
Protocol Name: Edit the name for the custom protocol.
Enable Substream: If the network camera does not support sub-stream or the sub-stream is not needed
leave the checkbox empty.
Type: The network camera adopting custom protocol must support getting stream through standard RTSP.
Transfer Protocol: Select the transfer protocol for the custom protocol.
Port: Set the port No. for the custom protocol.
Path: Set the resource path for the custom protocol. E.g., ch1/main/av_stream.
The protocol type and the transfer protocols must be supported by the connected network camera.
After adding the customized protocols, you can see the protocol name is listed in the dropdown list, please refer to
Figure 2. 29.

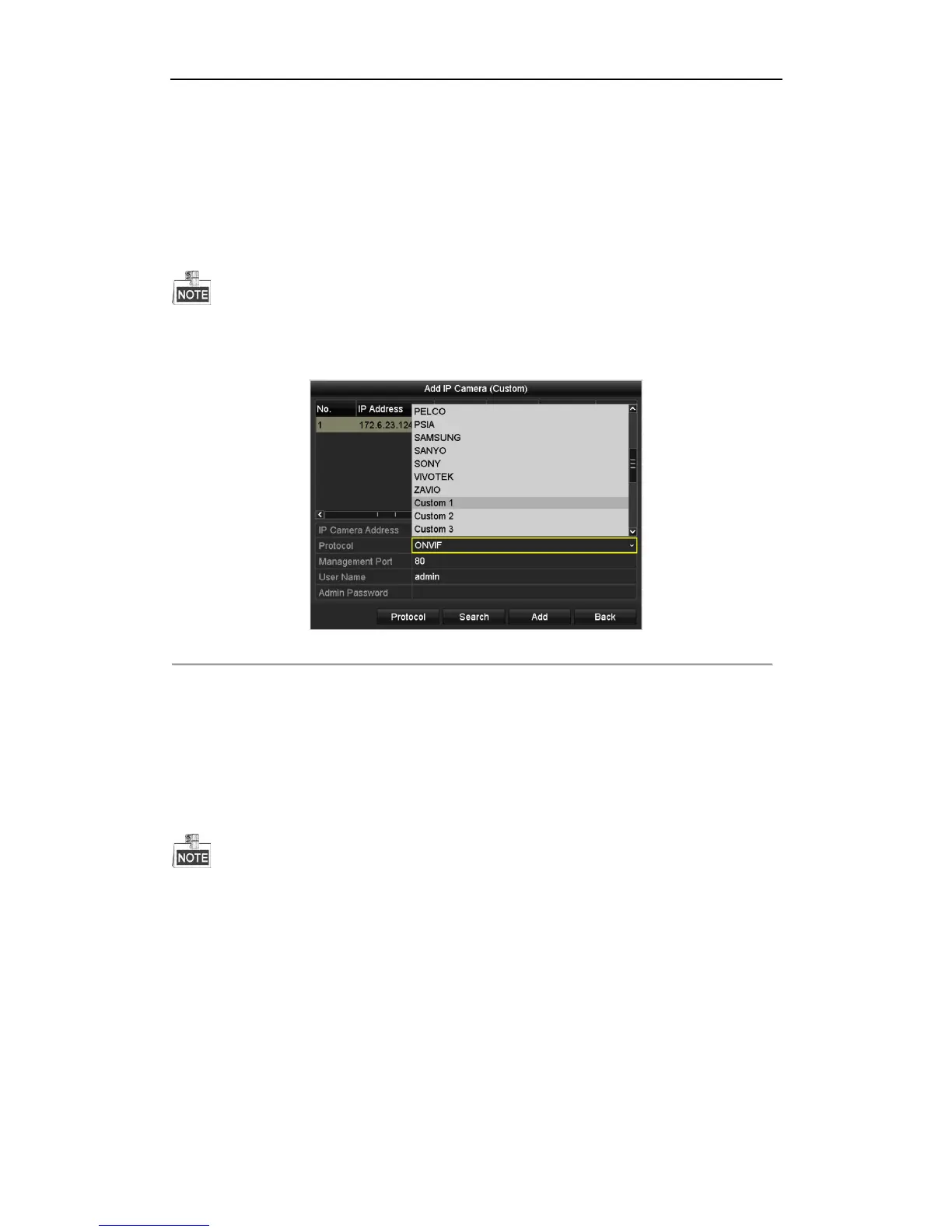

Figure 2. 29 Protocol Setting
3. Choose the protocols you just added to validate the connection of the network camera.
2.5.4 Editing IP Cameras Connected to the PoE or the
Built-in Switch Interfaces
This section is applicable to DS-7600NI-SE/N(P) models only.
As the adding camera steps for the built-in switch are the same with the ones for the PoE interfaces, we take
the instruction of connecting to the network cameras via the PoE interface as an example.
The PoE interfaces enable the NVR system to pass electrical power safely, along with data, on Ethernet cabling to
the connected network cameras.
For the NVR which supports the PoE function, it can connect to the network cameras directly via the PoE
interfaces. And if you disable the PoE interface, you can also connect to the online network cameras.
Example:
As for DS-7608NI-SE/P NVR, when you want to connect 2 online cameras and connect 6 network cameras via
PoE interfaces, you must disable 2 PoE interfaces in the Edit IP Camera menu.
Add Cameras for NVR Supporting PoE Function:
