User Manual of Network Video Recorder
105

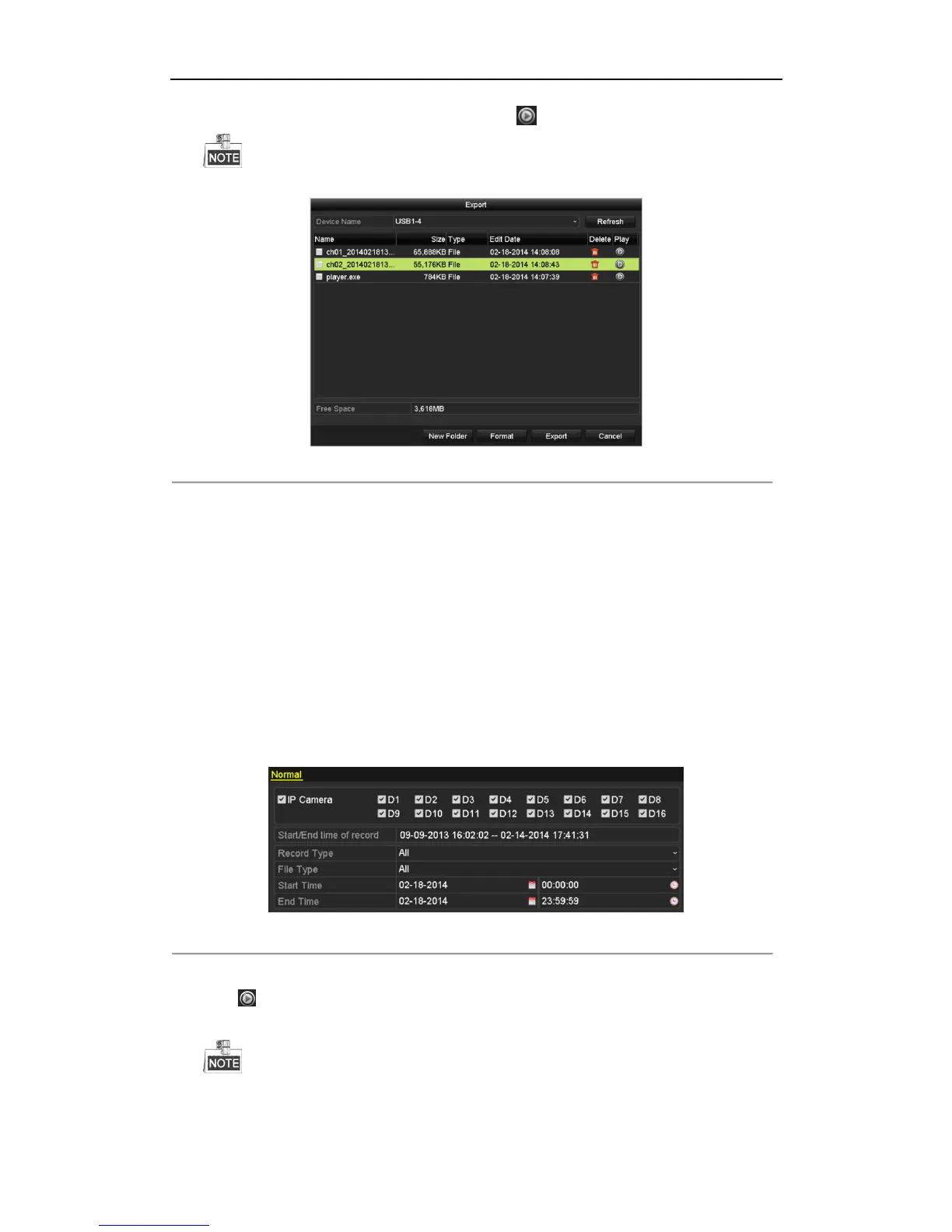

Choose the record file in Export interface and click button to check it.
The Player player.exe will be exported automatically during record file export.
Figure 7. 3 Checkup of Quick Export Result Using USB1-1
7.1.2 Backing up by Normal Video Search
Purpose:
The record files can be backup to various devices, such as USB devices (USB flash drives, USB HDDs, USB
writer) and SATA writer.
Backup using USB flash drives and USB HDDs
Steps:
1. Enter Export interface.
Menu>Export>Normal
2. Set search condition and click Search button to enter the search result interface.
Figure 7. 4 Normal Video Search for Backup
3. Select record files you want to back up.
Click to play the record file if you want to check it.
Check the checkbox before the record files you want to back up.
The size of the currently selected files is displayed in the lower-left corner of the window.

HIKVISION DS-7116NI-SN/P Specifications

General

Number of users	128 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	48 V
Power consumption (max)	35 W
Power consumption (typical)	6 W
Product color	White
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	205 mm
Width	255 mm
Height	45 mm
Weight	1000 g
