User Manual of Network Video Recorder
106

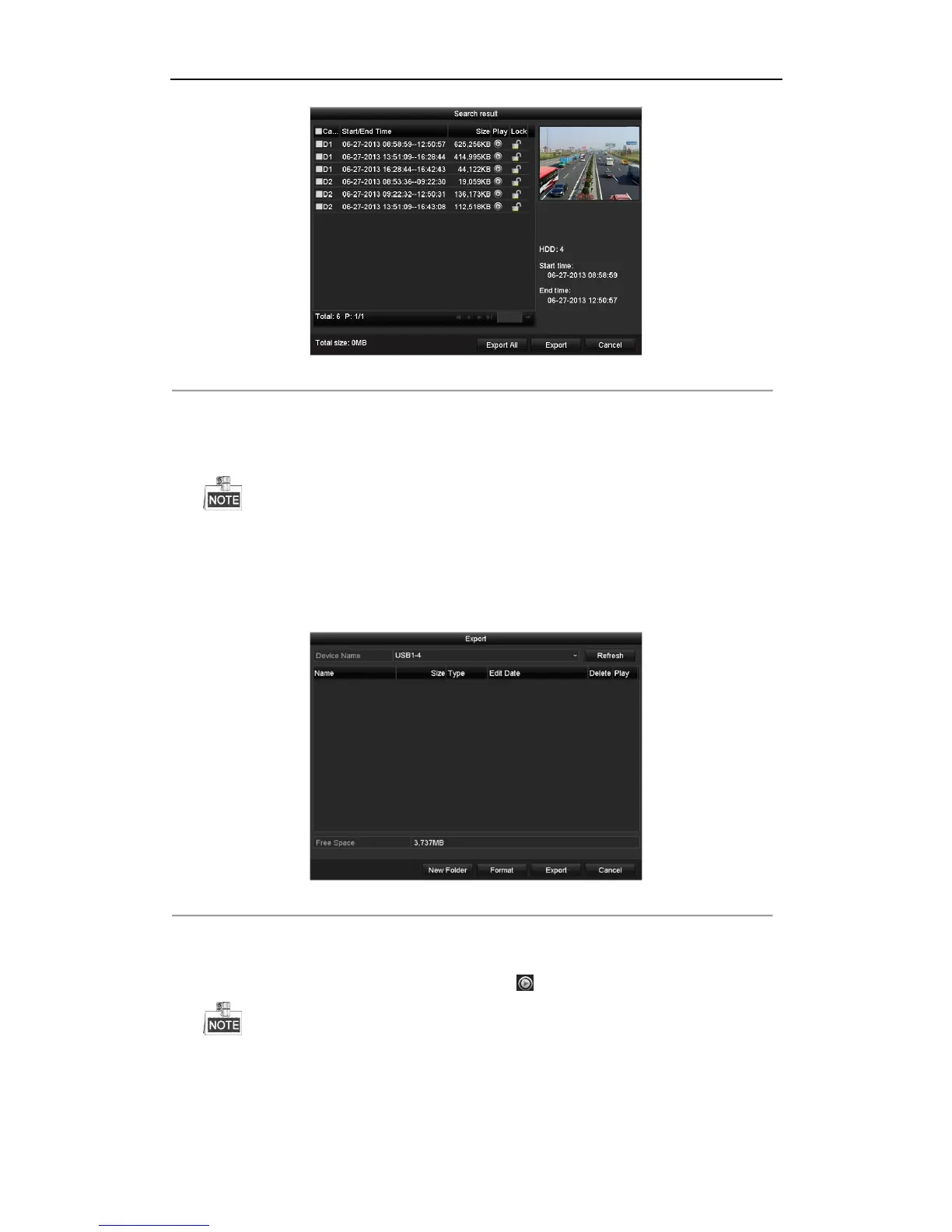

Figure 7. 5 Result of Normal Video Search for Backup
4. Export.
Click Export All button to export all the recording files.
Or you can select recording files you want to back up, and click Export button to enter Export interface.
If the inserted USB device is not recognized:
• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.
You can also format USB flash drives or USB HDDs via the device.
Figure 7. 6 Export by Normal Video Search using USB Flash Drive
Stay in the Exporting interface until all record files are exported with pop-up message box “Export finished”.
5. Check backup result.
Choose the record file in Export interface and click button to check it.
The Player player.exe will be exported automatically during record file export.

HIKVISION DS-7116NI-SN/P Specifications

General

Number of users	128 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	48 V
Power consumption (max)	35 W
Power consumption (typical)	6 W
Product color	White
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	205 mm
Width	255 mm
Height	45 mm
Weight	1000 g
