HIKVISION DS-7116NI-SN/P User Manual

User Manual of Network Video Recorder
24
6
GND
Ground (needs to be connected when NVR starts up).
7
HDMI Interface
HDMI video output connector.
8
VGA Output
DB9 connector for VGA output. Display local video output and menu.
9
Audio In
RCA connector for voice talk input
10
Audio Out
RCA connector for audio output
11
Network Interfaces with
PoE function
Network interface for the cameras and to provide power over Ethernet.

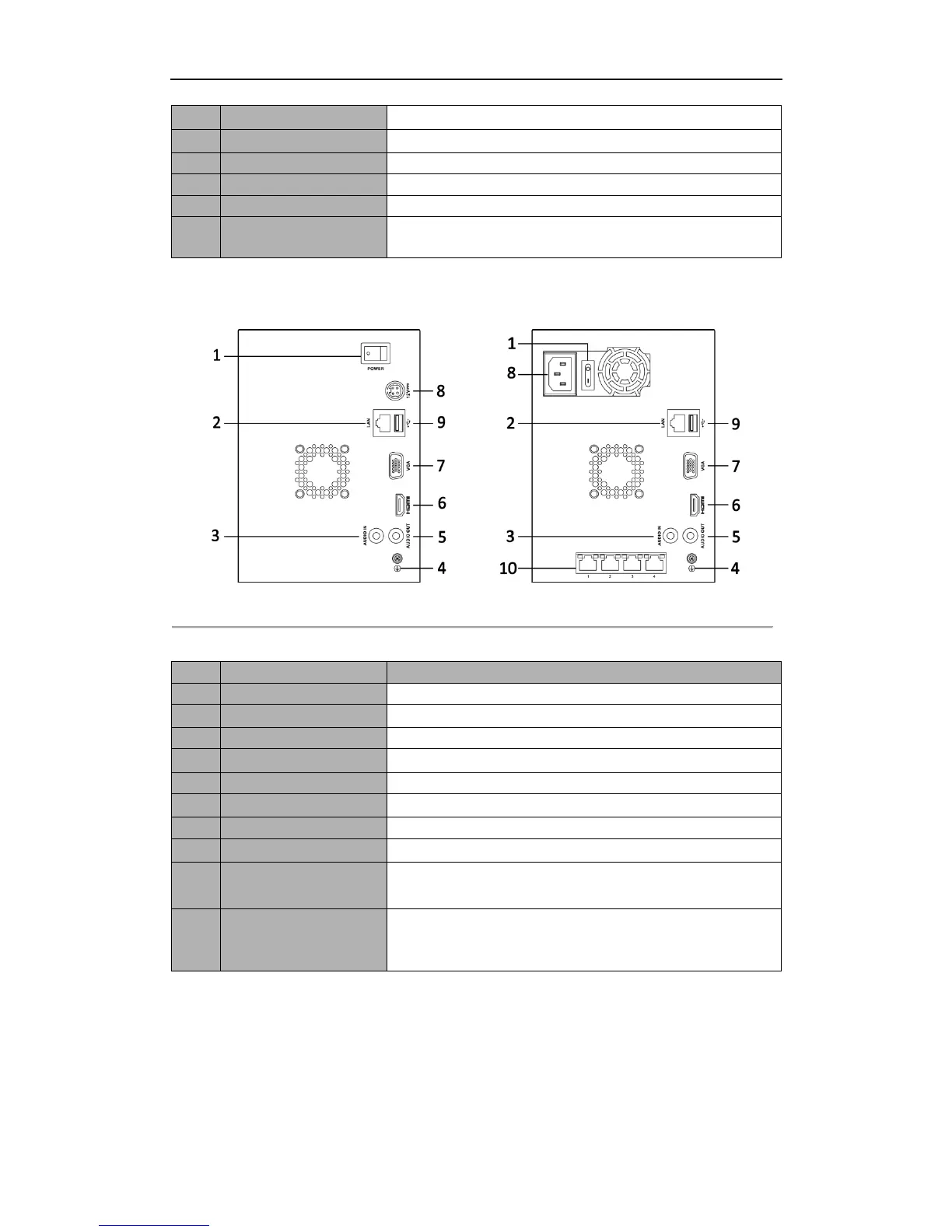

DS-7600NI-V and DS-7600NI-VP
Figure 1. 15 DS-7600NI-V and DS-7600NI-VP
Table 1. 11 Description of Rear Panel Interfaces
No.
Item
Description
1
Power Switch
Switch for turning on/off the device.
2
LAN Network Interface
Connector for LAN (Local Area Network).
3
Audio In
RCA connector for voice talk input
4
GND
Ground (needs to be connected when NVR starts up).
5
Audio Out
RCA connector for audio output
6
HDMI Interface
HDMI video output connector.
7
VGA Output
DB9 connector for VGA output. Display local video output and menu.
8
Power Supply
100~240VAC power supply
9
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
10
Network Interfaces with
PoE function
(for DS-7600NI-VP)
Network interface for the cameras and to provide power over Ethernet.

HIKVISION DS-7116NI-SN/P Specifications

General

Number of users	128 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	48 V
Power consumption (max)	35 W
Power consumption (typical)	6 W
Product color	White
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	205 mm
Width	255 mm
Height	45 mm
Weight	1000 g
