HIKVISION DS-7116NI-SN/P User Manual

User Manual of Network Video Recorder
152

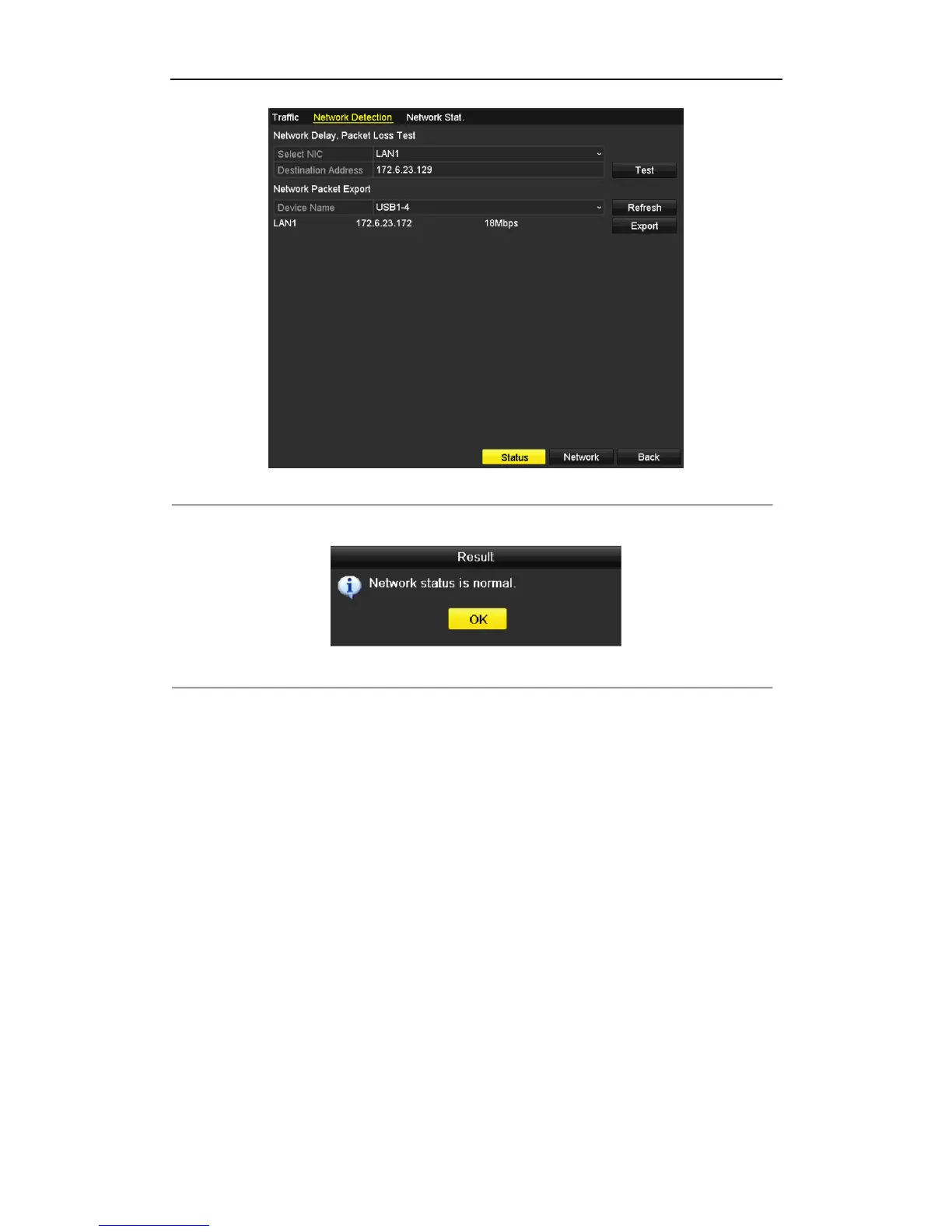

Figure 9. 34 Network Status Checking
If the network is normal the following message box pops out.
Figure 9. 35 Network status checking result
If the message box pops out with other information instead of this one, you can click Network button to
show the quick setting interface of the network parameters.
9.4.4 Checking Network Statistics
Purpose:
You can check the network status to obtain the real-time information of NVR.
Steps:
1. Enter the Network Detection interface.
Menu>Maintenance>Net Detect
2. Choose the Network Stat. tab.

HIKVISION DS-7116NI-SN/P Specifications

General

Number of users	128 user(s)
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio RCA inputs	1
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T
Power over Ethernet (PoE) ports quantity	4
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0
Output voltage	48 V
Power consumption (max)	35 W
Power consumption (typical)	6 W
Product color	White
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	205 mm
Width	255 mm
Height	45 mm
Weight	1000 g
